(10) Digital Visual Interface: DVI1
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
(11) High-Definition Multimedia Interface: HDMI
This point-to-point interface is for audio and video signals designed as a
single-cable solution for home theater and consumer electronics equipment.
NOTE! DVI and HDMI Connector can not be used at the same time.
(12) SPDIF Out connectors: SPDIF_OUT1; SPDIF_OUT2
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only
when your stereo system has digital input function. The one above is a coaxial
SPDIF_OUT connector while the one below it being optical SPDIF_OUT
connector.
2-6-2 Headers

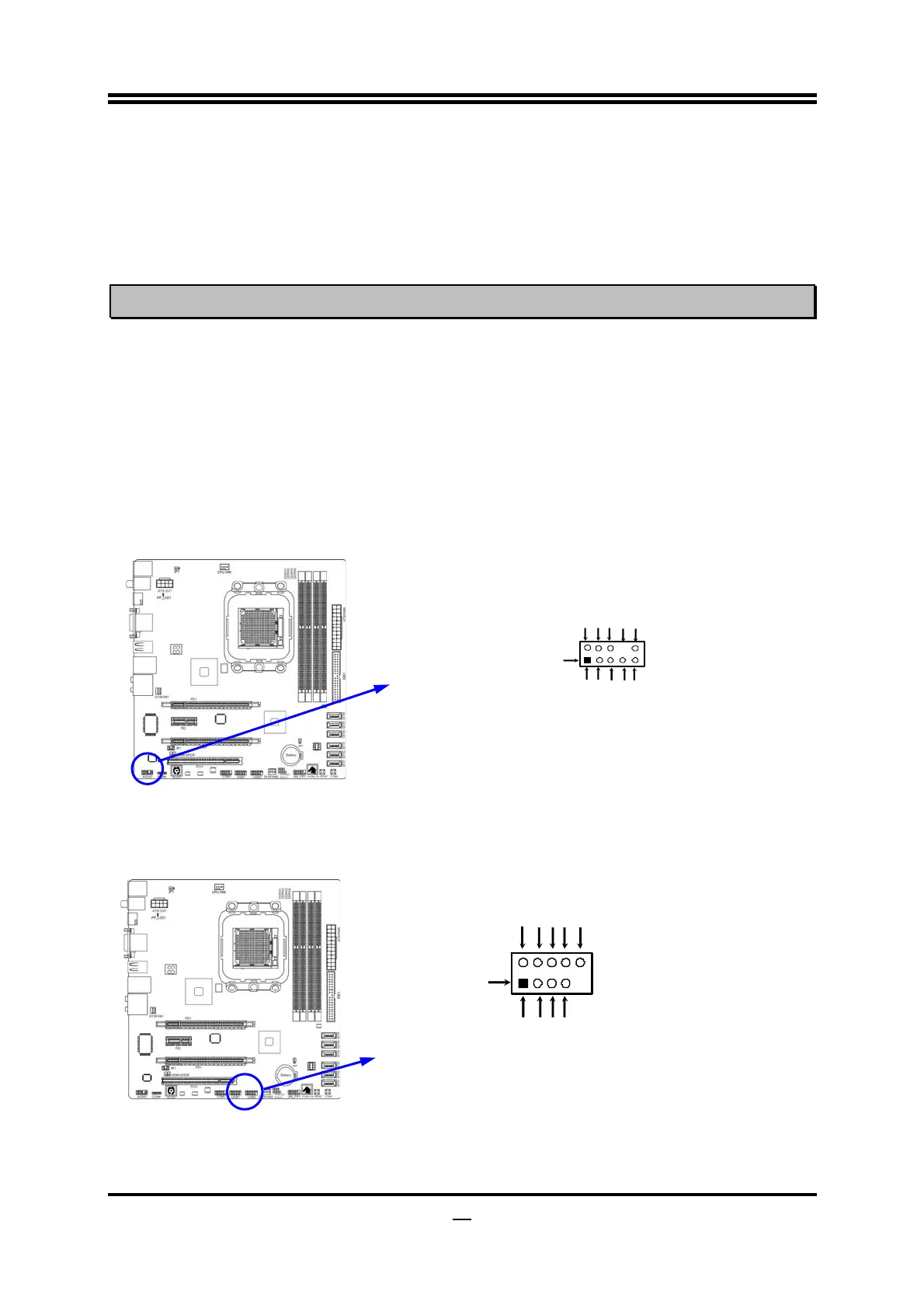

(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO1
These headers connect to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
AUDIO1
Pin 1
Lineout2-L Lineout2-R
Sense-FB
Audio-GND
LINE2-JD
Audio-JD
2
9
10
KEY
MIC2-L
MIC2-JD
MIC2-R
(2) USB Port Headers (9-pin): USB1; USB2
These headers are used for connecting the additional USB port plug. By attaching
an option USB cable, your can be provided with two additional USB plugs affixed
to the back panel.
USB Port Headers
Pin 1
USB
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
(3) Speaker connector: SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(4) Power LED: PWR LED
