15

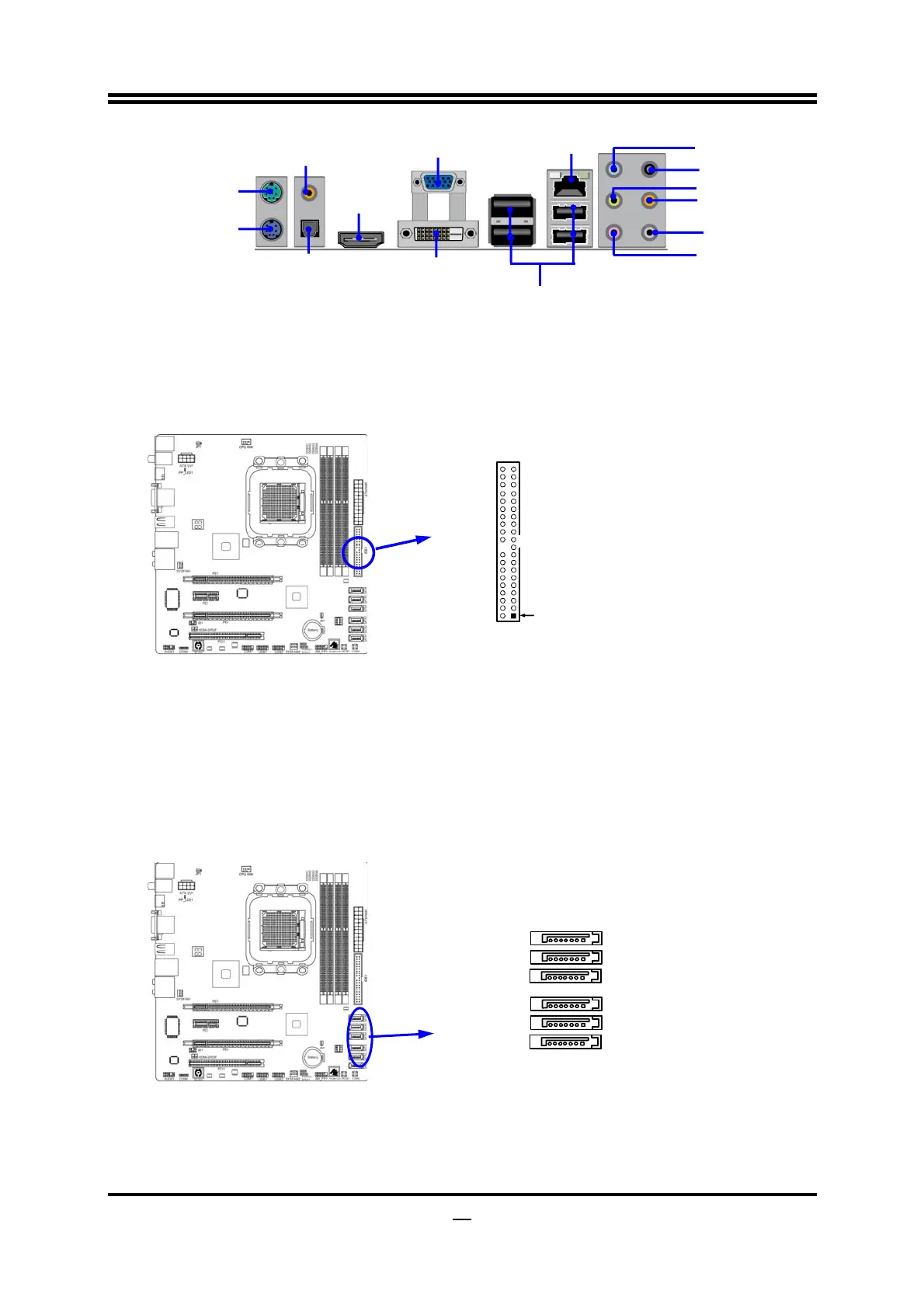

(7) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After
connecting the single plug end to motherboard, connect the two plugs at other
end to your hard disk(s). If you install two hard disks, you must configure the
second drive to Slave mode by setting its jumpers accordingly. Please refer to
the documentation of your hard disk for the jumper settings.
IDE Connector
Pin 1
IDE1
•
Two hard disks can be connected to each connector. The first HDD is referred to
as the “Master” and the second HDD is referred to as the “Slave”.
•
For performance issues, we strongly suggest you don’t install a CD-ROM or
DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system
performance on this channel may drop.
(8) Serial-ATAII Port connector: SATA1, SATA 2, SATA3, SATA4, SATA5, SATA6
This connector supports the provided Serial ATA2 IDE hard disk cable to
connecting the motherboard with serial ATAII hard disk.
SATA3
SATA1
SATA2
SATA6
SATA5
Serial ATAII Connector
SATA 4 SATA 4 SATA 4
(9) D-Sub 15-pin Connector: VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the
display devices, such as the CRT monitor, LCD monitor and so on.
RJ 45 LAN
PS/2 Mouse
PS/2 Keyboard
RS-OUT
Line-OUT
CS-OUT
SS-OUT
MIC-IN
DVI Connector
Line-IN
HDMI
Connector
Optical SPDIF_OUT
Coaxial SPDIF_OUT
USB Connectors
VGA Connector
To Next Page
