14
direction is wrong it is hard to fit in and if you make the connection by force if is
possible.

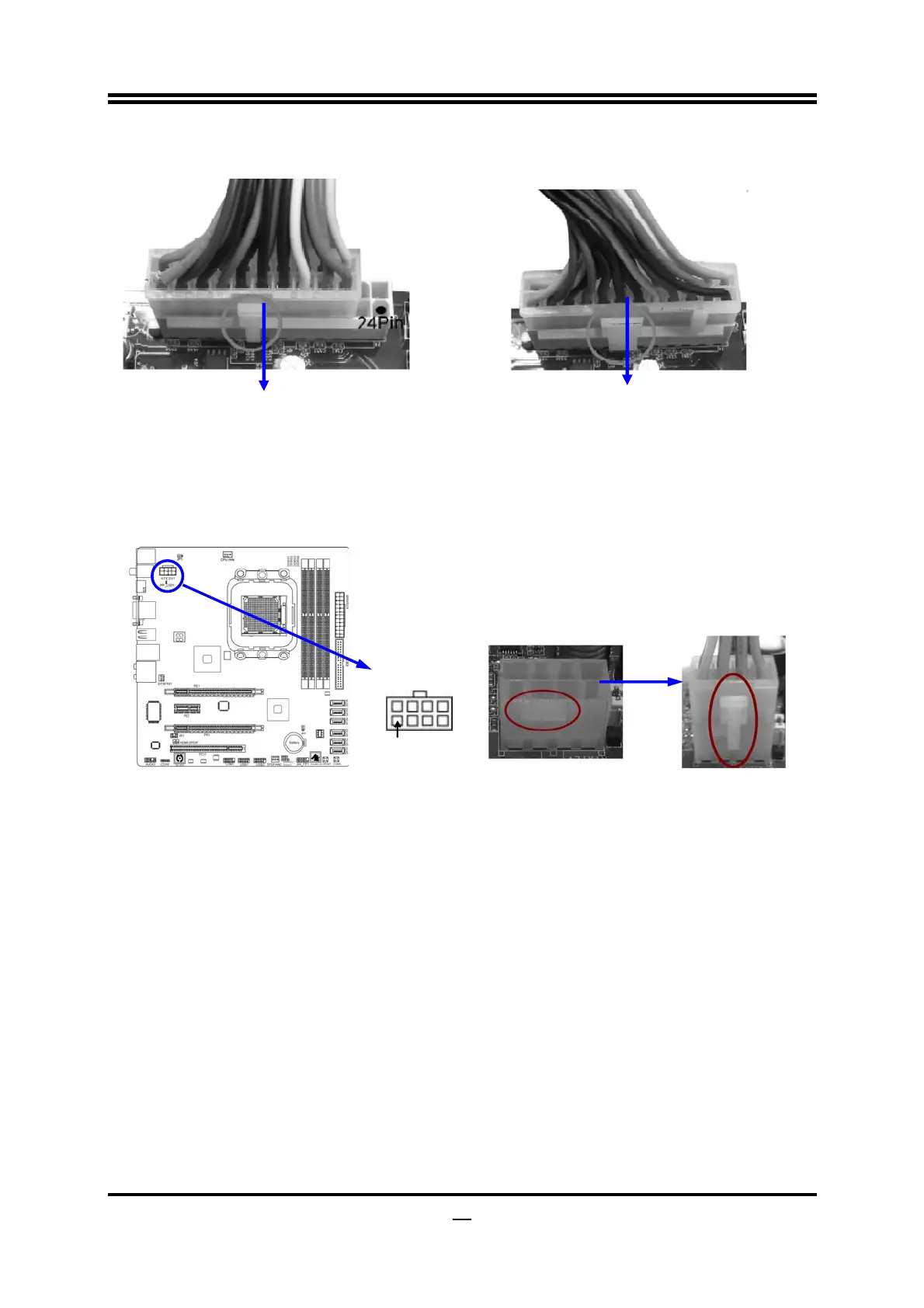

Figure1：20-pin power plug Figure 2：24-pin power plug
（
2
）
ATX 12V Power Connector (8-pin block): ATX12V
This is a new defined 8-pins connector that usually comes with ATX Power
Supply. The ATX Power Supply which fully supports Socket AM2+ processor
must including this connector for support extra 12V voltage to maintain system
power consumption. Without this connector might cause system unstable
because the power supply can not provide sufficient current for system.
Pin 1
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: CN5/ UL1 for USB from USB-B1, UL1
The connectors are 4-pin connector that connects USB devices to the system
board.
(5) LAN Port connector: RJ-45 LAN from UL1
The connector is standard RJ45 connector for Network. It supports
10M/100Mb/1000Mb s data transfer rate
(6) Audio Line-In, Lin-Out, MIC, RS-Out, CS-Out
，
SS-Out connector: J1
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-IN, MIC, RS-Out,
CS-Out
，
SS-Out audio connections.
Line-in : (BLUE)
Audio input to sound chip
Line-out : (GREEN)
Audio output to speaker
MIC : (PINK)
Microphone Connector
RS-OUT : (BLACK)
Rear-Surround audio output
CS-OUT : (ORANGE)
Center/ Subwoofer audio output
SS-OUT: (GRAY)
Side-Surround audio output
