AMD FirePro W7000 User Manual

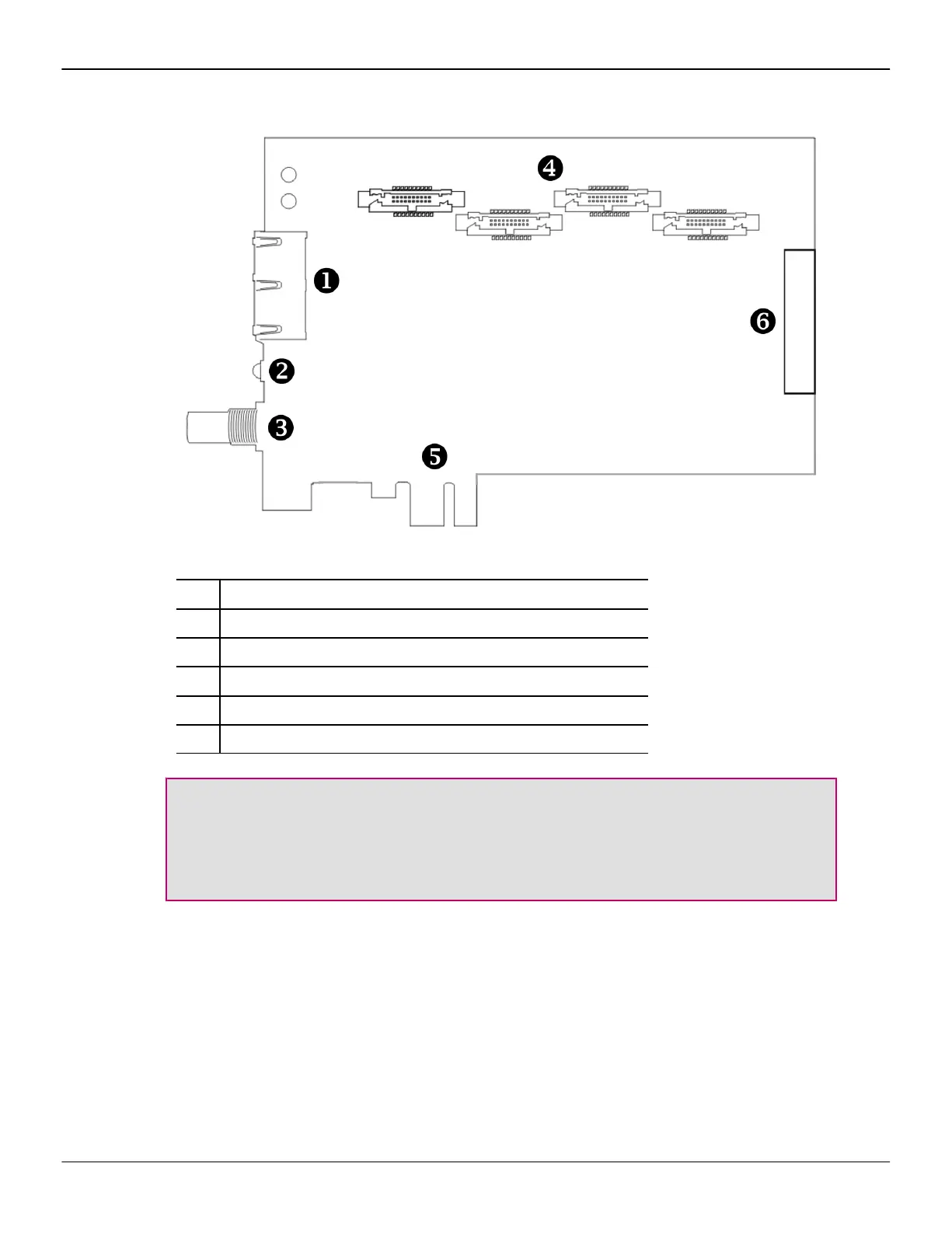

Figure 6–1 ATI FirePro S400 Side View
1 Two RJ-45 Connections for Framelock
2 LED Indicator Light
3 BNC Connection for External Synchronization
4 Four Synchronization Module-to-GPU Connections
5 Physical Mounting (Unpowered)
6 SATA Power Connection
Important: Please note the following:
•
The RJ-45 connections are not ethernet connections.
•
The BNC connection should not be connected to a cable distribution system (or
equivalent).
6.1.2.2 Genlock
Genlock is an example case of output locking.
Genlock refers to the ability to synchronize the pixel scanning of a GPU’s display(s) to
a synchronization signal that is generated outside the computer that the GPU is in. This
ensures that video output sources from multiple video output devices (such as
workstations, cameras, or video recorders) are combined or switched properly.
Without proper synchronization, switching between sources may cause the picture
to jump or be lost momentarily while the receiving device tries to lock to a new signal.
Genlock is commonly used in video post-production, nonlinear editing (NLE), and
broadcast environment. Its use ensures that a workstation’s graphics output is locked
Reference 21
© 2012 Advanced Micro Devices Inc. AMD FirePro™ W7000 Graphics Accelerator

AMD FirePro W7000 Specifications

General

GPU	Pitcairn
Process Size	28 nm
Stream Processors	1280
Texture Units	80
ROPs	32
Core Clock	950 MHz
Memory Clock	1200 MHz
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	153.6 GB/s
TDP	150 W
Outputs	4x DisplayPort 1.2
Interface	PCIe 3.0 x16
Max Resolution	4096x2160
DirectX Support	11.1
OpenGL Support	4.5
OpenCL Support	1.2
Shader Model	5.0
GPU Architecture	Graphics Core Next (GCN)
