AMD FirePro W7000 User Manual

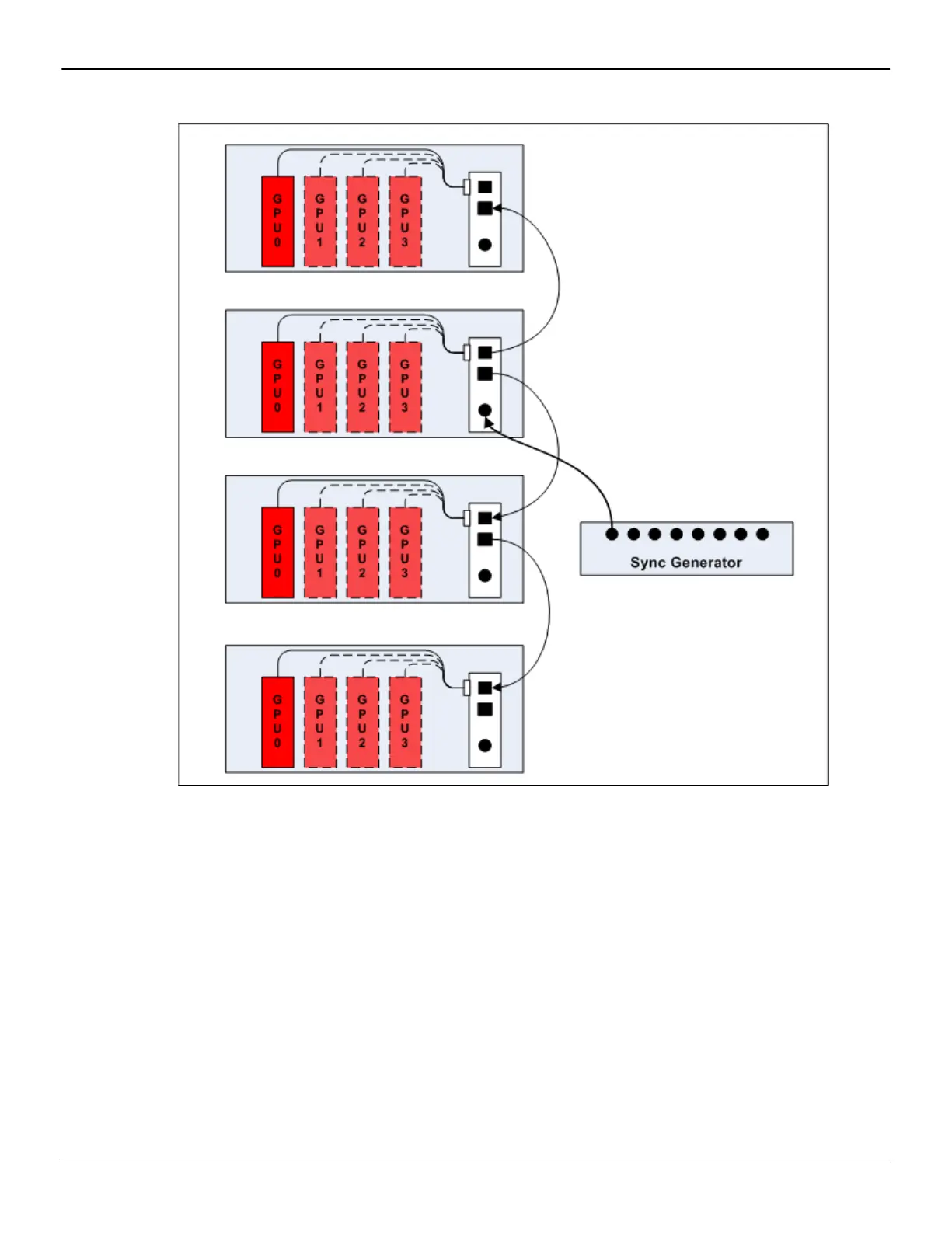

Figure 6–5 Four PCs Framelocked and Genlocked
6.1.2.3.1 Tips for Configuring Framelock
Framelock implementation is achieved using OpenGL extensions. For more
information on whether your applications support these extensions, consult your
software vendor.
Use the RJ-45 connections on the sync module to configure framelock across multiple
computers. For framelock to be activated, all displays participating in a framelock
configuration must be configured as active timing clients (through BNC/house sync or
RJ-45).
For more information on synchronization features, see http://ati.amd.com/products/
workstation/synchronization.html.
6.1.3 Hydravision
The Hydravision tab on the Workstation aspect of the Control Center application
provides a number of display options.
Reference 25
© 2012 Advanced Micro Devices Inc. AMD FirePro™ W7000 Graphics Accelerator

AMD FirePro W7000 Specifications

General

GPU	Pitcairn
Process Size	28 nm
Stream Processors	1280
Texture Units	80
ROPs	32
Core Clock	950 MHz
Memory Clock	1200 MHz
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	153.6 GB/s
TDP	150 W
Outputs	4x DisplayPort 1.2
Interface	PCIe 3.0 x16
Max Resolution	4096x2160
DirectX Support	11.1
OpenGL Support	4.5
OpenCL Support	1.2
Shader Model	5.0
GPU Architecture	Graphics Core Next (GCN)
