Ametek 5000 User Manual

18 | 5000 Single-Point Moisture Analyzer

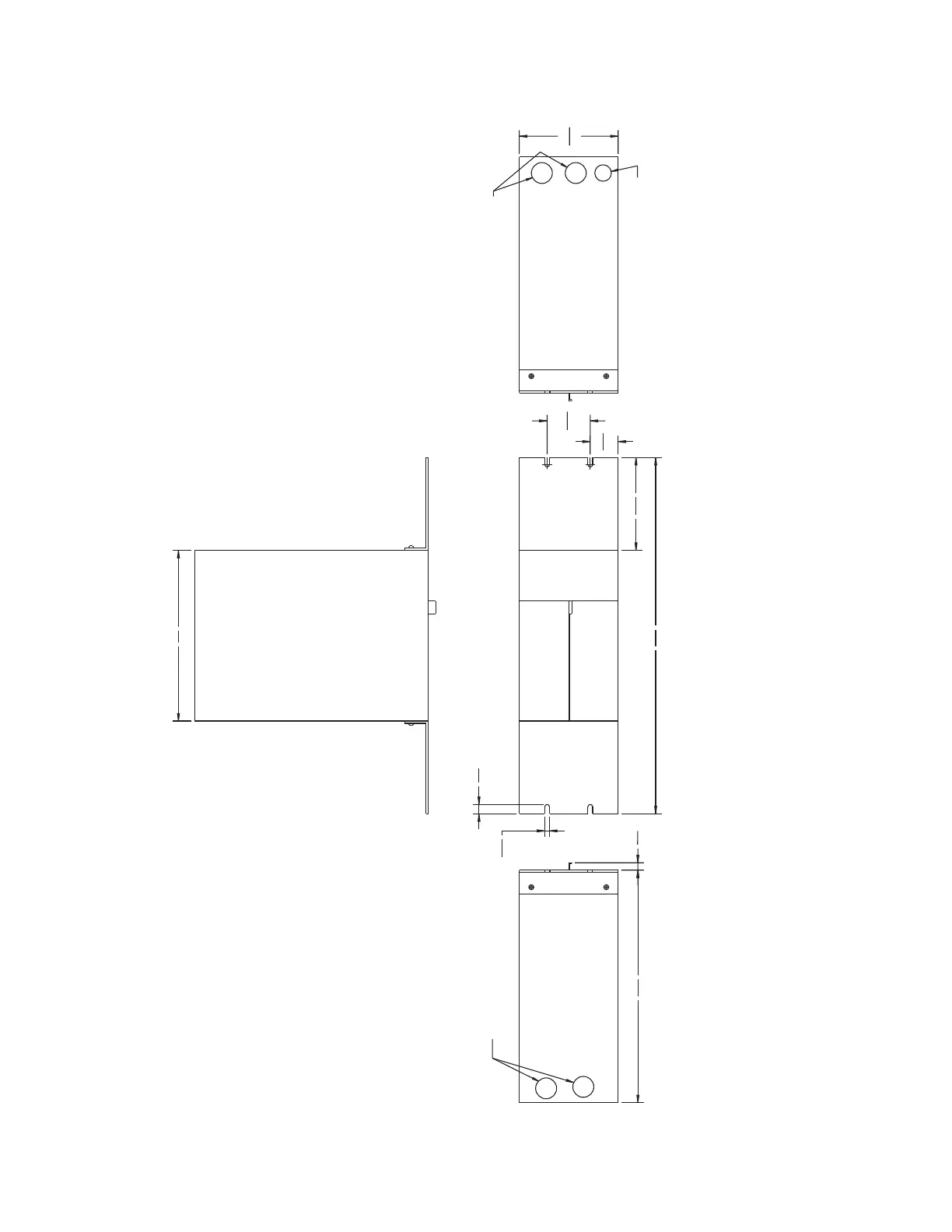

Figure 3b.
19 inch (~48.26 cm) rack Mount Model
5000 controller.
(5.25)
133
(4.95)
126
(1.48)
38
(2.25)
57
(0.4)
10
(12.6)
320
(0.5)
13
(0.25)
6
(9.1)
231
(19.0)
483
HIGH UNITS 3 DIN
ARE IN INCHES.
1. XXX DIMENSIONS ARE IN MILLIMETERS, (XXX) DIMENSIONS
NOTES:
3/4" CONDUIT HOLES FOR
1/2" CONDUIT HOLE FOR
3/4" CONDUIT HOLES FOR
POWER
VALVE
SIGNAL I/O
ALARM
SIGNAL I/O
TYP
TYP
