Quick Start Guide
9
1.8 Wiring The Sensing Element
• Cableconnectionstotheremotesensingelementare
showninFigure2-6
• Donotconnectthecabletothesensingelementuntil
after the sensing element has been installed in the
vessel and the housing has been secured

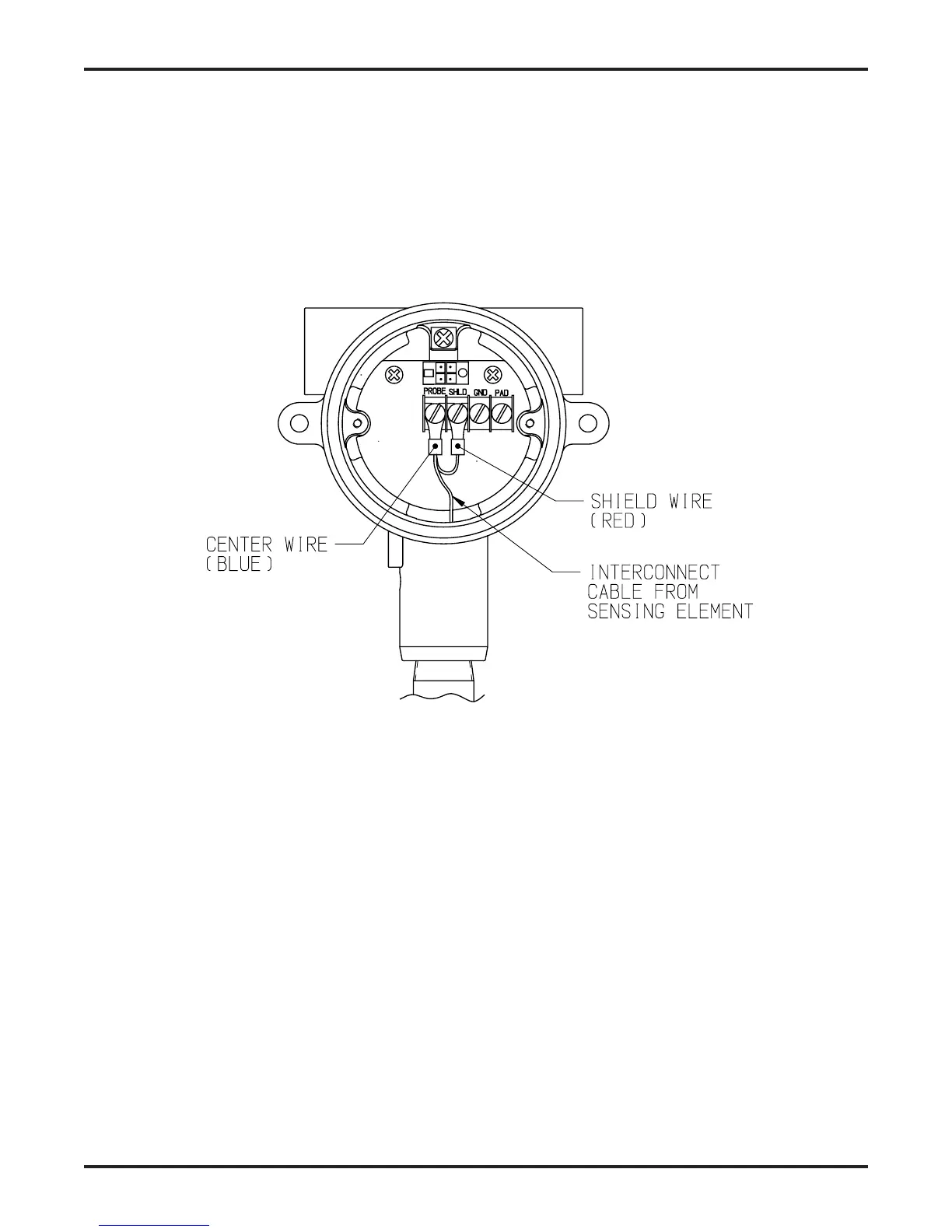

Figure 1-6
Universal IV Wiring Connections Integral Mounting
Integral System Sensing Element Wiring
