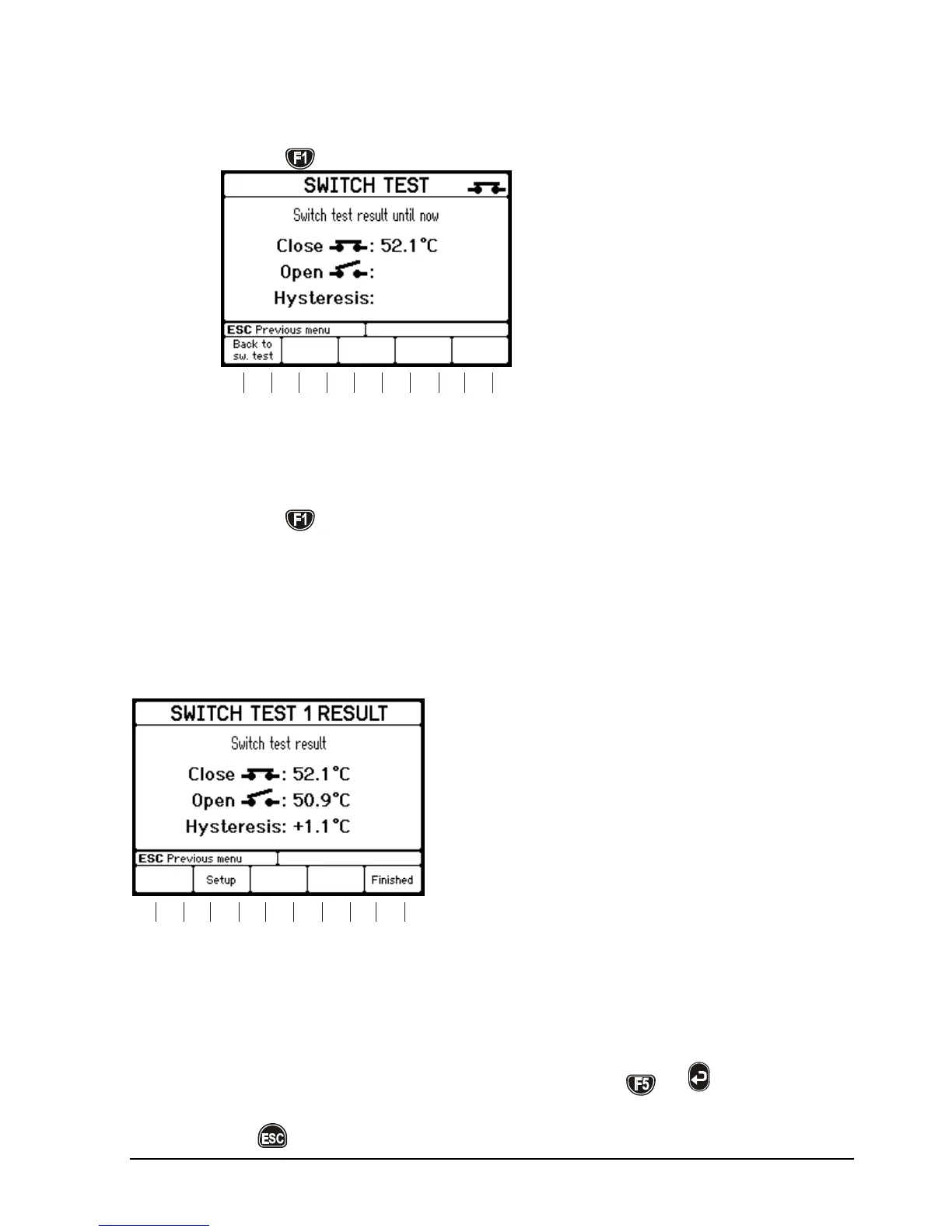

Results during a switch test
Press
to select Show result.
F3F2 F4 F5F1
This shows the results that are currently available. These
results change as the test progresses.
Press
to return to the switch test.
Finished switch test results
At the end of a switch test the results are displayed. These show the
final result of the test and are known as the finished results.
F3F2 F4 F5F1
Note: A hysteresis value is only displayed when hysteresis is selected.
If either the first or second temperature displays "No shift", hysteresis
displays "Error". For details, see chapter 6.0.
When you exit the switch test, either by pressing
or
, these
results are stored in the calibrator's memory.
By pressing
the results are not stored in the calibrator’s memory.
