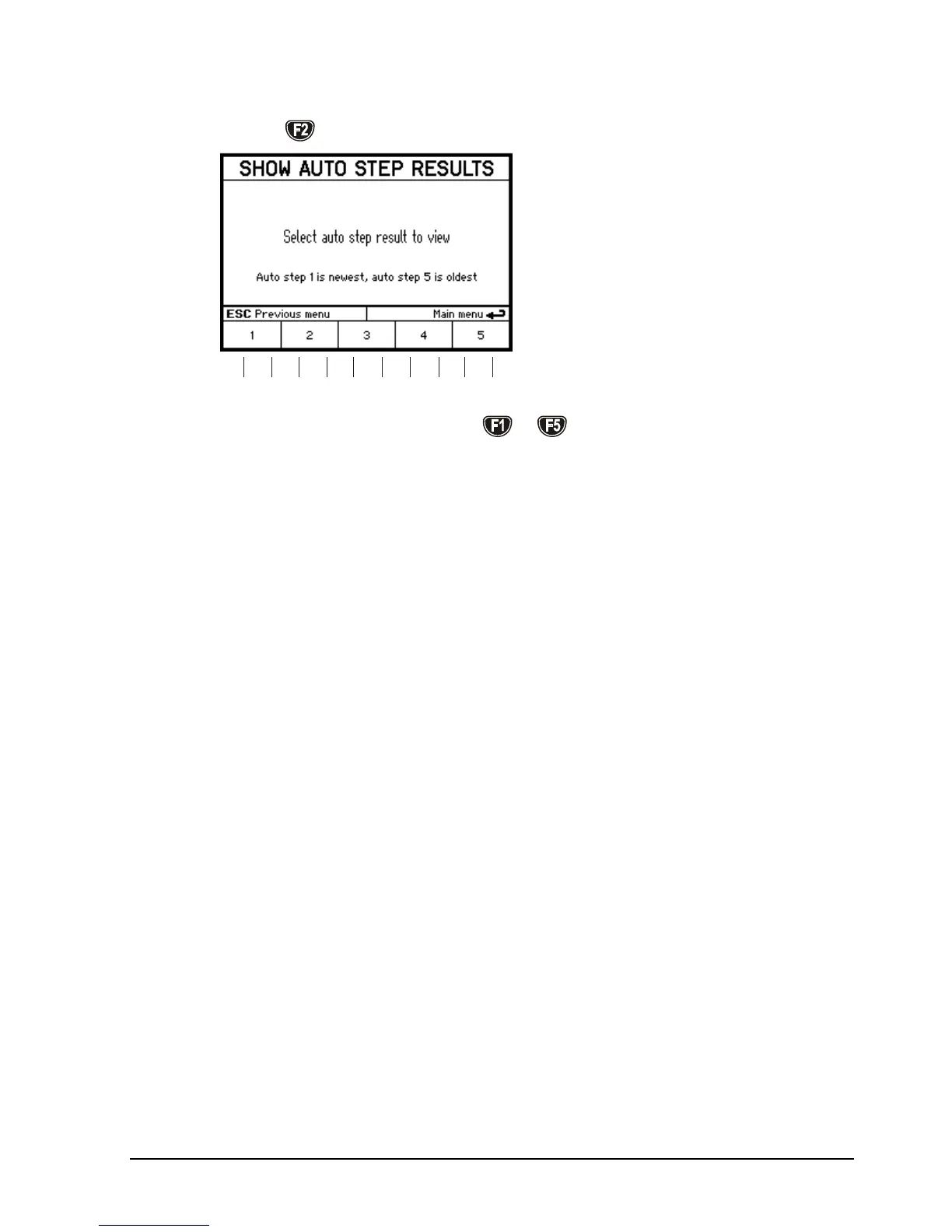

To view stored switch test results
Press
to select Show results.
F3
F2
F4
F5
F1
Press a function soft key (
–
) to select one of the last
five Auto step tests stored in the calibrator.
49
51
Table of Contents
Default Chapter
2
About this Manual
2
Table of Contents
3
1 Introduction
5
2 Safety Instructions
7
3 Setting up the Calibrator
13
Receipt of the Calibrator
13
Preparing the Dry-Block Calibrator
16
When Setting up the Dry-Block Calibrator, You Must
17
Choice of Insertion Tube
19
Inserting the Sensors
20
Preparing the Liquid Bath Calibrator (ATC-140/250 Only)
22
When Setting up the Liquid Bath Calibrator, You Must
23
Selection of Fluids
27
Handling of Lids
28
Inserting the Sensors
29
4 Operating the Calibrator
30
Keyboard, Display and Standard Connections
30
Input Module (B Versions Only)
33
Display Readouts
34
Main Screen Temperature Values
35
Stability of Temperature Values
35
SET Temperature Menu
36
Calibration Menu
36
Running a Calibration
37
Showing Calibration Results
40
Displaying Calibration Information
41
Switch Test Menu
42
Running a Switch Test
44
Showing Switch Test Results
45
Auto Step Menu
47
Running an Auto Step Calibration
48
Auto Step Test Results
49
Setup Menu
51
Loading a Setup
51
Saving a Setup
52
Adjusting the Display Contrast
52
Altering Temperature Display Settings
52
Setting the Sensor Input Parameters (B Versions Only)
55
Altering Stability Criteria
58
Selecting the Stirrer Speed (ATC-140/250 A/B Only)
59
Setting the Access Code
59
Resetting the Calibrator Setup to Factory Defaults
60
About the Calibrator
61
Simulation or Training
62
5 After Use
63
Storing and Transporting the Calibrator
63
Transporting the Dry-Block Calibrator
65
Transporting the Liquid Bath Calibrator
65
Emptying the Well (Liquidbaths Only)
66
6 Replacing the Main Fuses
67
Returning the Calibrator for Service
68
7 Maintenance
70
Cleaning
70
Adjusting and Calibrating the Instrument
72
Introduction to Ametrim-ATC Software
72
Installing the Ametrim-ATC Software
73
Connecting the PC and the Calibrator
73
Starting the Ametrim-ATC Software
73
Temperature Adjustment
75
Input Adjustment (B Versions Only)
80
Reference Sensor
85
Managing DTI Sensor Coefficients
87
Setup Printer
88
8 Technical Specifications
89
9 List of Accessories
121
