AMETEK CTS H-Field Test
Operating Manual V 1.20 13 / 37
2.
Test Setup

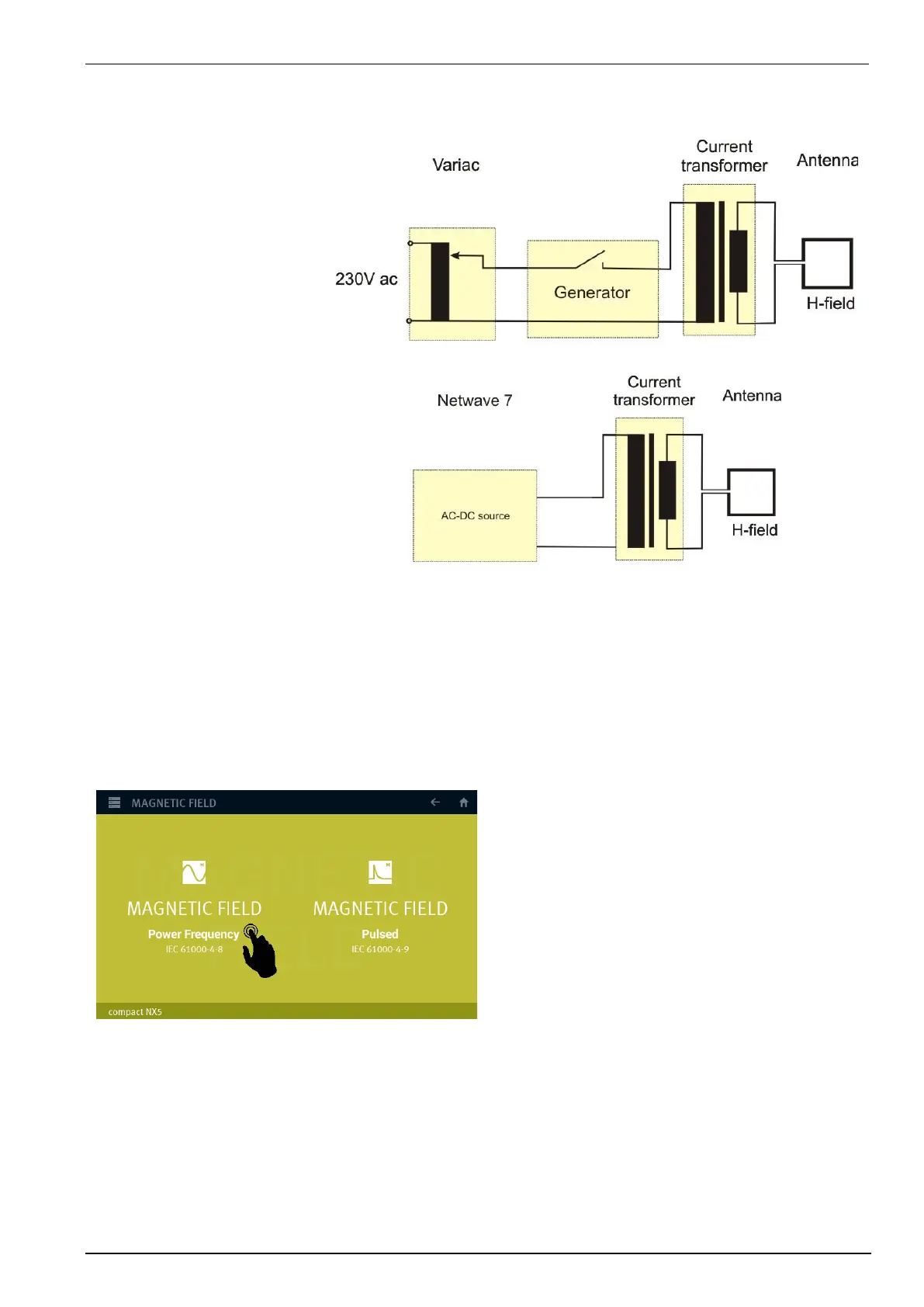

Possible test setups for H-field tests
Motorvariac and compact NX /
NSG 30x0A
The generator controls the
motorvariac via the 0-10 V
analog signal. The selected
voltage will generate the current
in the antenna loop.
From app.sw ver 6.3 you can
choose whether the variac is
connected to a rack. In this
case the setup changes,
please see chapter 2.1.3 (MFT
30) and 2.1.4 (MFT 100) for
more details. This option is
available for compact NX
only.
AC / DC source Netwave 7
The programmable AC/DC
source directly generates the
voltage and frequency. Various
frequencies are the advantage
using a programmable power
supply.
2.1.
IEC 61000-4-8 50/60 Hz magnetic field with compact NX5/NX7
Main Menu Magnetic Field separated to 

Frequency to perform tests according IEC 61000-4-8.
