Ametek MFC 1000.1

AMETEK CTS H-Field Test
Operating Manual V 1.20 4 / 37
1.
Model Overview
1.1.
Generators
To realize the different test procedures the following AMETEK CTS generators are required:
IEC 61000-4-8
NetWave7 preferred ac source
compact NX 5/7 series preferred test generator
NSG 30x0A series preferred test generator
UCS 500N5/7 series
PFS 500 or PFS 503 with restriction possible
IEC 61000-4-9
compact NX 5/7 series preferred test generator
NSG 30x0A series preferred test generator
UCS 500N5/7 series
UCS 500 series
VCS 500
IEC 61000-4-10
OSC 500N series

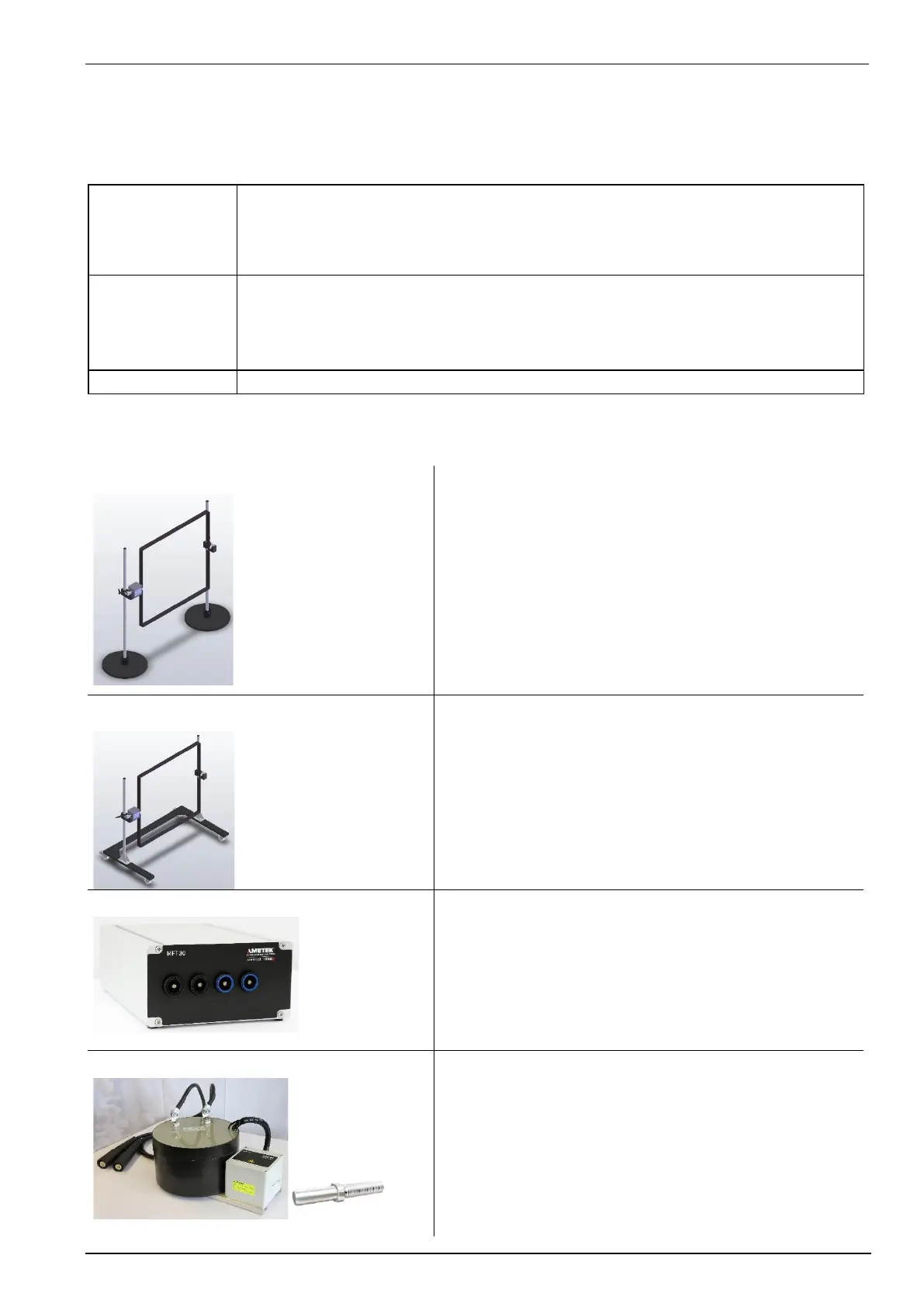

Additional equipment for magnetic field testing
Magnetic field antenna MFC 1000.1
Rectangular antenna single turn
1m x1m square
Double stand on feets
Magnetic field antenna MFC 1000
Rectangular antenna single turn
1m x1m square
Double stand on casters with brakes
Current transformer MFT 30
Current transformer for the range of 30A/m
Current transformer MFT 100
Plug 14mm
Current transformer for the range of 80A/m to 1000A/m
For application of magnetic fields higher than 600A/m using
a motor variac NX1 or VAR 3005A-S16, a mains voltage of
230V is necessary. Mains with 115V needs an external
booster transformer 115V to 230V 10kVA.
If the MFT100 is delivered to an existing previous model
MS100, two additional plugs are delivered for connect to
MS100.
