AMETEK CTS H-Field Test
Operating Manual V 1.20 26 / 37
Extended Tests
The operator can select between various preprogrammed test routines which helps to accelerate testing and
which are very helpful especially during design.
User test routines
The user defined library where all created magnetic field tests are stored.
Easy Link
Link files library created during the actual session. The user can easy save a test into the Easy Link library. After
switch off the Equipment all Easy Link tests are deleted. Us
For magnetic field testing the antenna correction factor shall be included. The operator can enter this factor within
the setup menu under the service routine.

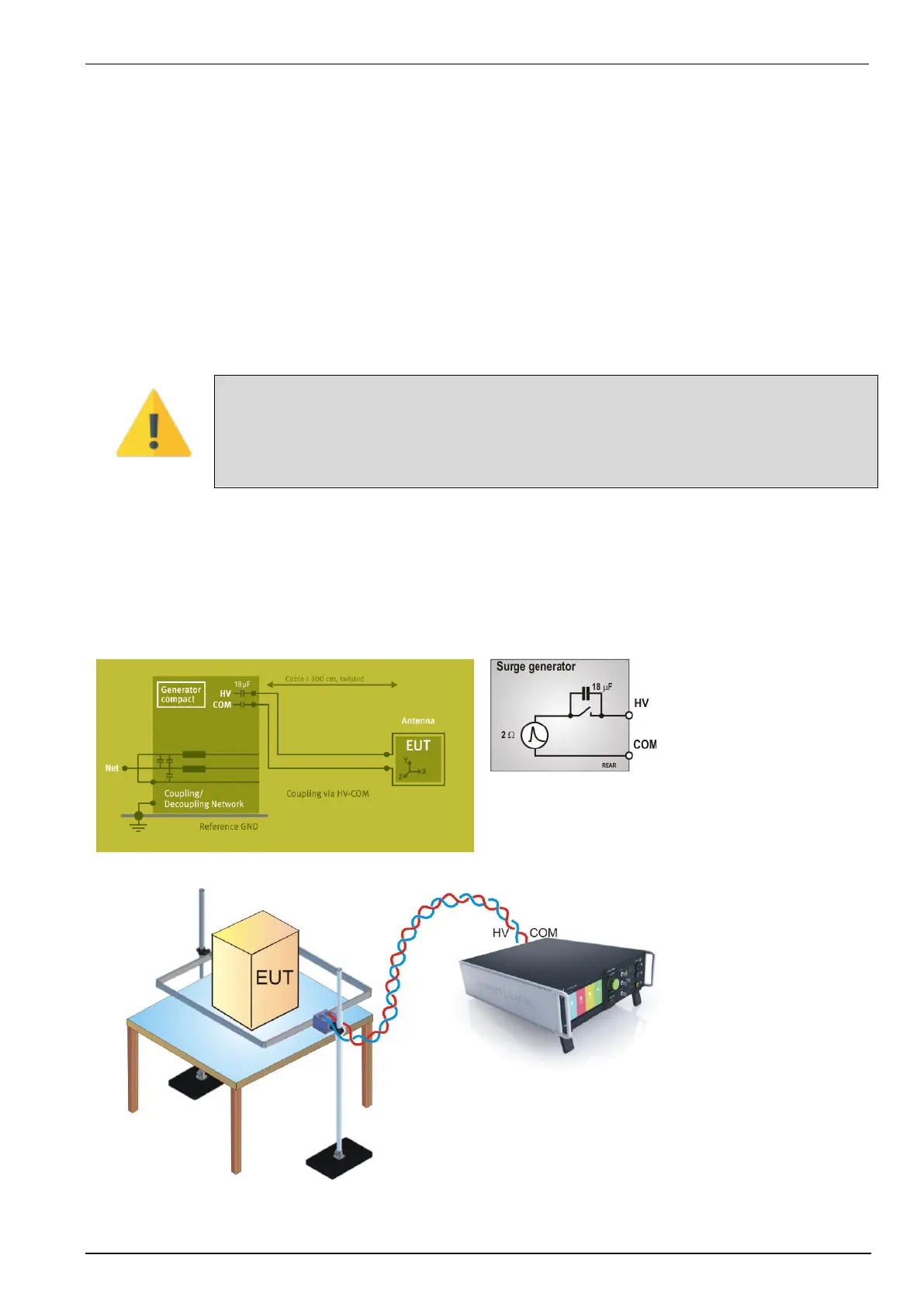

Setup pulsed magnetic field
Disconnect all power cables on the rear side at the Test supply plugs.
PF1, PF2 and N
Don’t touch the antenna during the test!
At the rear part of the generator no EUT power supply shall be connected to the sockets of PF1 or PF2. This
power supply is directly short circuited by the connected antenna after pressing Test On.
Connect the antenna with a twisted cable (length < 300cm) with the HV & COM-output at the rear side of the
generator. The standard IEC 61000-4-9 Ed2 (2016) requires mandatory an 18 µF capacitor, that is automatically
internal switched in the circuit to output HV COM:
