AMETEK CTS H-Field Test
Operating Manual V 1.20 31 / 37
2.6.
IEC 61000-4-10 Damped Magnetic Field
This part is realized with the OCS500N6/N6F generator.

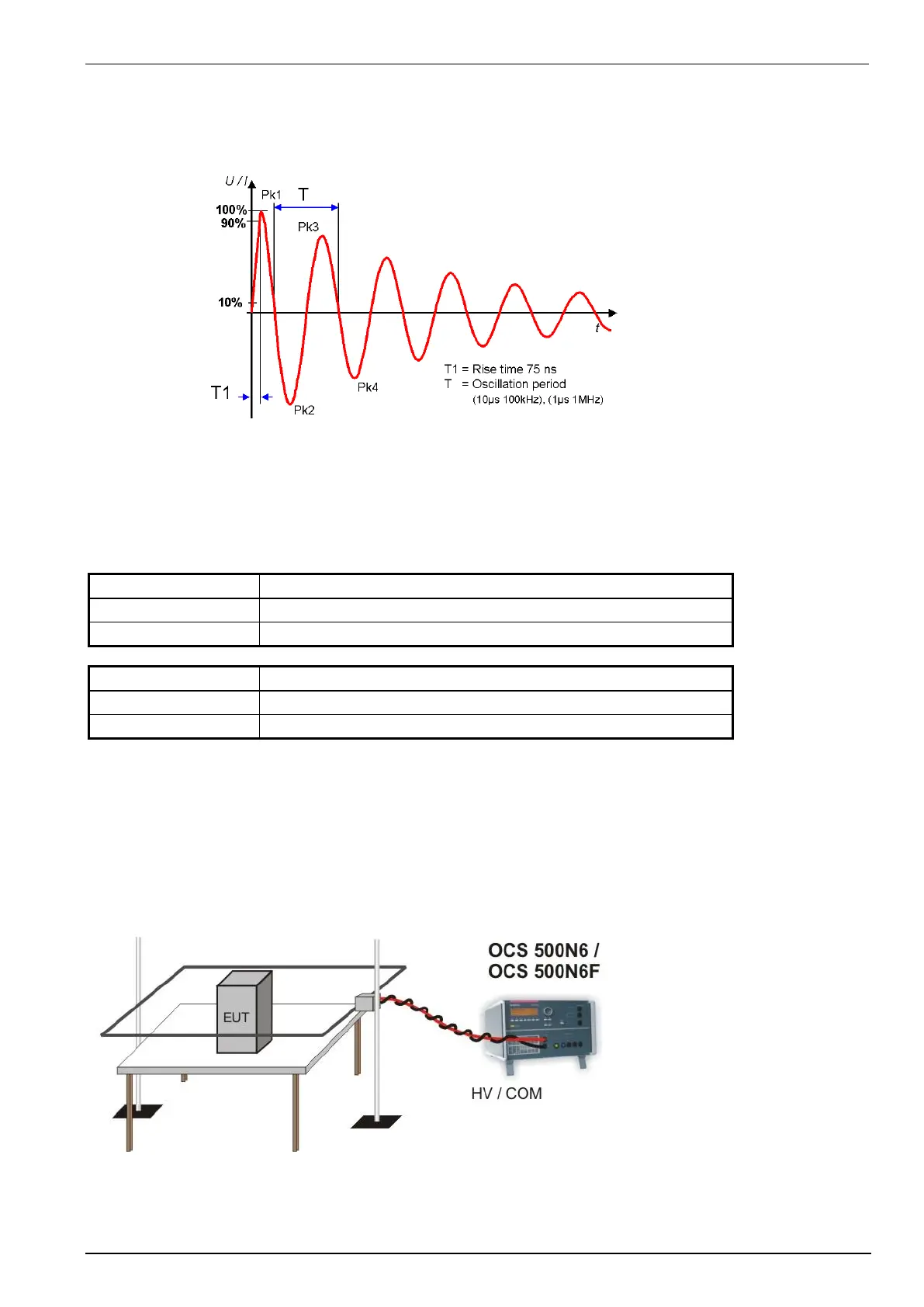

Characteristic of the generator (Damped Oscillatory Magnetic Field)
The generator is specified as per IEC 61000-4-10 and the antenna is connected to the output HV - COM
Currents as follows:
Mode
Burst mode, duration 2s with at least 40 Hz pulse rep rate
Current range
10A ... 100A (setting with respect to the coil factor)
Current wave shape
100kHz damped oscillatory as per IEC 61000-4-10
Mode
Burst mode, duration 2s with at least 400 Hz pulse rep rate
Current range
10A ... 100A (setting with respect to the coil factor)
Current wave shape
1MHz damped oscillatory as per IEC 61000-4-10
Verification of the generator characteristic
The output current shall be verified with the generator connected to the standard induction coil. The connection
shall be realized by twisted conductors or coaxial cable of up to 3 m length and suitable cross-section.
The short circuit output current shall be measured. The parameters to be verified are:
- Current peak value
- Damping
- Oscillation frequency
Test Setup
