IEC 61000-4-9 Pulsed magnetic field with NSG 3040A/3060A
The menu offers different test routines for pulsed magnetic field testing.

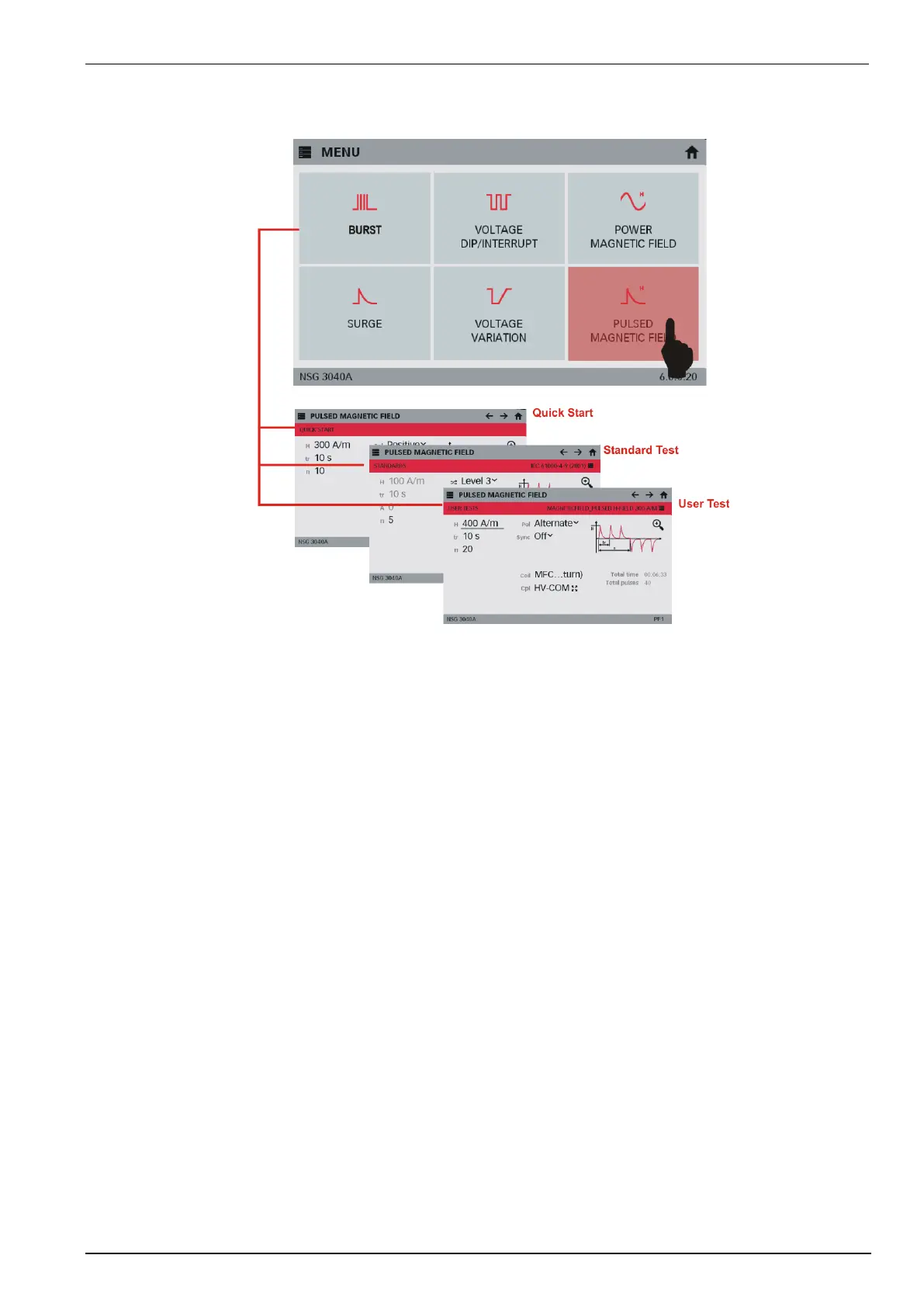

The Magnetic Field menu offers different test routines for pulsed magnetic testing.
Quick Start
Easy and fast online-operation with the pulsed magnetic surge phenomenon. In this menu the user can operate
all test manually with online change the most parameters during a test.
Standard
The operator can select between various preprogrammed test routines as required in different standards
The standard library is filtered according the EUT setting (AC, DC etc.)
User test routines
The user defined library where all created magnetic field tests are stored.
For magnetic field testing the antenna correction factor shall be included. The operator can enter this factor within
the setup menu under the service routine.
