AMETEK CTS H-Field Test
Operating Manual V 1.20 24 / 37
2.3.
Verification of the generator characteristic as per IEC 61000-4-8
The output current shall be measured with the coil connected. The connection to the antenna shall be made of
drilled cables of max 3 m length and with a sufficient cross-section.
The characteristics to be verified are:
 current value in the standard inductive coils;
 field strength in all other inductive coils;
 total distortion factor in the inductive coils.
For standard inductive coils the verifications shall be carried out with a current probe and measurement
instrumentation having better than <±2 % accuracy.
For all other inductive coils the verification should be carried out with field strength meter, having an <±1dB
accuracy.
Field strenght
Current values for the
1 m x 1 m standard coil
[A/m]
I[A]
1
1.15
3
3.46
10
11.5
30
34.48
100
114.95
300
344.85
1000
1149.5

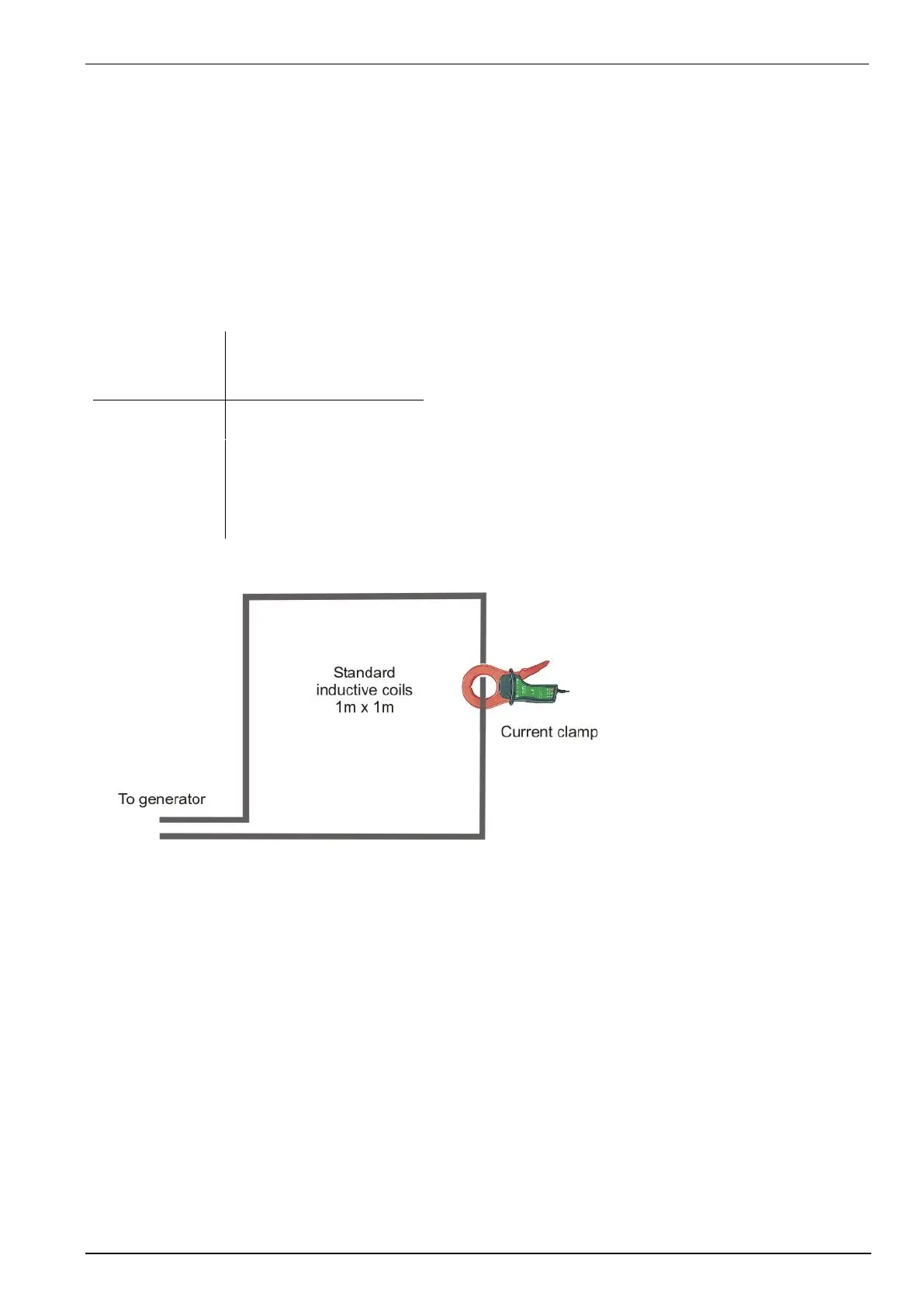

Verification setup of the standard coils
