AMETEK CTS H-Field Test
Operating Manual V 1.20 15 / 37
2.1.2.
Required device settings to perform a power frequency magnetic field test

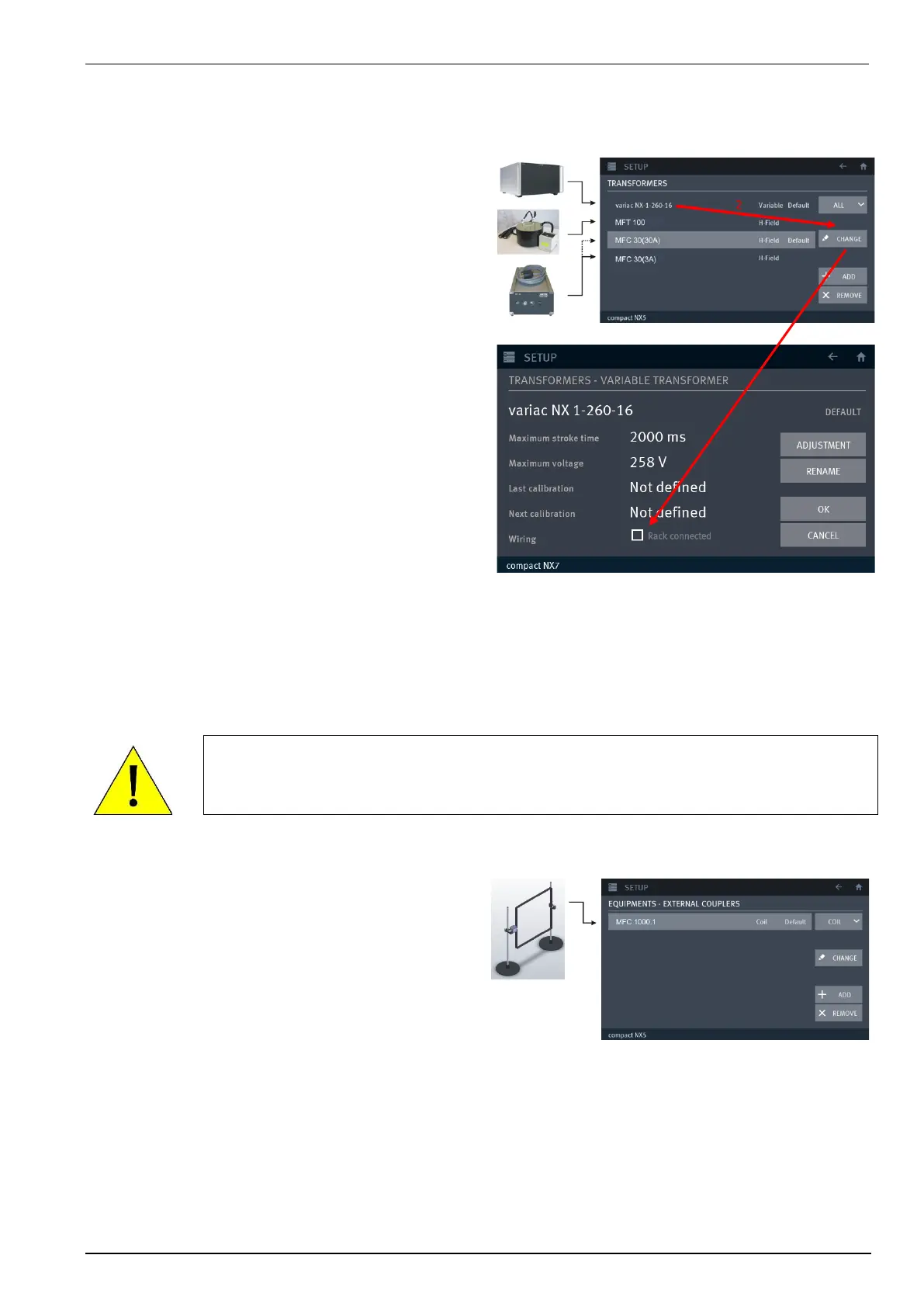

For perform a 50/60 Hz magnetic field test, the NX5 generator must be configured with the used hardware in the
menu:
Menu / SETUP / Equipment
1. Variable transformer:
- variac NX 1-260-16
- variac NX 1-260-32
2. Wiring of variac NX 1
From app.sw ver 6.3 you can choose whether the
variac is connected to a rack. To change the setup,
select the variac NX 1 (2) and then use the
CHANGE button to select the wiring.
3. Magnetic current transformer
- MFT 100 H-field 80 to 1.000 A/m
- MFT 30 (3 A range) H-field 1 to 10 A/m
- MFT 30 (30 A range) H-Field 1 to 44 A/m
The MFT 30 has two ranges and therefore the NSG generator list this current transformer
in the configuration for (3 A) and (30 A) range. Set the range switch of the MFT 30 to the
correct position before starting the test.
Menu / SETUP / EXTERNAL COUPLERS
4. Magnetic field antenna:
- MFC 1000.x
