AMETEK CTS H-Field Test
Operating Manual V 1.20 30 / 37
Caution
Only coils with 1 turn
can be used for pulsed magnetic field application.
2.5.5.
Setup pulsed magnetic field
Warning
Disconnect all power cables on the rear side at the Test supply plugs.
PF1, PF2 and N
Don’t touch the antenna during the test!
At the rear part of the generator no EUT power supply shall be connected to the sockets of PF1 or PF2. This
power supply is directly short circuited by the connected antenna after pressing Test On.

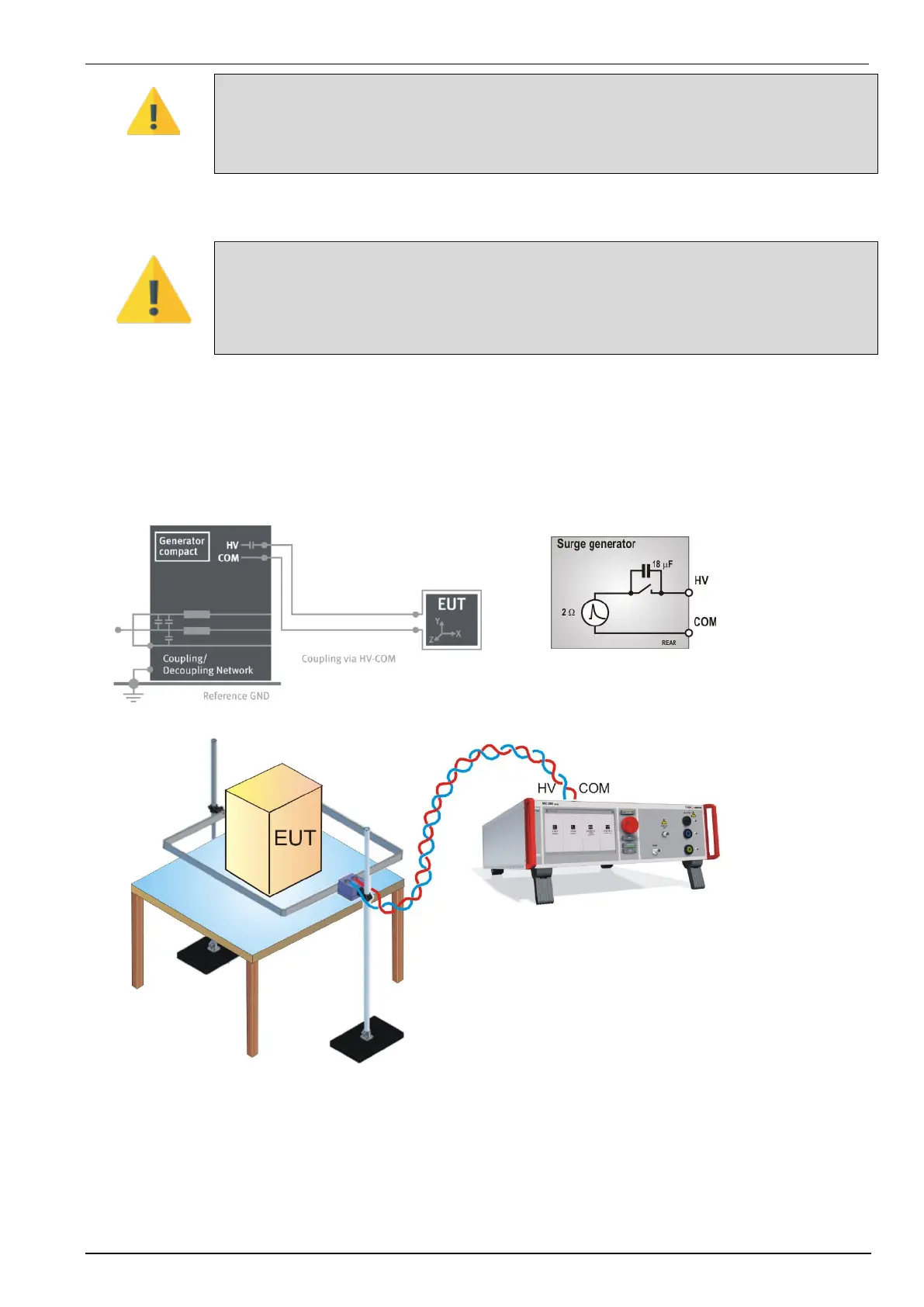

Connect the antenna with a twisted cable (length < 300cm) with the HV & COM-output at the rear side of the
generator. The standard IEC 61000-4-9 Ed2 (2016) requires mandatory an 18 µF capacitor, that is automatically
internal switched in the circuit to output HV  COM:
