AMETEK CTS H-Field Test
Operating Manual V 1.20 19 / 37

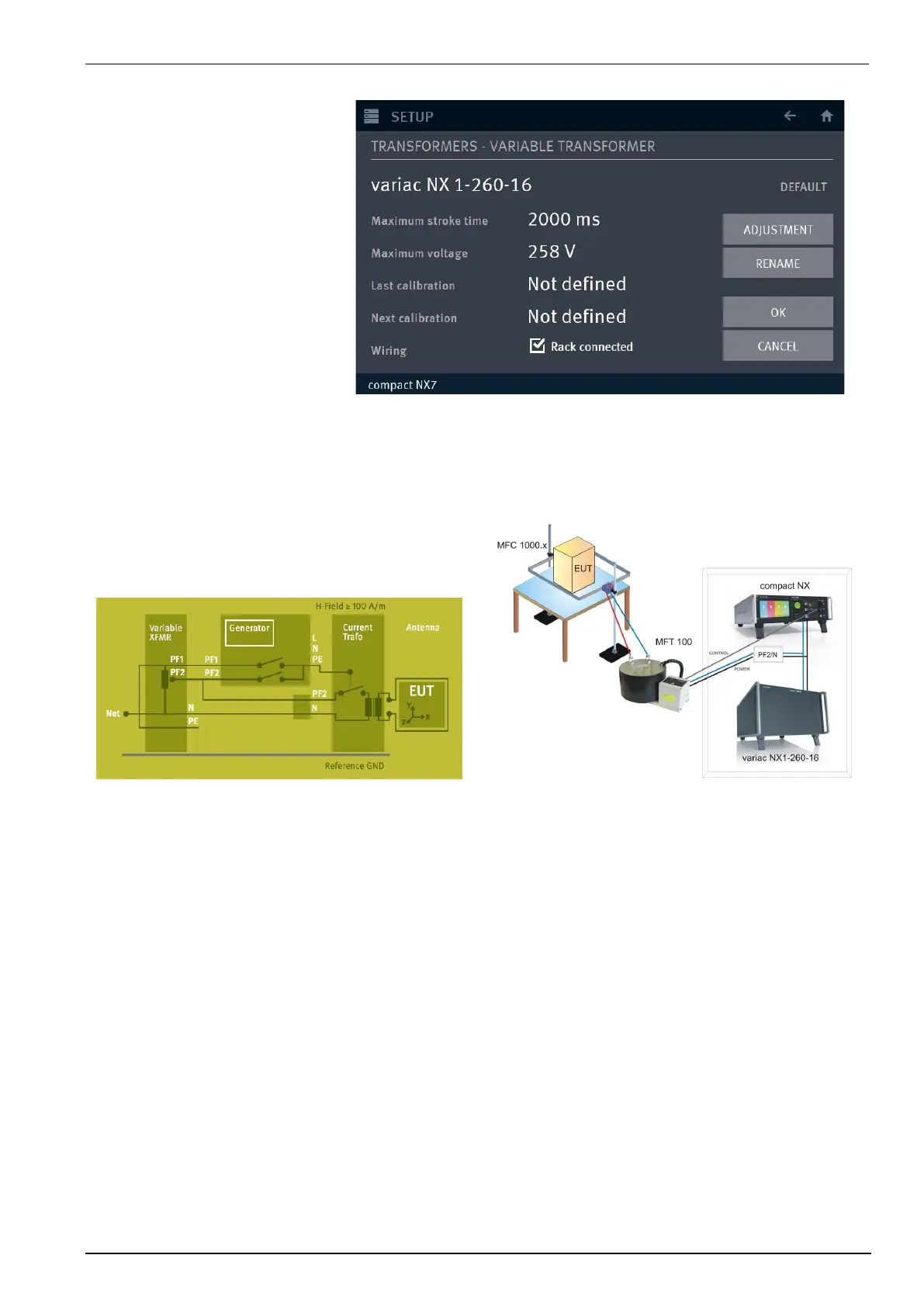

Variant 2: variac NX 1-260-xx Rack connected (MFT 100)
Enable option 
In this case the relay in the MFT 100 is switched on/off via the PF1 (compact NX) switch. The connection from
the variax NX (PF2) to the compact NX (PF2) remains and does not need to be changed. The PF2 switch in the
compact NX remains open and is not used for this test. Instead, there is another connection from the variax NX
(PF2/N) to the front panel in the rack. From there the controlled variable is fed to the MFT 100.
Schematics Test setup
Schematics and Test setup with compact NX, variac NX1-260-16, MFT 100 and MFC 1000.x
Option for required magnetic field tests as per IEC 61000-4-8
- External variable motor transformer variac NX1-260-16
- External Magnetic field antenna MFC 1000.x
- External current transformer MFT 100 to test 100 A/m (continuous) and up to 1.000 A/m (short-term)
