Ametek NetWave 3.1 User Manual

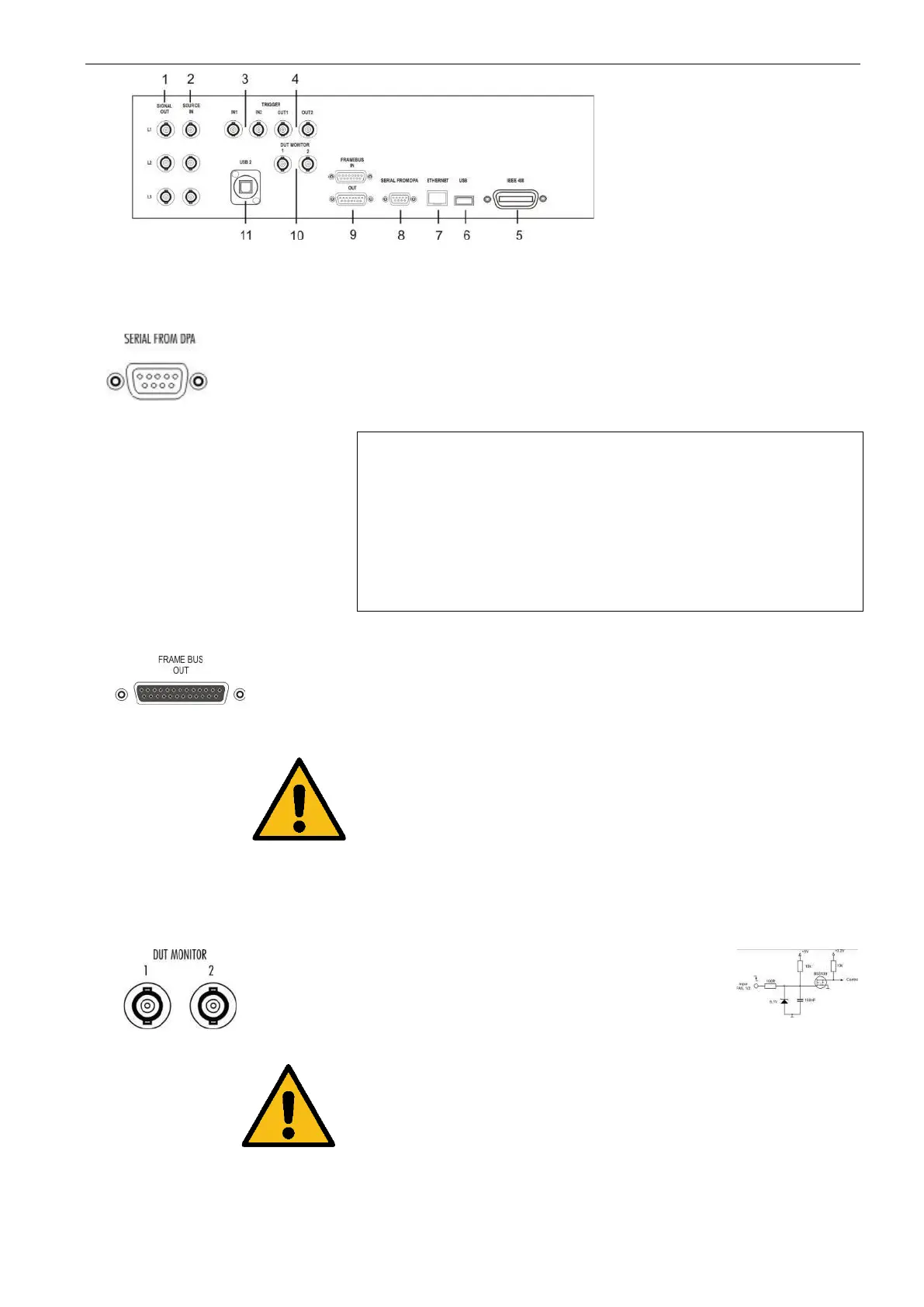

AMETEK CTs NetWave
1 Signal out (control)
2 Source in (control)
3 Trigger IN1/2
4 Trigger OUT 1/2
5 GPIB / IEEE 488 port
6 USB for data storage
7 Ethernet port
8 Serial from DPA 503
9 Framebus OUT
10 DUT monitor
11 USB 2 option measuring board
8 Serial from DPA port
RS 232 port 9 pole Sub D male connector
Control bus for remote control the NetWave AC source. The Harmonic
and Flicker analyzer DPA 500N or DPA 503 will control the NetWave
complete via the net.control software.
Pin assignment
NetWave
9- Pol SubD m
Signal
Signal
DPA
9- Pol SubD f
1
CD
----
7
2
TxD
----
RxD
3
3
RxD
----
TxD
2
4
DTR
----
6 / 8
5
GND
----
GND
5
6
DSR
----
4
7
RTS
----
1
8
CTS
----
4
9
RI
----
9
screen
screen
9 Framebus OUT
Framebus connectors.
Sub D 15 poles female
This port is used as communication and control bus
between EM Test devices.
NetWave 3-phase NetWave models the framebus is
internal (Source L3) terminated with the
Framebus Termination Part No 101732
Using an external device (AMP 200Nx.x), the
termination at the ext. device is required
10 DUT monitor
DUT monitor for any fail detection.
DUT Monitor 1:
DUT Monitor 2:
Function:
Input signal: Negative slope.
NOTE: The signal must be released to high before
you start the next wave. The test will start
and does not stop if the monitor signal is at
low level during the wave start
Settings
The DUT monitor is settable in the NetWave software
and has the following function
Disabled no function
Stop stops immediately the wave
Notify send a message to DUT Log file
