AMETEK CTs NetWave

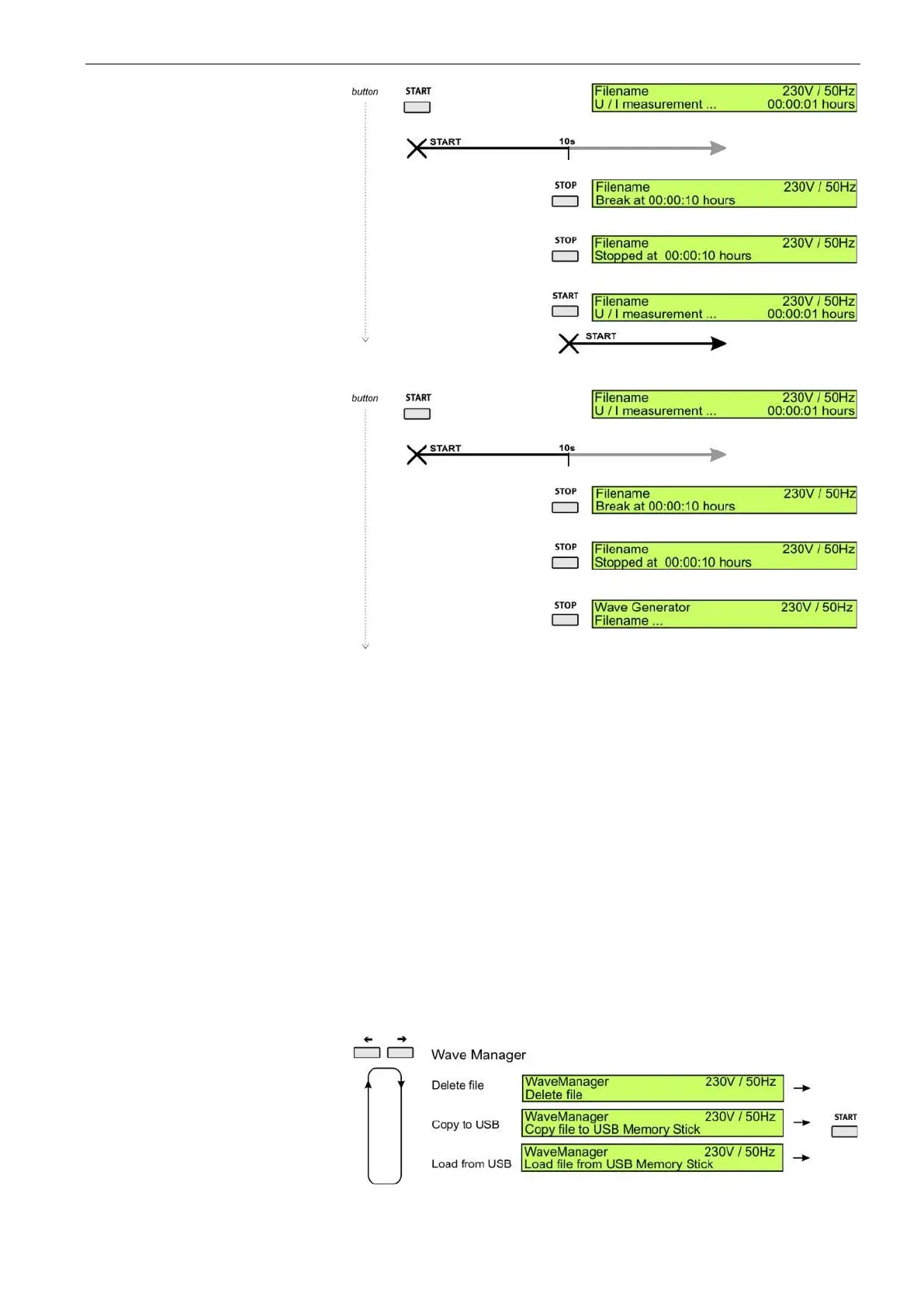

Start, Break and Restart same file
Start, Stop and
return to WaveGenerator menu
5.2.3. Menu Measurement U / I
This function shows the actual voltage and current delivered from the NetWave generator.
The measurement is taken from the internal power source measurement module
AC measurement
Range Accuracy ( Full scale )
Voltage
0-300V < 1%
Current
0-50A < 1%
DC measurement
Voltage
425V < 1%
Current
0-50A < 1%
5.2.4. Menu Wave Manager
Functions
- Copy file to USB Memory stick
- Load file from USB Memory stick
- Delete file
Function selection
