PARSTAT 4000 Hardware Manual
PARSTAT 4000 Hardware Manual 33
Interconnections
The PARSTAT 4000 and KEPCO connect to the cell (electrochemical cell, battery, etc.)
by two marked cables, 223873 for the KEPCO and 223859 for the PARSTAT 4000

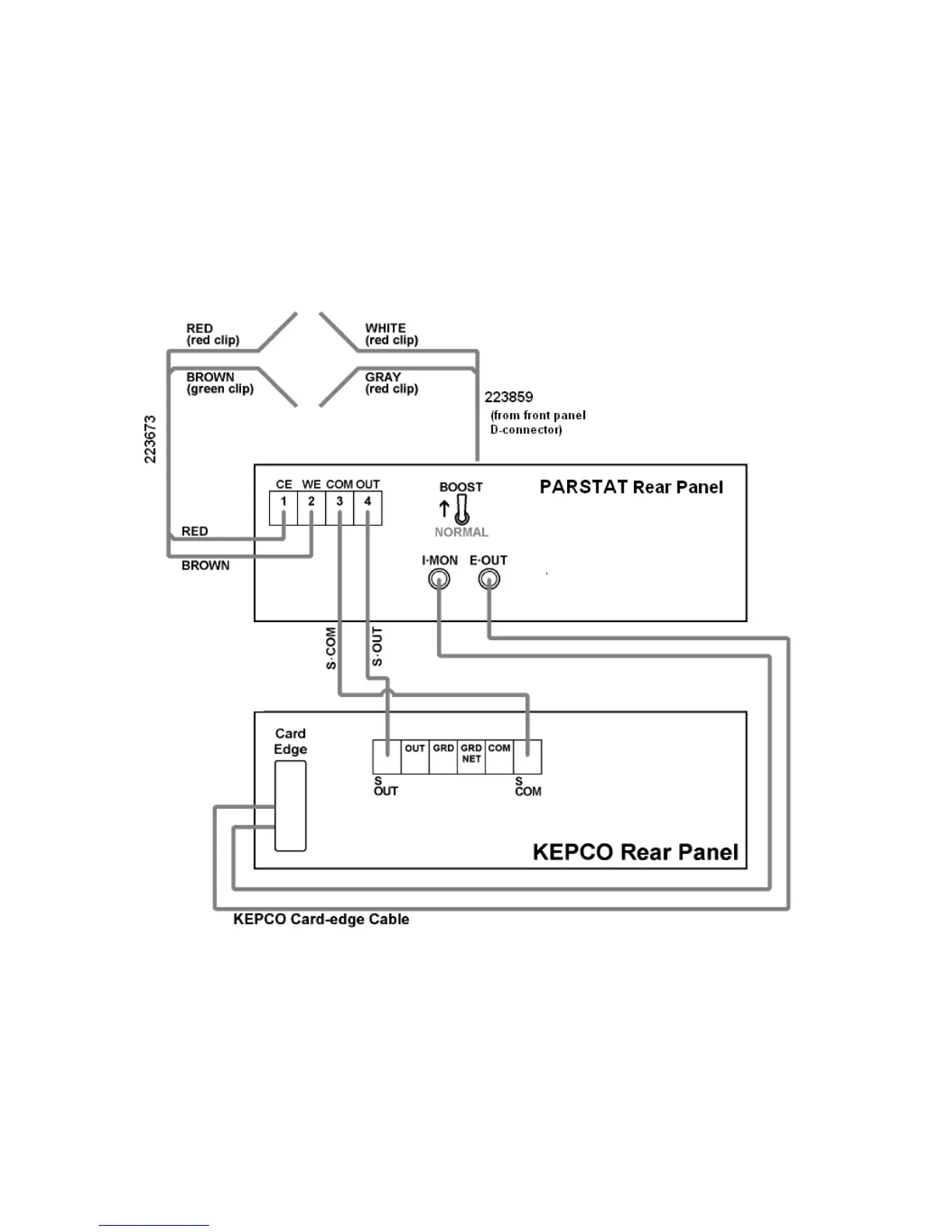

(replacing the normal cell cable used for “Normal” mode). All the interconnections for
the PARSTAT 4000 and KEPCO are shown below.
CAUTION: Make all connections with the power off.
