Ametek PARSTAT 4000 User Manual

PARSTAT 4000 Hardware Manual
PARSTAT 4000 Hardware Manual 34
KEPCO Front-Panel Setup
 The MODE switch on the front panel of the KEPCO should be set to Voltage
mode (left position).
 The Voltage CONTROL switch (red toggle on left side) should be in the OFF
(down) position.
 The Current CONTROL switch (red toggle on right side) should be in the OFF
(down) position.
 The SENSE/COMMON (black banana jacks at bottom-center) should be inter-
connected with a shorting bracket.
 The OUTPUT/SENSE (red banana jacks at bottom-center) should be inter-
connected with a shorting bracket.
External Cell Connection and Checkout

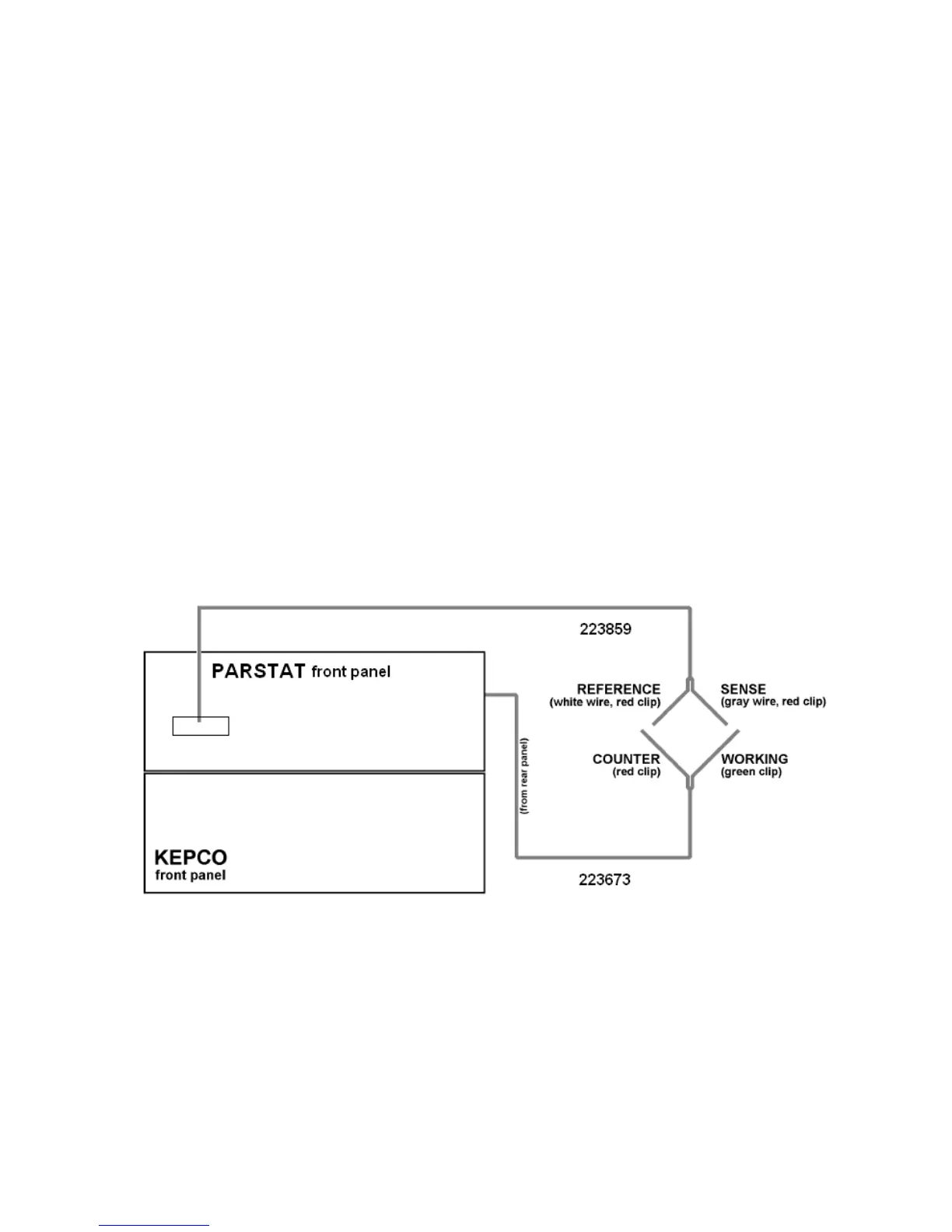

Use the cables 223859 and 223873 to connect the cell being tested.
DANGER: Dangerous and possibly lethal voltages may be present on the COUNTER
lead. Never touch the leads while mains power is supplied to the KEPCO. For more
information, see the accompanying KEPCO manual.
