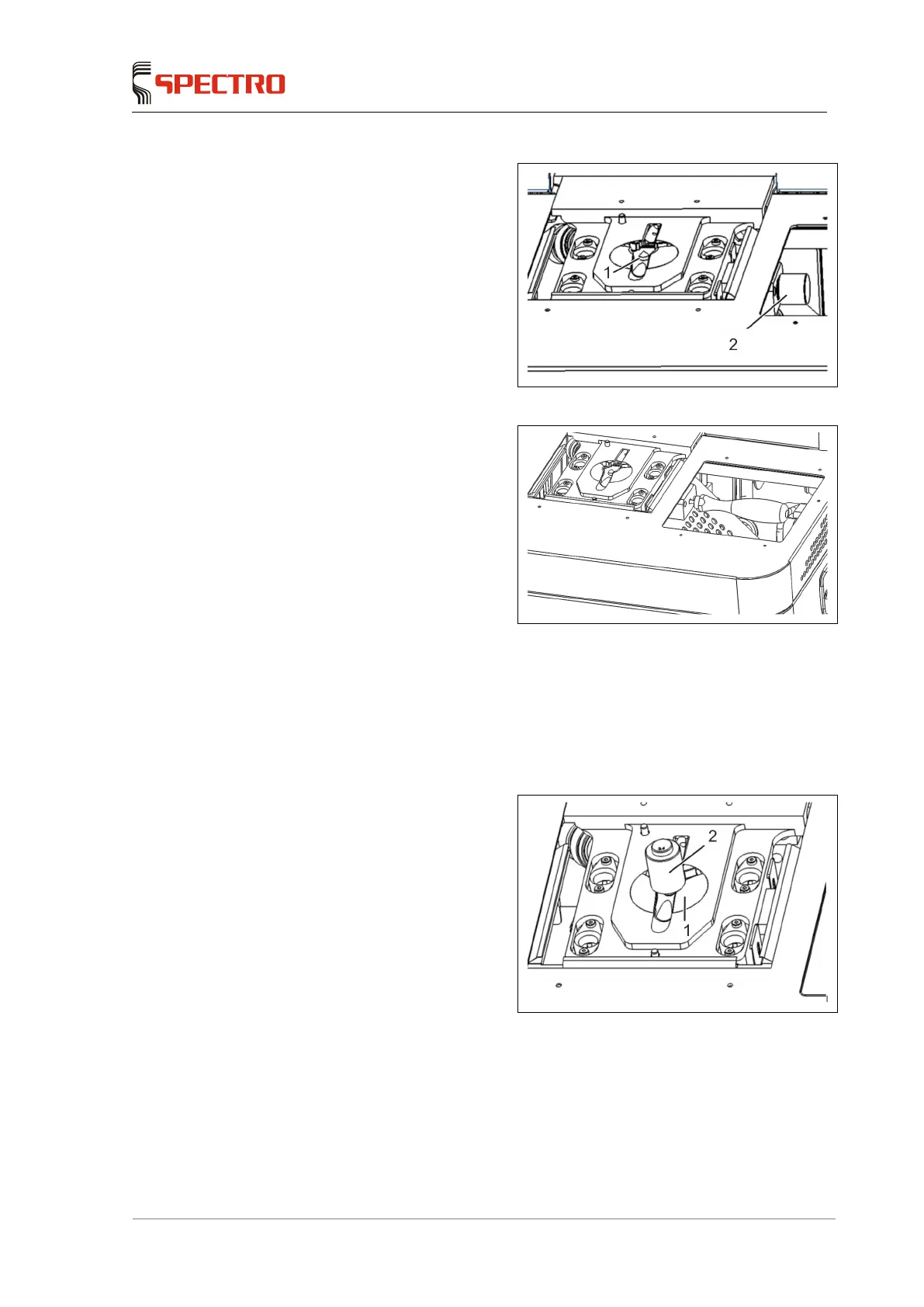

5. For removal of the electrode (1),
unscrew the sealing plug (2).
Behind the plug there is a
through hole in order to reach
the fixing screw of the electrode.
Fig. 16
6. Loosen the fixing screw of the
electrode using the Allen key
(AF 2.5) until the electrode can
be removed.
When loosening the
electrode, hold firmly on to
it. After loosening the
screw, a spring presses the
screw upward. Loosen the
screw only until the
electrode can be removed
easily.
7. Remove and clean the
electrode.
If the electrode is worn, it
must be replaced.
8. Use the setting gauge (2) in
order to remove the spark stand
insert (1). Use a dry, grease-free
cloth to clean the insert.
Fig. 18
