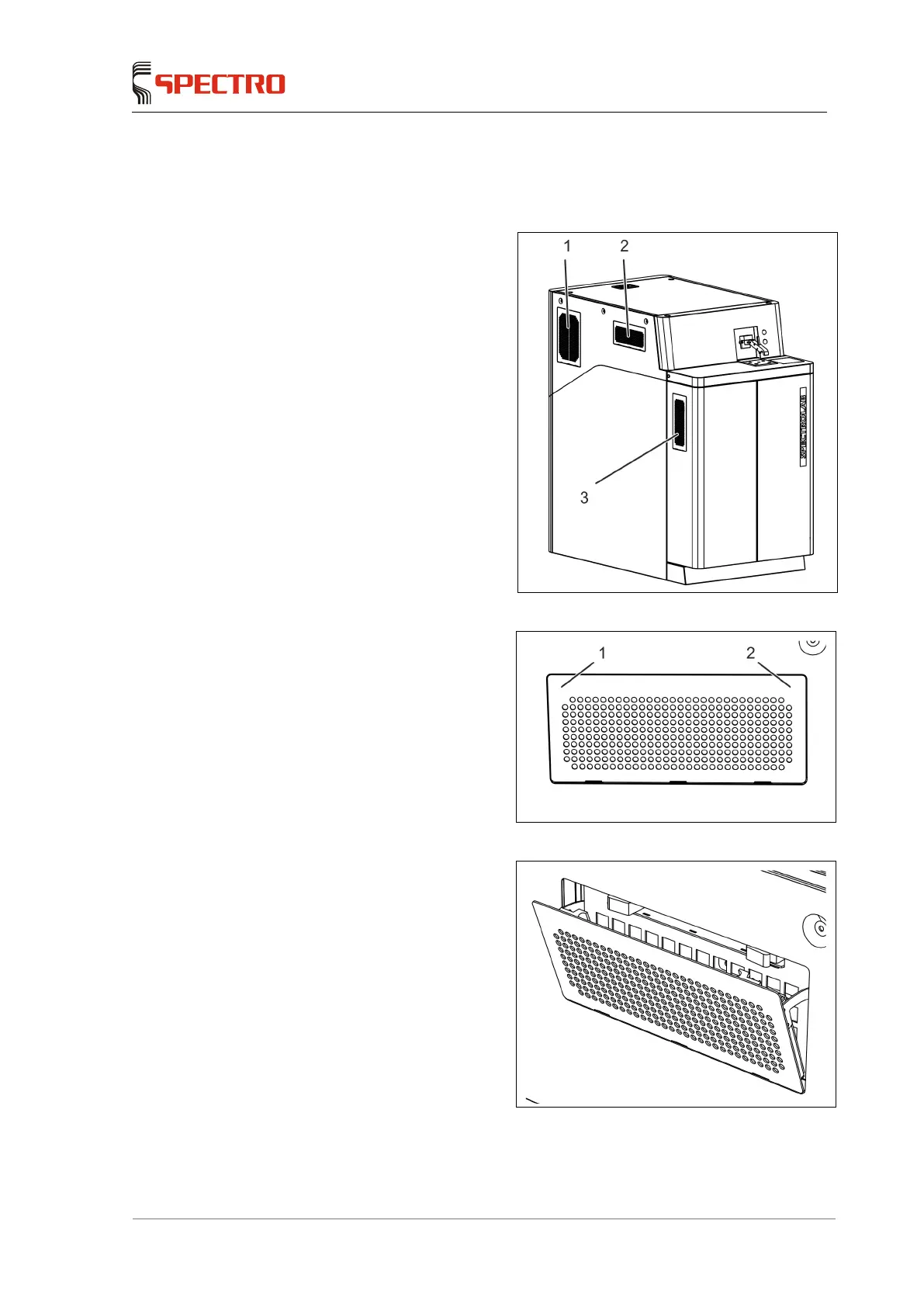

7.7 Replacing the filter mats
The SPECTROLAB LAS01 has three
openings on the left side for the fresh
air supply (cooling system (1),
electronics room (2) and plasma
generator/spark stand (3)). The filter
mats for these openings are all of the
same size, whereby two filter mats
are required for opening 1.
Fig. 35
1. Press down onto the upper left
(1) and right (2) corners of the
cover.
Fig. 36
2. This unlocks the covers and
they can be folded forward.
Now, the filter mats can be
pulled up and removed.
Fig. 37
