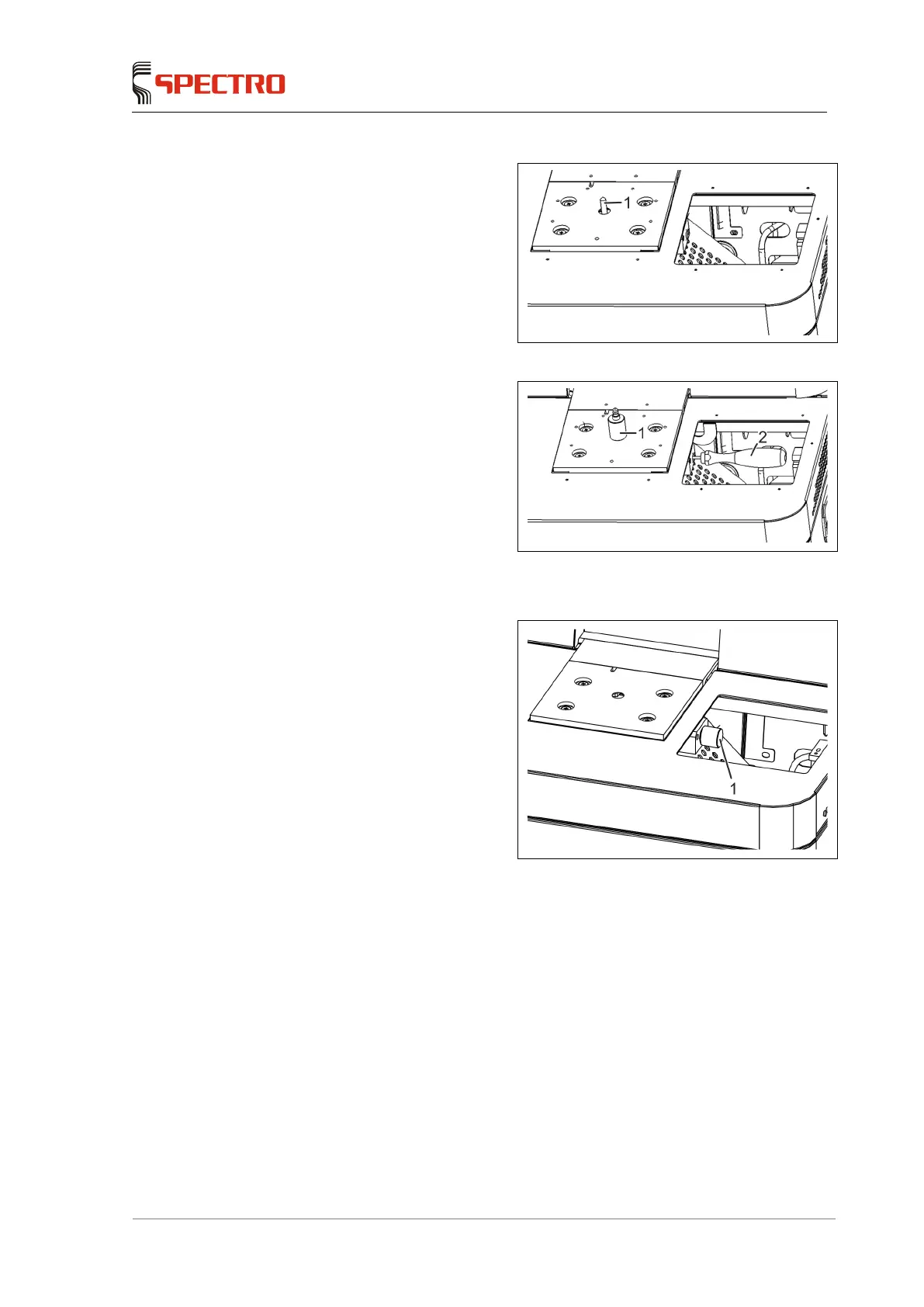

14. Insert the electrode (1) into the
spark stand opening.
Fig. 22
15. Use the setting gage (1) in order
to align the electrode.
 Press the setting gage with
the 3.4 mm shoulder into
the spark stand opening
and at the same time use
the Allen key (2) (AF 2.5) to
screw the electrode screw
tight.
Fig. 23
16. Screw the plug (1) back into the
spark stand.

The spark stand is now cleaned.
Fig. 24
