12 Wiring diagram
BNNbOO
ID: 1138310 Issue date January 01, 2010
157

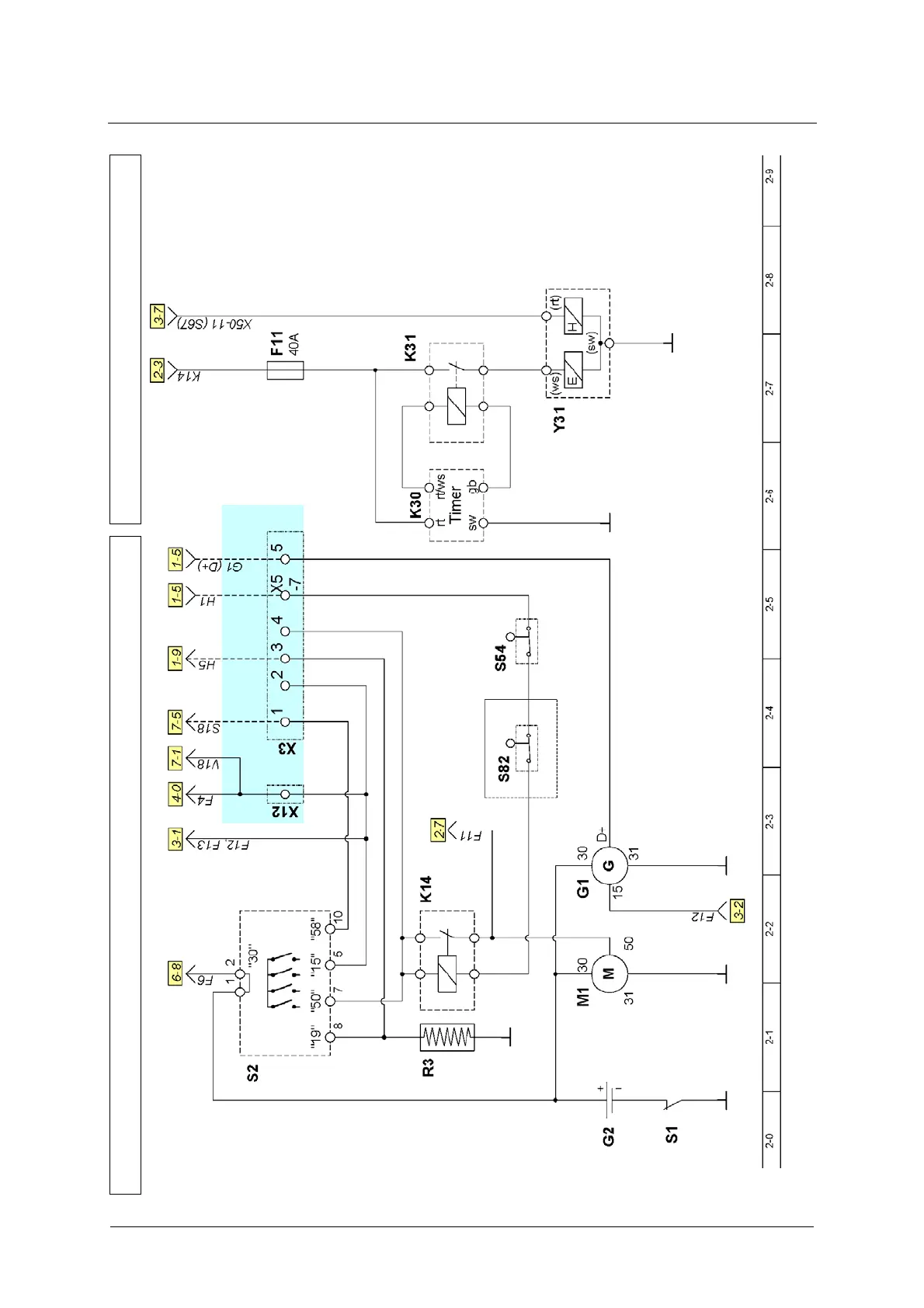

Wiring diagram (engine start/stop)
Stop solenoid (pull-in/holding solenoid) Battery, ignition switch, starter, alternator, optional towing cock
