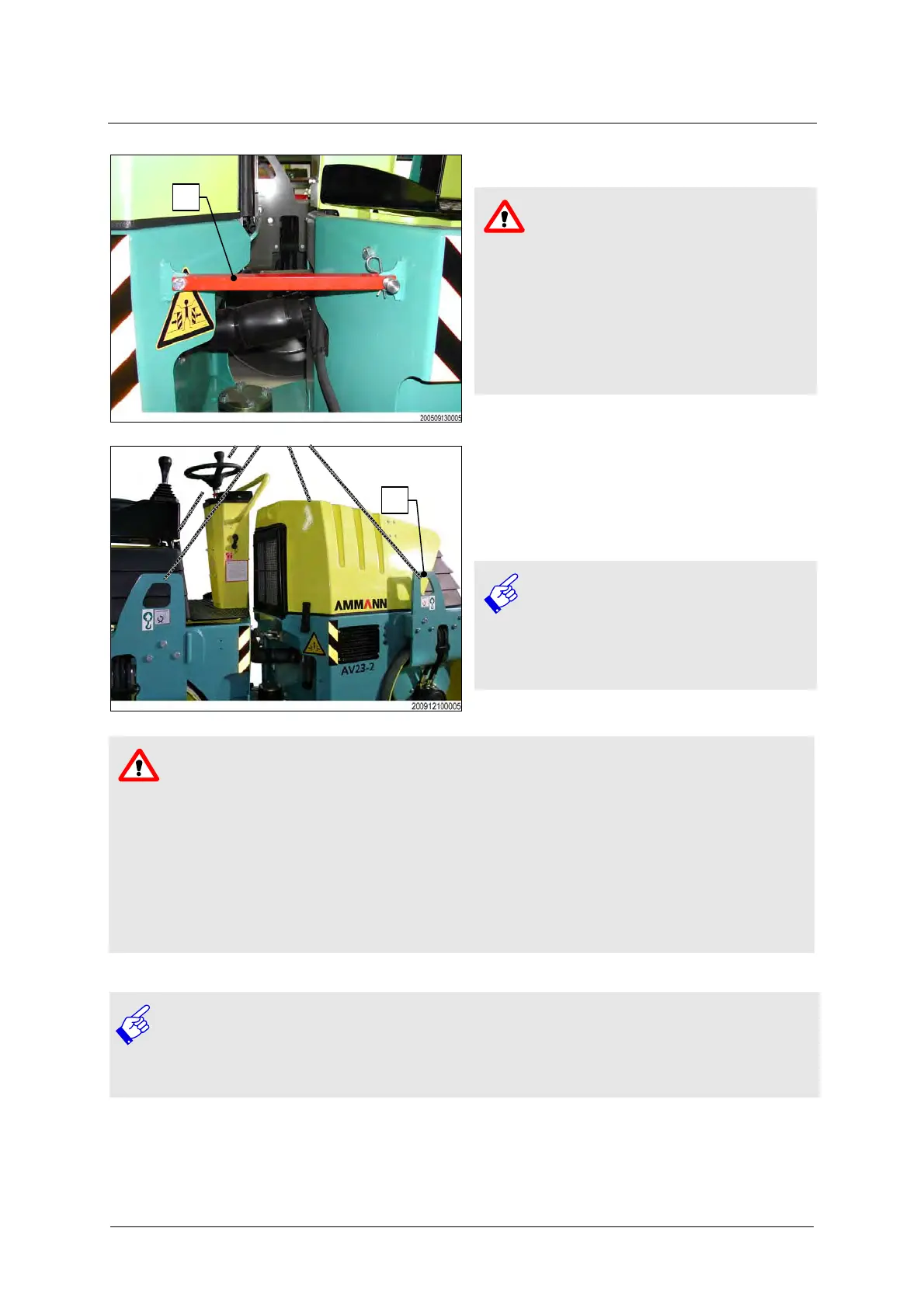

Transport
Articulated joint lock
WARNING!
Danger of crushing
Before lifting, during transport of the
machine, you must install the lock
(1) of the articulated joint (joint
protection).
Lifting at the 4-point lifting eyes
Lift the roller with suitable tools using
the four lifting eyes (1) integrated into
the wheel suspension.
NOTE
The lifting devices (steel ropes, etc.)
must be at least 2,300 mm long.
WARNING!
Accident hazard!
• Do not stand under suspended loads!
• Use only anti-slip, stable ramps when loading!
• Secure the machine on transport vehicles to prevent it from rolling away,
slipping to the side or tipping over!
NOTE
The roller will weight less if the water tanks are drained before transporting.
1
1
