Joint protection

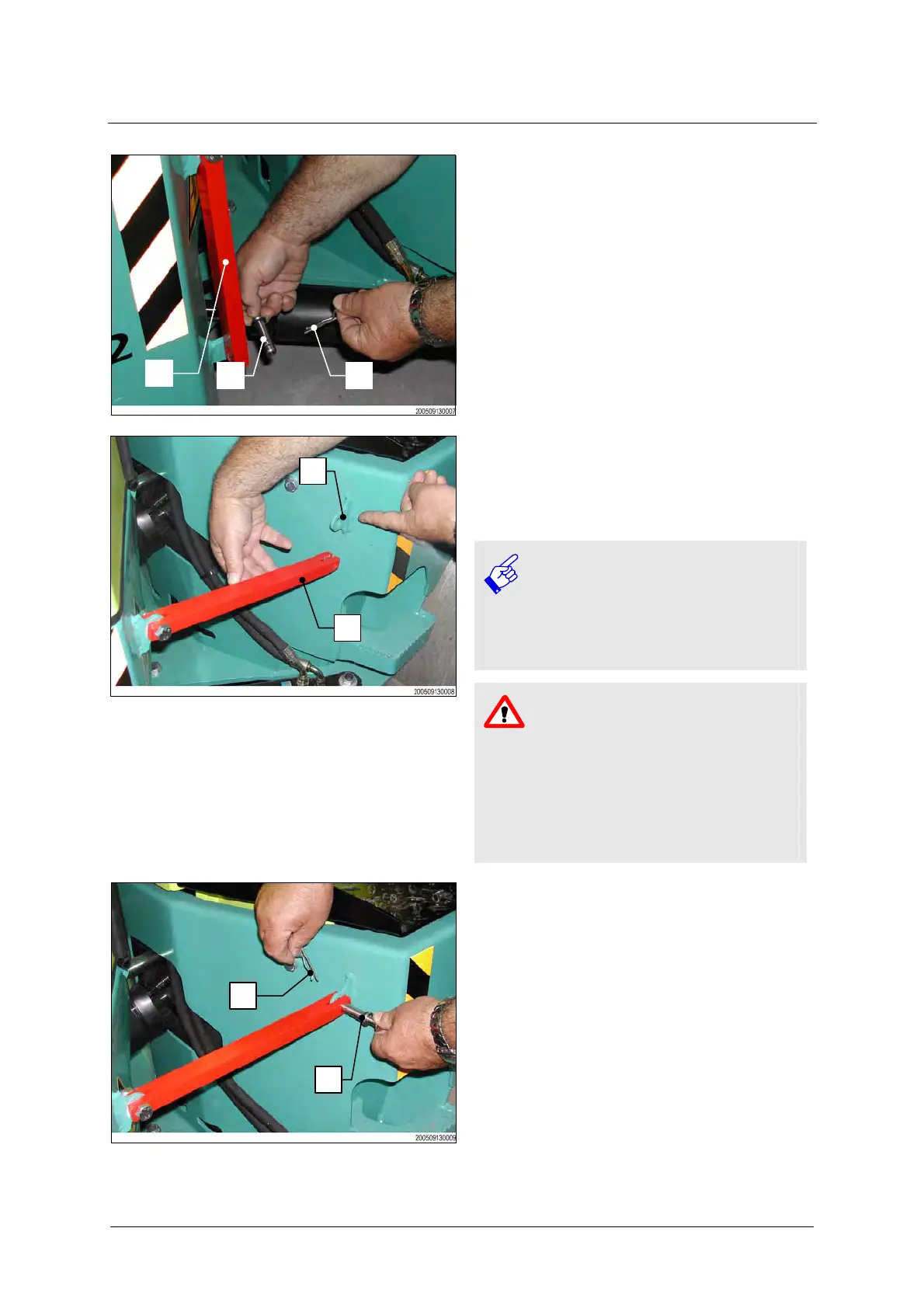

Blocking the joint protection
Detach the bottom part of the joint
protection (1) by first pulling out the
compression spring (2) and then the
lock bolt (3).
Carefully turn the roller steering
wheel until the joint protection (1)
comes in line with the opposite loop
(2).
NOTE
You must start the machine to be
able to move the steering wheel.
WARNING!
Danger of crushing
Person standing in the danger
zone: Switch off the engine once
the machine is aligned.
Now snap in the joint protection and
secure it with the lock bolt (1).
Secure the lock bolt with the
compression spring (2).
2 3
1
1
2
1
2
