7 Options
BNNbOO
ID: 1138310 Issue date January 01, 2010
72

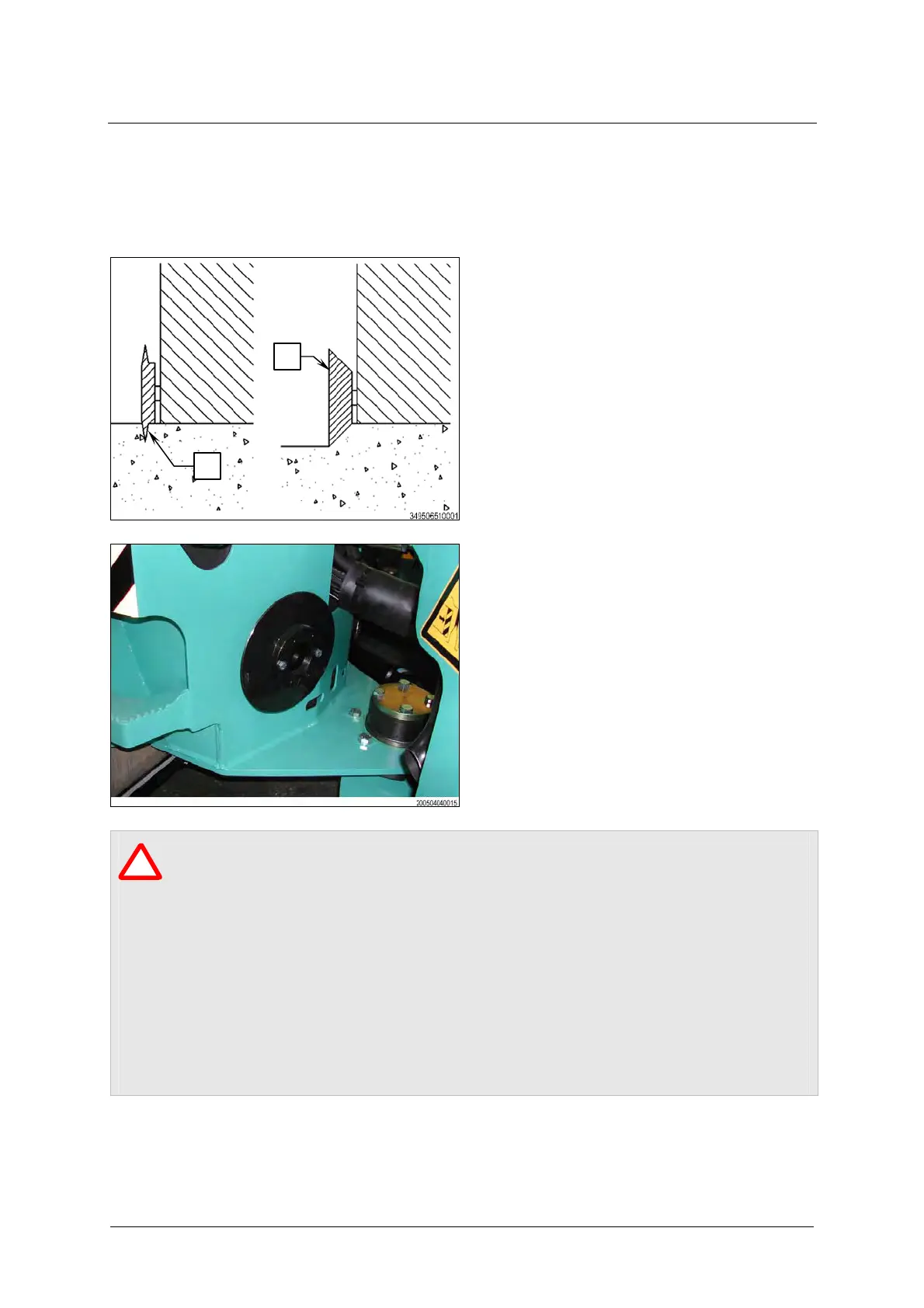

Edge cutter
Disk use and storage
A cutting disk and a pressure disk are included in the edge cutter's scope of
delivery.
Cutting disk (1)
Using the cutting disk the pavement
can be cut at the required position or
pavement edges can be
straightened.
Pressure disk (2)
The pavement edges are compacted
at an angle using the pressure disk.
Disk storage
If one of the two disks is not being
used, fix it to the mounting provided
on the right side of the roller.
ATTENTION!
Risk of injury!
The disk can loosen and injure nearby persons!
Check the fastening screws when replacing the disks.
Tighten the screws well on both the edge cutter and the mounting.
See the "Tightening torques" table in Section 8 Servicing.
2
1
