7 Options
BNNbOO
ID: 1138310 Issue date January 01, 2010
93
ROPS2D
NOTE
The vibration system remains switched off until the roller returns to a safe
working angle. Only then can the vibration be switched on again.
Daily inspection:
Turn the ignition key from 0 to 1. If a short beep is heard, the system is ready.
Monthly inspection:
ROPS2D must also be tested in the course of the monthly inspection. Carry
out the ROPS2D test according to the following procedure.

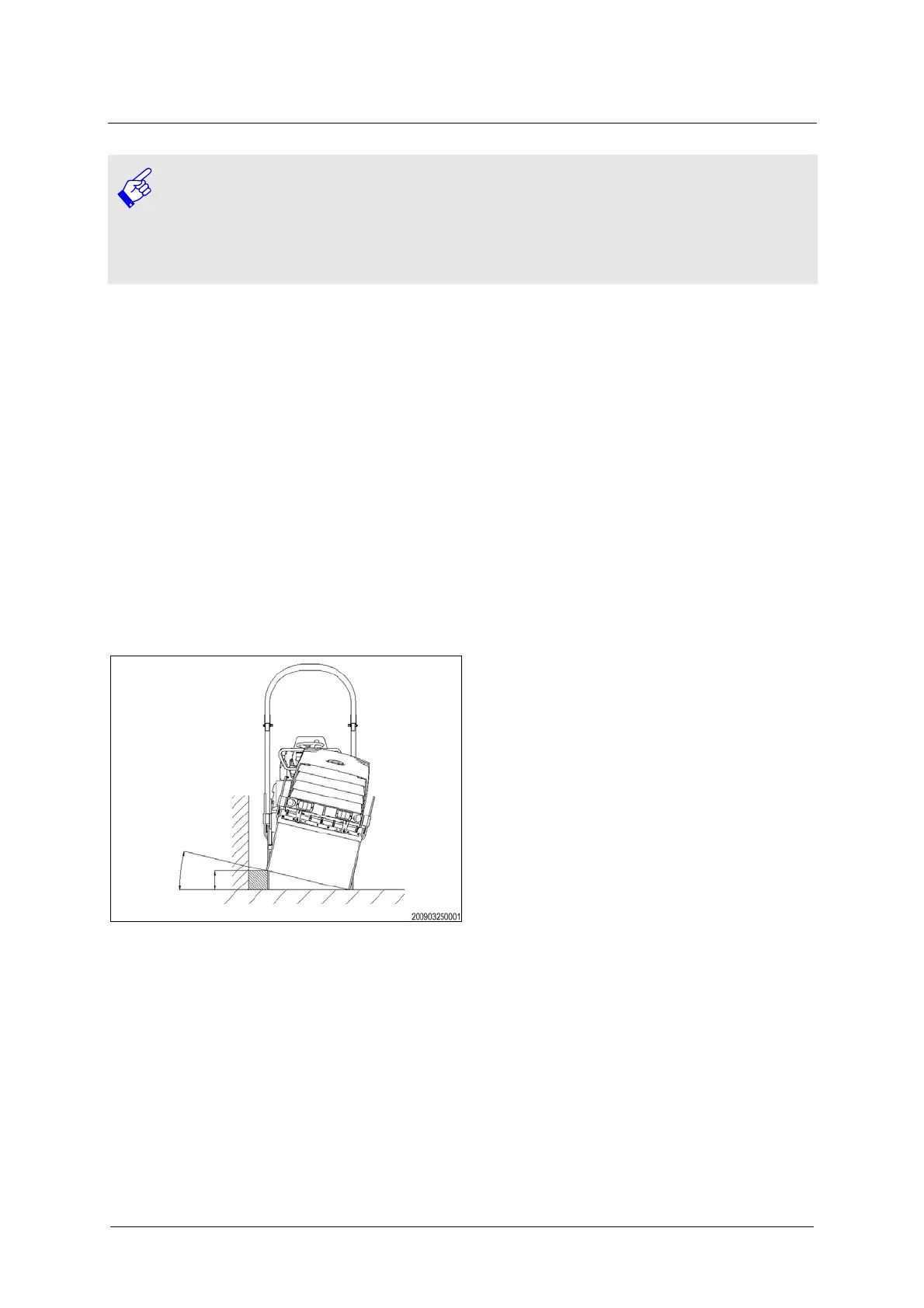

Skewing the front roller drum
1. Ensure that the roller is on level ground.
2. Set the engine speed to operating speed.
3. Switch vibration on Æ Vibration running = OK.
4. Switch vibration off.
5. With the front wheel of the roller
only, drive the side edge of the
roller drum onto a solid, secure
object with the following height H:
AV 23-2/K = 17 cm
AV 26-2/K, 32-2/K = 21 cm
AV 33-2, 40-2/K = 23 cm
This gives an angle for the front
wheel of approx. 9-10°.
6. After two seconds the red warning light lights up and the acoustic alarm is
activated.
7. Try to switch vibration on. It should NOT start.
8. ROPS2D and the roller are ready.
9°-10°
H
