The display shows:
The peak compliance, in ml (Pk)
The pressure which gave the peak compliance in daPa
The Gradient, in daPa (Gr)
The Ear Canal Volume (ECV) in ml measured at 200 daPa.
A plot of compliance against pressure.
Review the tympanogram to ensure that the peak compliance point
selected by the Otowave is suitable. If required it is possible to select an
alternative peak using the ▲ and ▼ keys. The figures displayed will
change to reflect the peak selected, and will be saved with the
tympanogram.
To repeat the test, press ◄.
When satisfied with the tympanogram press ►.
If reflex test(s) were carried out these results will now be displayed:

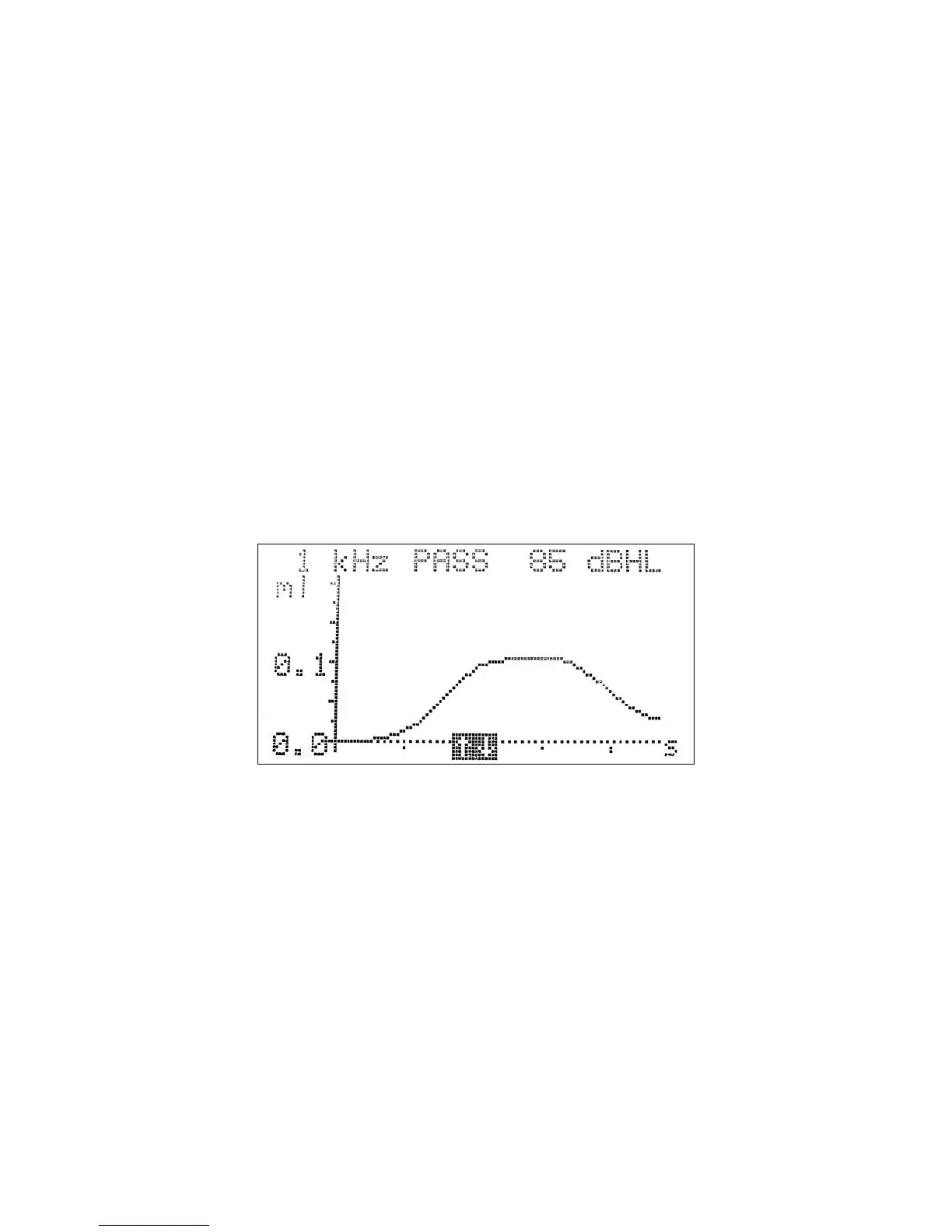

The display shows:
The frequency and level of the reflex stimulus
“PASS” if a reflex was found, else “NR” (No Response)
A plot of compliance against time
If the reflex test was performed at more than one frequency use the ▲ and
▼ keys to view the results for the other frequencies.
If the Otowave 102 was set to test for a reflex at all levels of the stimulus
(see Reflex autostop in Section 5.5) press ► to view an additional display
following the reflex graphs. This shows a summary of the levels and
frequencies at which a reflex was detected. The dash symbol “-” is shown if
a reflex tone was not presented at the level indicated.
