AMSTRAD PC1640 - Track00 Sensor Assembly Exchange

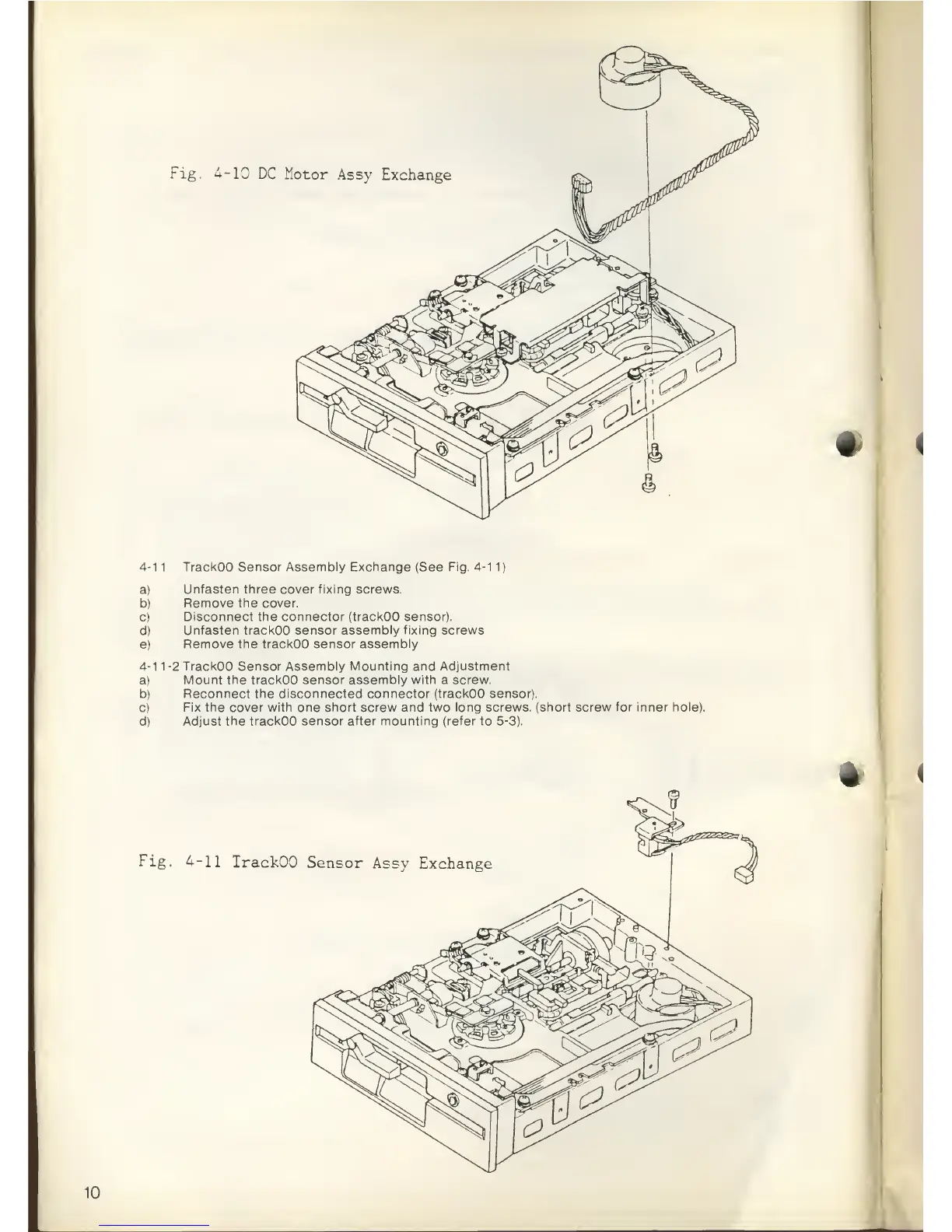

Fig. 4-10
DC
Motor
Assy
Exchange
4-1
1
TrackOO Sensor Assembly Exchange (See Fig.
4-1
1)
a)
Unfasten three cover fixing
screws.
b)
Remove the cover.
c) Disconnect the
connector (trackOO sensor).
d)
Unfasten trackOO sensor assembly fixing screws
e)
Remove the trackOO sensor assembly
4-1
1
-2
TrackOO Sensor
Assembly
Mounting and
Adjustment
a)
Mount the trackOO sensor assembly
with
a screw.
b)
Reconnect the disconnected connector
(trackOO sensor).
c)
Fix the cover with one short screw and two long
screws, (short screw for inner hole)
d)
Adjust the trackOO
sensor after
mounting
(refer
to
5-3).
^
Fig. 4-11
TrackOO
Sensor
Assy Exchange
10
