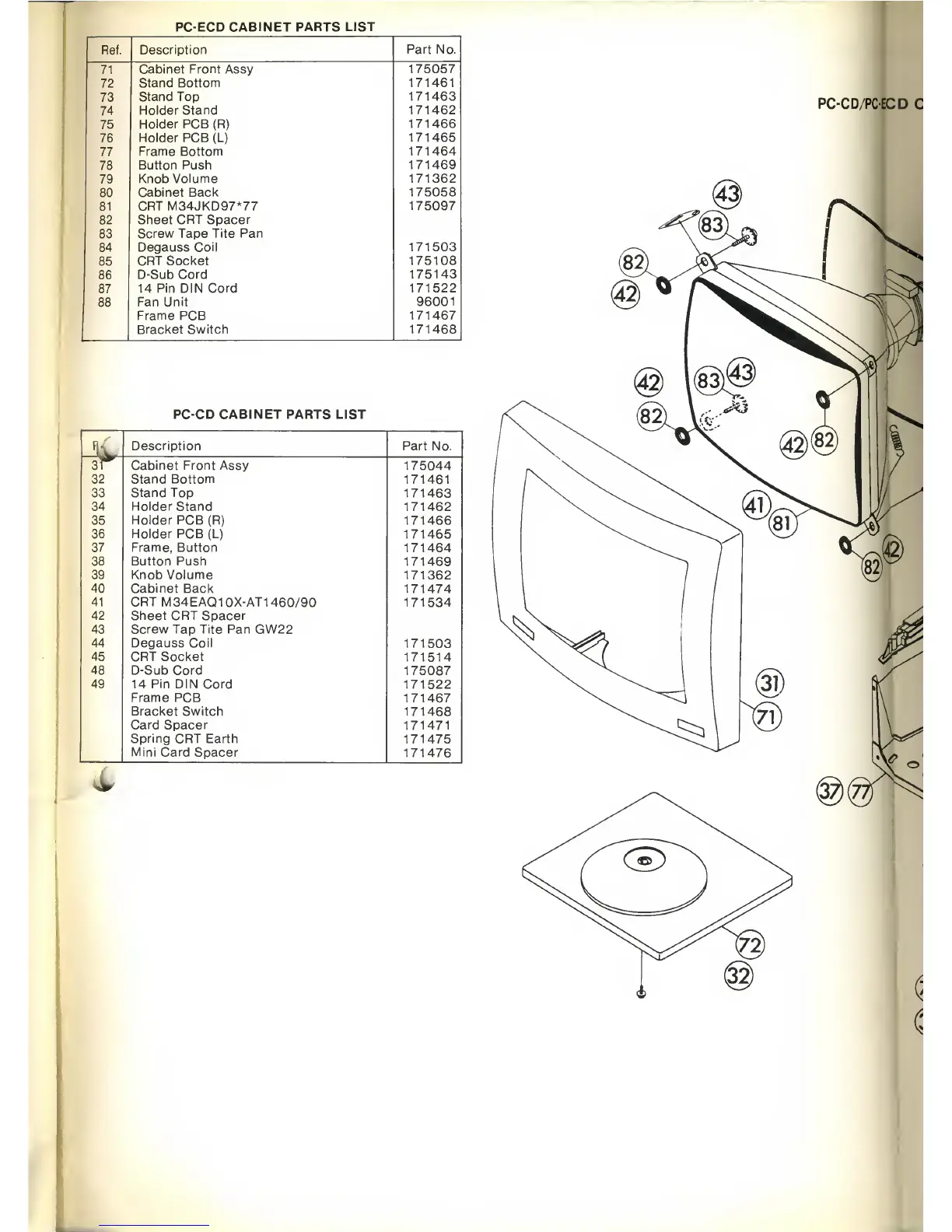

AMSTRAD PC1640 - PC-CD;PC-ECD Cabinet Exploded View

PC-ECD
CABINET PARTS LIST
Ref.
Description
Part No.
71 Cabinet
Front Assy 175057
72 Stand
Bottom
171461
73
Stand
Top
171463
74
Holder Stand
171462
75
Holder PCB (R)
171466
76
Holder PCB (L)
171465
77
Frame
Bottom
171464
78
Button Push
171469
79
Knob
Volume
171362
80
Cabinet Back
175058
81
CRTM34JKD97*77
175097
82
Sheet CRT Spacer
83
Screw Tape Tite Pan
84 Degauss
Coil
171503
85
CRT Socket
175108
86
D-Sub
Cord
175143
87
14 Pin DIN Cord
171522
88
Fan Unit
96001
Frame PCB
171467
Bracket
Switch 171468
PC-CD CABINET PARTS LIST
>
Description
Part No.
Cabinet Front Assy 175044
32 Stand Bottom 171461
33 Stand Top 171463
34 Holder Stand 171462
35 Holder PCB (R) 171466
36 Holder PCB (L) 171465
37
Frame,
Button 171464
38 Button Push 171469
39
Knob Volume
171362
40 Cabinet Back
171474
41 CRT M34EAQ10X-AT1
460/90 171534
42
Sheet CRT Spacer
43 Screw
Tap Tite Pan GW22
44
Degauss Coil
171503
45 CRT
Socket 171514
48
D-Sub Cord
175087
49
14
Pin
DIN Cord 171522
Frame PCB
171467
Bracket Switch
171468
Card Spacer
171471
Spring CRT Earth
171475
Mini Card Spacer
171476
PC-CD/PC-EC D
C
