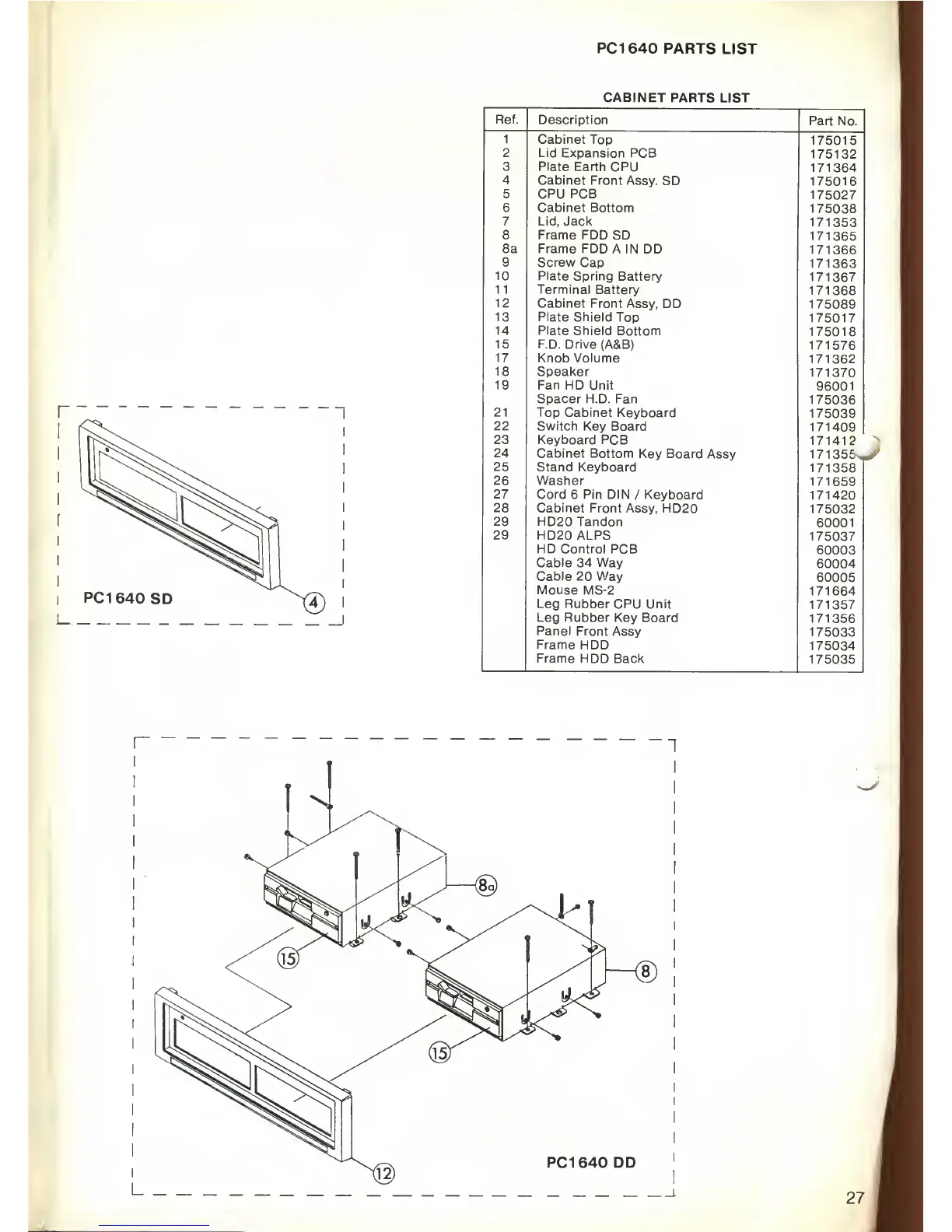

AMSTRAD PC1640 - Cabinet Parts List

PC1640
PARTS
LIST
CABINET
PARTS
LIST
r
Ref.
Description
Part No.
1 Cabinet Top
175015
2 Lid Expansion
PCB
175132
3 Plate Earth
CPU
171364
4
Cabinet Front
Assy. SD
175016
5 CPU PCB
175027
6 Cabinet
Bottom
175038
7 Lid,
Jack
171353
8 Frame FDD
SD
171365
8a Frame FDD A
IN DD
171366
9
Screw
Cap
171363
10 Plate
Spring Battery
171367
11 Terminal
Battery
171368
12 Cabinet Front
Assy,
DD
175089
13
Plate Shield
Top
175017
14
Plate Shield
Bottom
175018
15
F.D. Drive
(A&B)
171576
17
Knob Volume
171362
18
Speaker
171370
19
Fan
HD Unit
96001
Spacer
H.D. Fan
175036
21
Top Cabinet
Keyboard
175039
22
Switch Key
Board
171409
23
Keyboard PCB
171412
24 Cabinet
Bottom
Key Board Assy
171355-
25 Stand
Keyboard
171358
26 Washer
171659
27 Cord
6
Pin
DIN
/
Keyboard
171420
28 Cabinet Front
Assy, HD20
175032
29 HD20 Tandon
60001
29
HD20 ALPS
175037
HD Control
PCB
60003
Cable 34 Way
60004
Cable 20 Way
60005
Mouse MS-2
171664
Leg Rubber
CPU Unit
171357
Leg Rubber
Key Board
171356
Panel Front Assy
175033
Frame HDD
175034
Frame
HDD Back
175035
r
L
PC1640 DD
O
