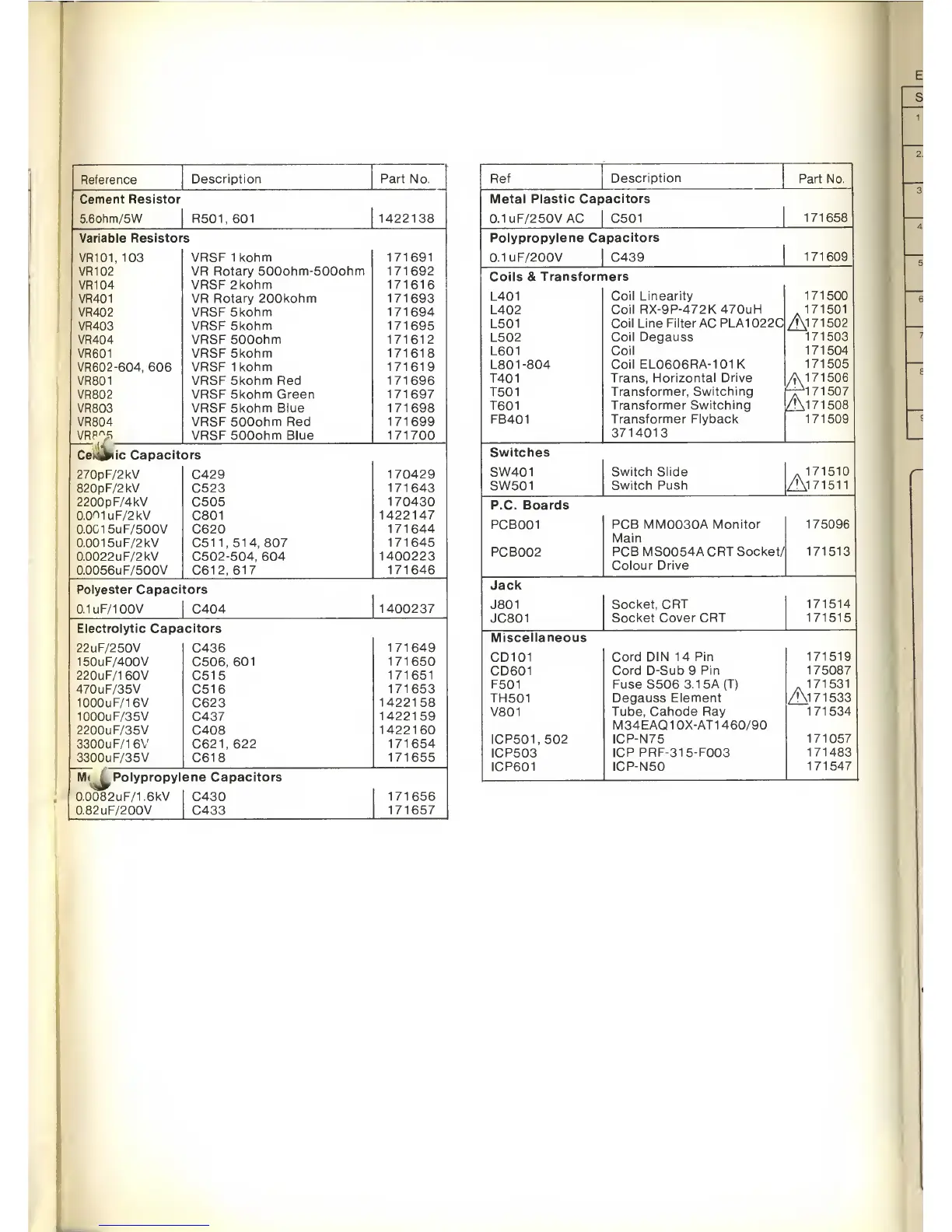

AMSTRAD PC1640 - Page 55

Reference
Description
Part
No.
Cement
Resistor
5.6ohm/5W
|
R501,
601 1422138
Variable Resistors
VR101, 103 VRSF 1kohm
171691
VR102
VR Rotary 500ohm-500ohm 171692
VR104
VRSF 2kohm 171616
VR401 VR
Rotary 200kohm 171693
VR402
VRSF 5kohm 171694
VR403
VRSF 5kohm 171695
VR404
VRSF 500ohm 171612
VR601
VRSF 5kohm 171618
VR602-604, 606
VRSF 1kohm 171619
VR801
VRSF5kohm Red 171696
VR802 VRSF
5kohm Green 171697
VR803
VRSF5kohm Blue 171698
VR804 VRSF
500ohm Red 171699
VRc"\5 VRSF500ohm Blue 171700
Ce.
\>.ic
Capacitors
270pF/2kV C429
170429
820pF/2kV C523
171643
2200pF/4kV
C505
170430
0.0O1uF/2kV
C801
1422147
O.OC15uF/500V
C620
171644
0.001 5uF/2kV
C51 1,514,
807
171645
0.0022uF/2kV
C502-504,
604
1400223
0.0056uF/500V
C612,
617
171646
Polyester Capacitors
0.1UF/100V
| C404
1400237
Electrolytic Capacitors
22uF/250V
C436
171649
150uF/400V
C506,
601
171650
220uF/16OV
C515
171651
470uF/35V
C516
171653
1000uF/16V
C623
1422158
1000uF/35V
C437
1422159
2200uF/35V
C408
1422160
3300uF/16V
C621,
622
171654
3300uF/35V
C618
171655
Mi
t Polypropylene
Capacitors
0.0082uF/1.6kV
C430
171656
0.82uF/200V
C433
171657
Ref
Description
Part No.
Metal
Plastic Capacitors
0.1uF/250VAC
C501
171658
Polypropylene
Capacitors
0.1uF/200V C439
171609
Coils & Transformers
L401
Coil Linearity
171500
L402
Coil
RX-9P-472K470uH 171501
L501
Coil Line Filter AC PLA1022C
/!\171502
L502
Coil Degauss
171503
L601
Coil
171504
L80
1-804
Coil
EL0606RA-101K
171505
T401
Trans, Horizontal Drive A171506
^171507
/!\171508
T501
Transformer, Switching
T601
Transformer Switching
FB401
Transformer
Flyback
3714013
171509
Switches
SW401
Switch
Slide .171510
/!\171511
SW501
Switch Push
P.C. Boards
PCB001
PCB MM0030A
Monitor
Main
175096
PCB002
PCB
MS0054A CRT Socket/
Colour
Drive
171513
Jack
J801
Socket, CRT
171514
JC801
Socket Cover CRT
171515
Miscellaneous
CD101
Cord DIN 14
Pin 171519
CD601
Cord D-Sub 9 Pin
175087
F501 FuseS506
3.15A(T)
171531
/'\171533
TH501
Degauss
Element
V801
Tube, Cahode
Ray
M34EAQ1
0X-AT1
460/90
171534
ICP501.502
ICP-N75
171057
ICP503
ICP PRF-315-F003
171483
ICP601
ICP-N50
171547
