AXB-F117 Stealth 1 Camera Controller Installation 23
a. Move the adjustable pan-limit stop slightly farther until you hear a click.
The click indicates the pan-limit switch is engaged.
b. Tighten the left adjustable pan-limit stop.
Tilt-limit switch
Adjustable tilt-limit stops
Installation notch for the adjustable tilt-limit stops
Pan-limit switch
Adjustable pan-limit stops
Installation notch for the adjustable pan-limit stops
Camera platform
5. Using the control panel, pan the AXB-F117 to the left until you reach the
desired left pan-limit position.
6. Locate the adjustable pan-limit stop on the right side of the AXB-F117, and
move it until it makes contact with the pan-limit switch.
a. Move the adjustable pan-limit stop slightly farther until you hear a click.
The click indicates the pan-limit switch is engaged.
b. Tighten the right adjustable pan-limit stop.
7. Pan to both stop positions and ensure the pan-limit stops are set correctly.
Then, make sure both adjustable pan-limit stops are properly tightened.

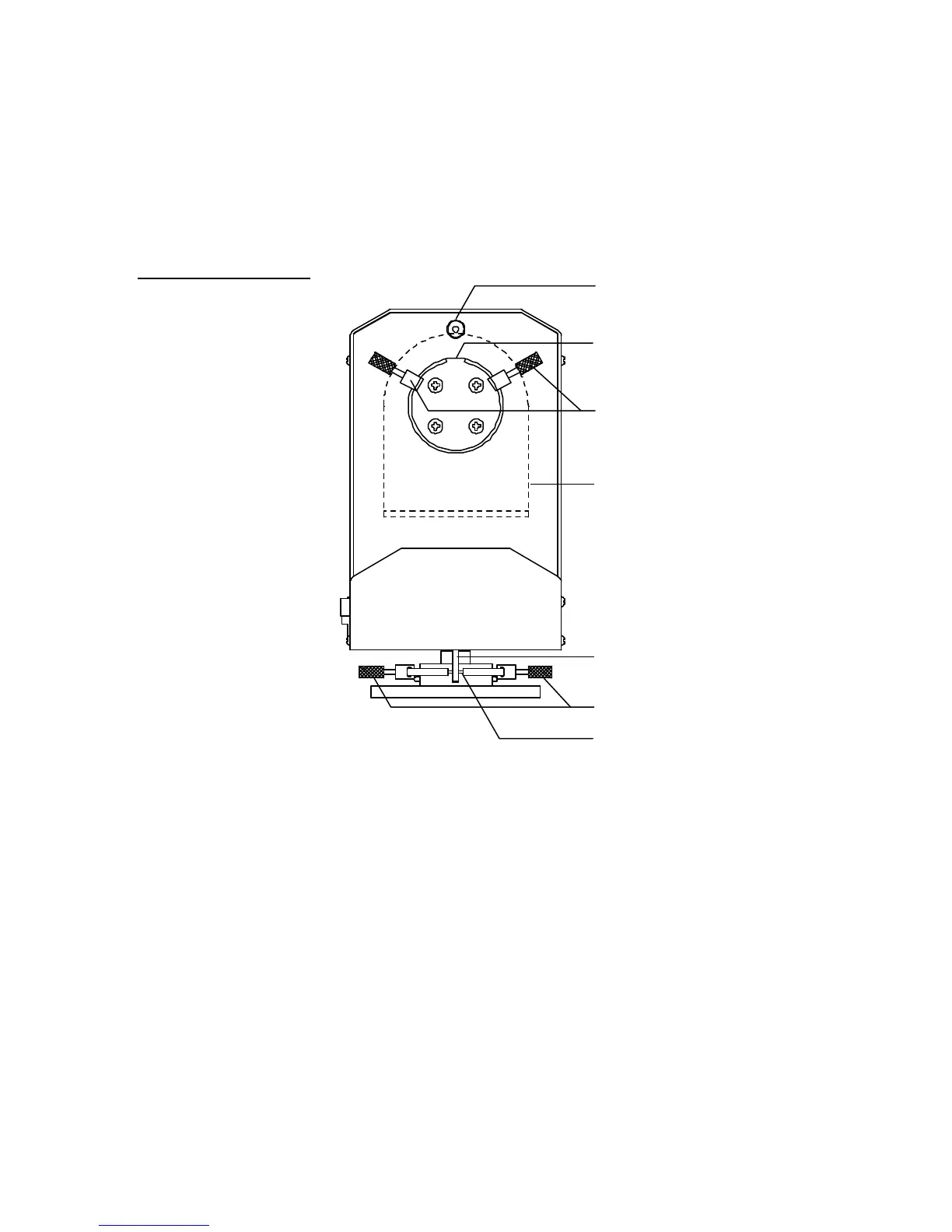

Figure 30
Pan/tilt-limit switches,
installation notches, and
adjustable pan/tilt-limit stops
