User Manual - CTC-1402
16
Audio Out

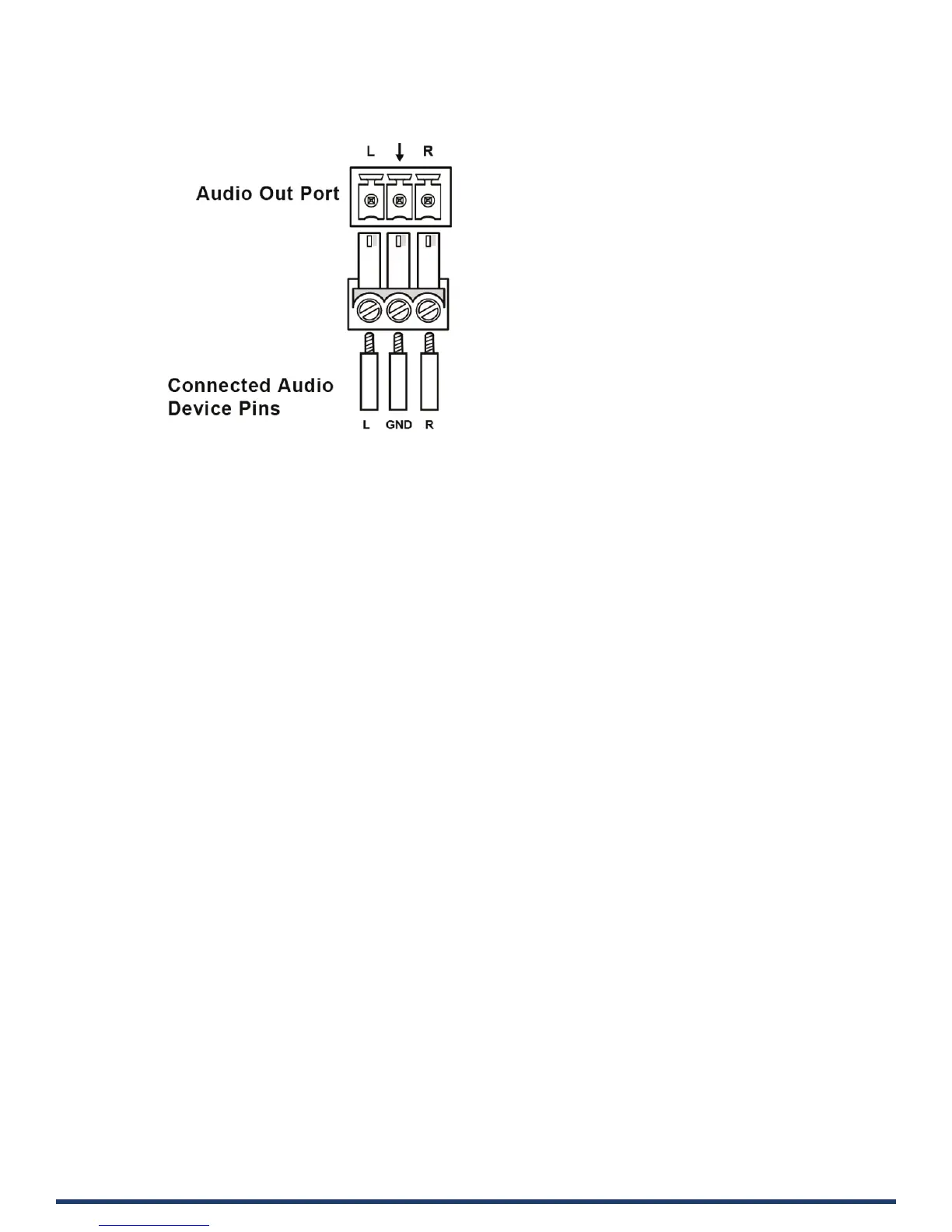

Connect to an audio system, such as an amplier, with the 3-pole, 3.5mm captive screw connector. Wire as shown below:
