User Manual - CT
C-1402
22

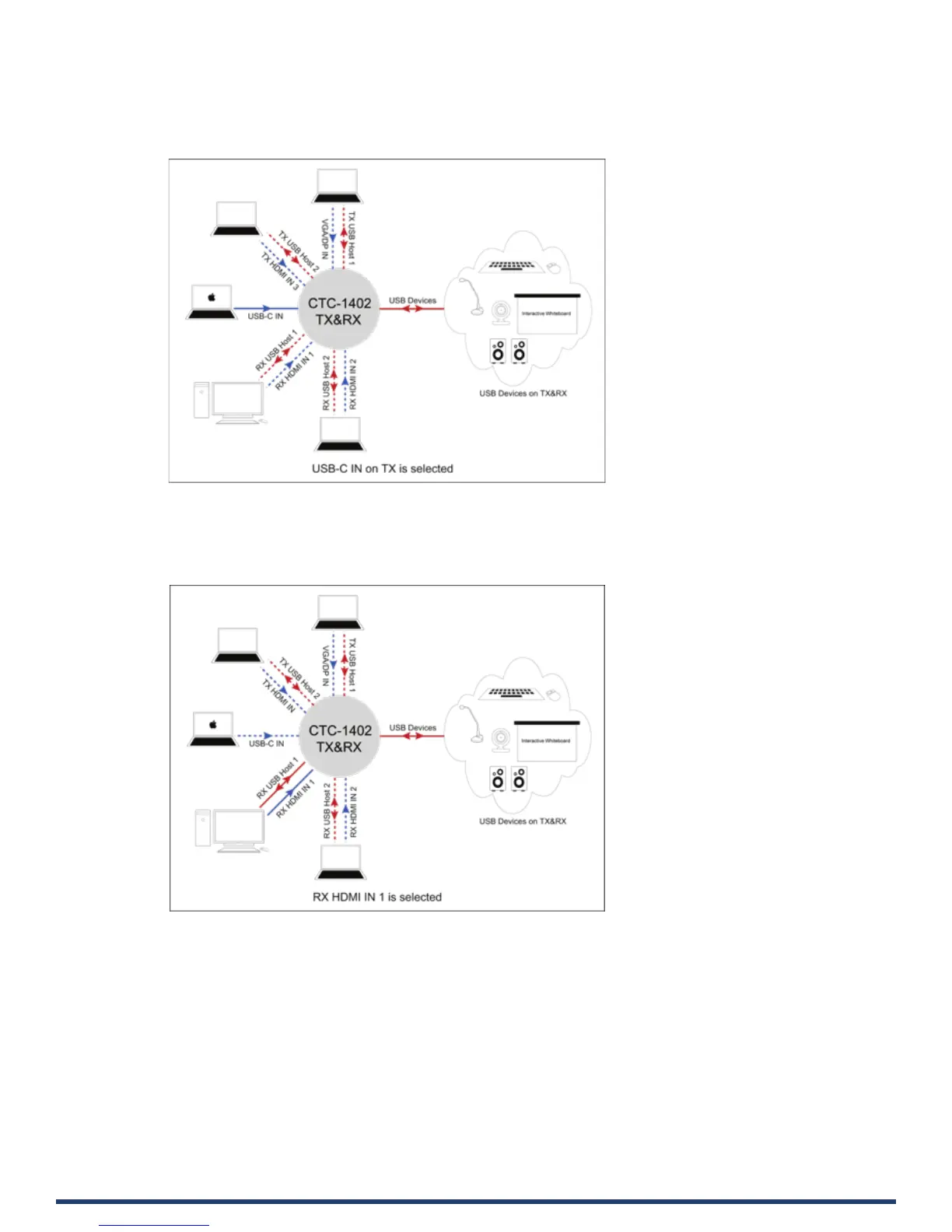

3. USB-C source on T
X is selected:
When the USB-C input is selected, the USB devices can be connect
ed to the PC dir
ectly
.
4. HDMI IN 1 on RX is selected:
RX HDMI IN 1 and RX HOST 1 ar
e in a group. Only if the RX HDMI IN1 is select
ed, the USB devices can be connected to the PC which is
connected to RX USB HOS
T 1.
21
23
Table of Contents
Important Safety Instructions
2
Table of Contents
4
Features
6
Overview
6
Package Contents
6
Specifications
7
Transmitter Front Panel Description
10
Transmitter Rear Panel Description
12
Receiver Front Panel Description
13
Receiver Rear Panel Description
14
Pinout Information
15
Rs232
15
Relay
15
Audio out
16
Installation
17
Wiring
18
Osd
19
Input Source Switching
20
Auto Switching
20
Manual Switching
20
USB Control
21
Netlinx Studio Control
24
Device Number and Ports
24
Send Commands to Control a Device
26
Telnet Control Via Netlinx Studio
26
Web UI Control
28
Web UI Control
29
Access the Web Interface
29
Web Interface Introduction
30
Refresh
30
Factory Default
30
Reboot
30
Upgrade Status
31
Logout
31
Firmware VERSION
31
Auto Switch
31
Key Lock
31
Hdcp
31
Edid
32
Display
32
RS232 Setting
32
Relay
33
Audio Volume
34
Resolution
34
Network
35
System
36
ICSP Parameter
36
Login Password
36
TELNET/SSH Access
37
TELNET Account
37
SSH Account
37
Firmware Upgrade
38
Before Starting
38
Transferring KIT Files
38
Troubleshooting
40
API Command Set
41
Netlinx Commands
42
Telnet/Ssh Commands
50
