Upgrading Firmware
99
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Adding an AMX IR Database file to NetLinx Studio
To add an IR file contained in AMX’s IR Database:
1. In the NetLinx Studio Workspace, select Add From AMX IR Database... to open the Select IR From
A Database window. The pane above the database directory tree will read ***AMX Directory
Database***.
2. From the directory tree, click on the AMX folder to open it. Select the appropriate IR file, and the
Selected IR Information pane will display the available information on the file (FIG. 79).
3. To add this IR file to the download list, click Add to List and the IR file will appear in the Selected
IR List pane. To remove an accidentally selected IR file, highlight the file to be removed in the
Selected IR List pane and click Remove From List (FIG. 80). When finished, click OK.

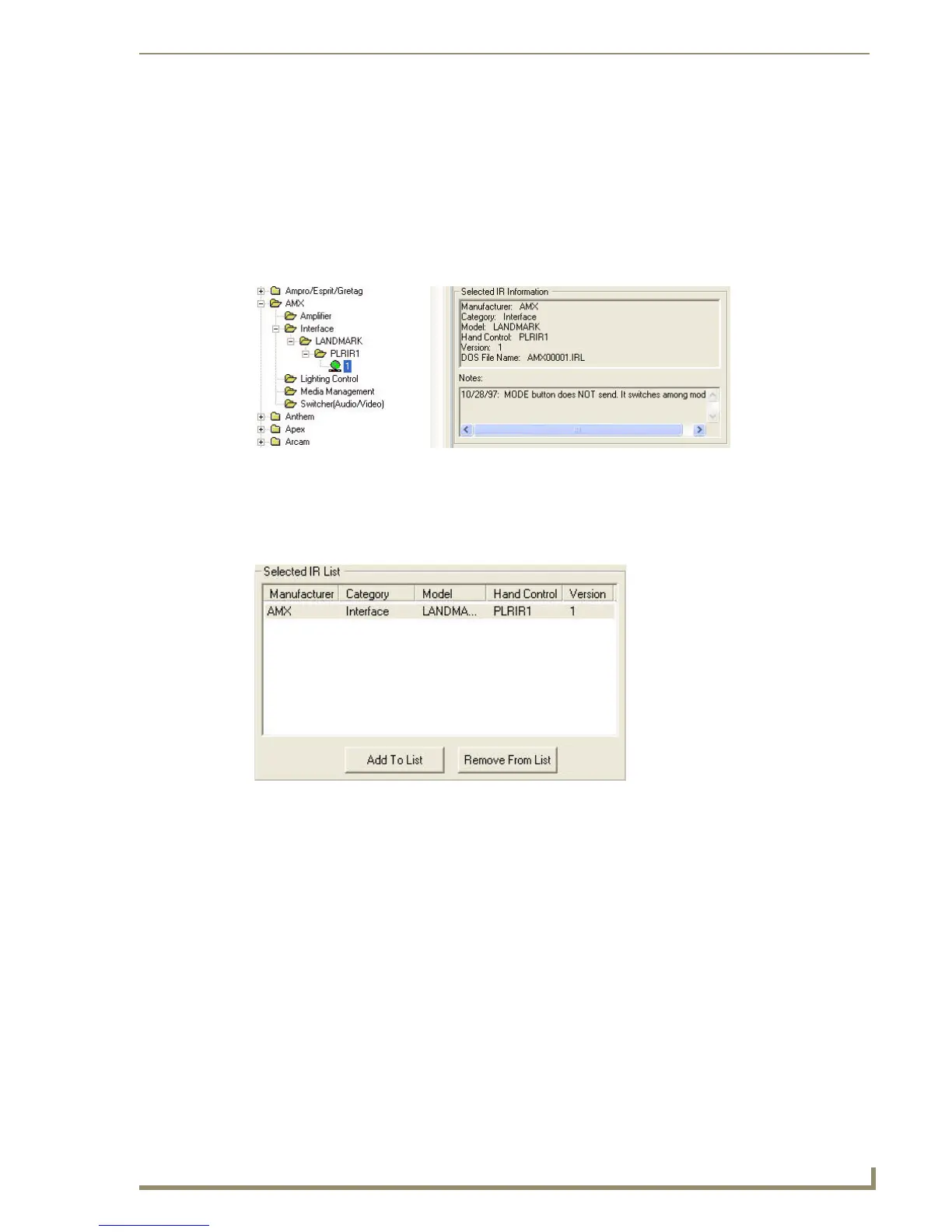

FIG. 79 Selected IR Information pane
FIG. 80 Selected IR List pane
