MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Installing the MVP-WCS-52
Since the Wall Charging Station is intended to be affixed to a wall or other permanent structure, care
must be taken to ensure its proper installation to prevent potential damage to any touch panel placed
within.
Installing the plastic Back Box
The plastic back box has two knockouts at the top of the box and four (4) lockdown wings attached to the
box with Phillips-head screws. For ease of installation, the interior of the box contains an "UP" arrow
pointing to the knockouts. The Metal Rough-In Box does not have to be installed beforehand, but it
offers an extra level of support.
To install the Plastic Back Box:
1. Cut a hole into the wall or surface intended to hold the box. The outer lip of the back box is sized
8.69 inches (220.66mm) long and 6.0 inches (152.4mm) high, so the hole should be at least 1/4"
(6.4mm) smaller in each dimension (FIG. 6).
2. Select the knockout to be removed from the top of the box. The box has two knockouts, at the top
left and the top right.
Other than wall installation tools, the only tool required for this installation is a #1
Phillips screwdriver.

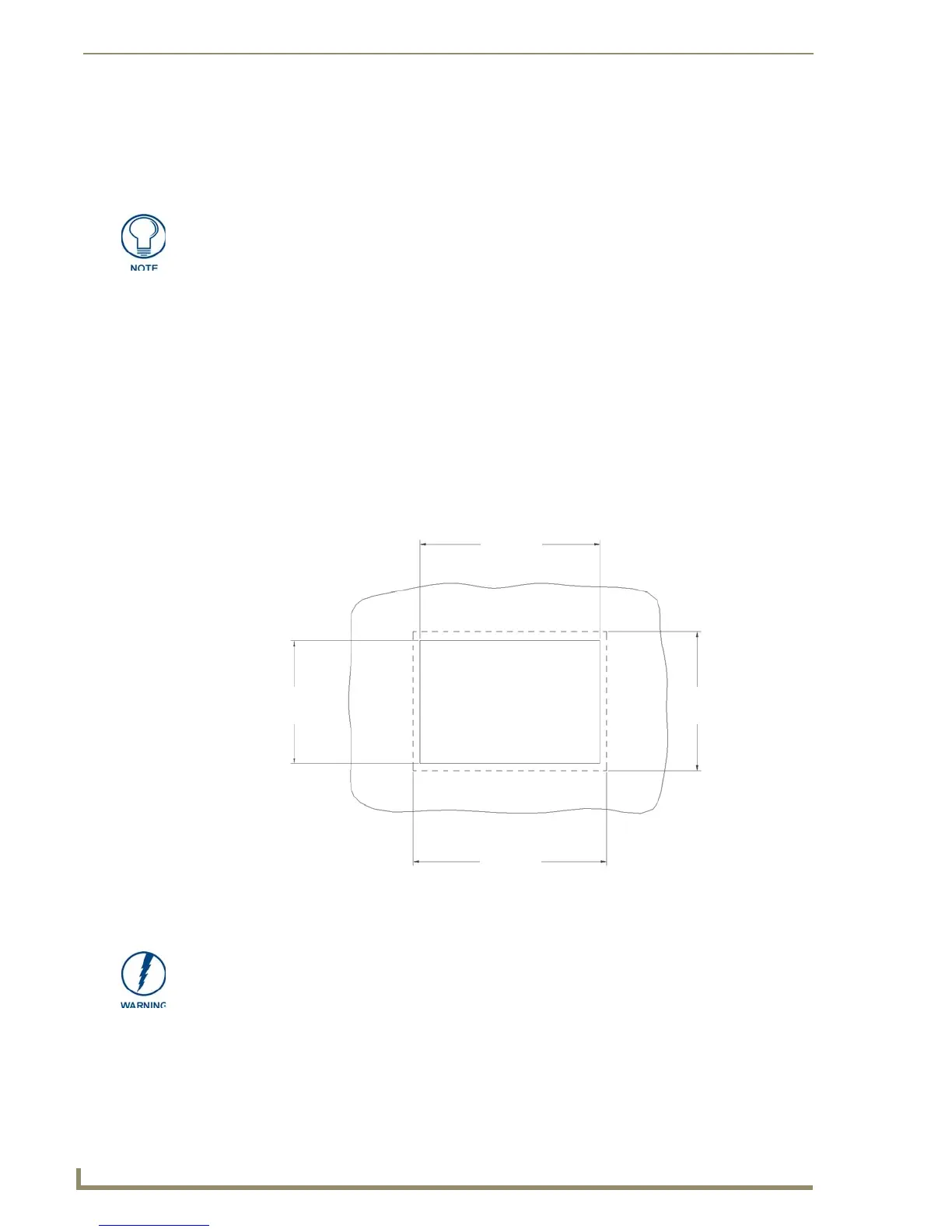

FIG. 6 Recommended cutout for plastic back box
8.25"
(209.55mm)
8.25"
(209.55mm)
5.56"
(141.29mm)
5.56"
(141.29mm)
Make sure to measure the size of the intended hole before starting to cut it.
