Battery Life and Replacement
154
MVP-5100/5150 5.2" Modero Viewpoint Touch Panels
Reconnecting the Battery To The Device
1.
On the back cover, make sure that the battery connector wiring runs to the right. Make sure that the
excess battery wiring fits in the space to the bottom left of the battery placement (FIG. 87). The
battery wiring may be looped around the support if necessary; make sure that the battery is not
crimped or damaged upon closure of the case.
2. Make sure to seat fully the battery plug to the connector in the device (FIG. 85). If fingers cannot be
used, use a clean, nonconductive stick or probe to seat the plug in the connector.
3. Reattach the back of the device, engaging the hook on the lower left of the case (near the speaker)
and using it to swing the back down into place.
4. Insert the five screws and replace the rubber feet atop the two upper screws, using the replacement
rubber feet included in the Battery Pack Kit (FIG. 88). Replace the bottom rubber foot over the three
lower screws, using the replacement large rubber foot included in the Battery Pack Kit.

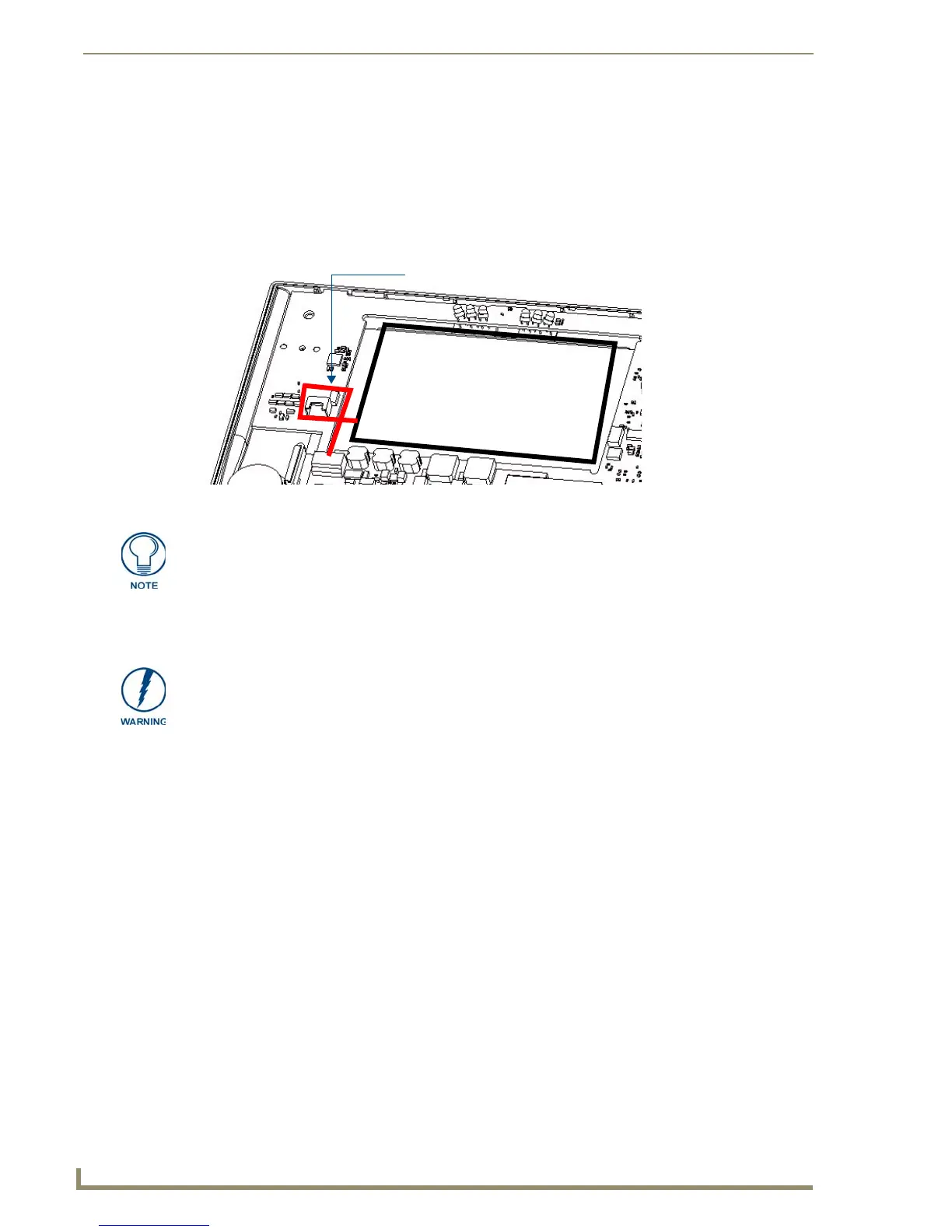

FIG. 87 Path of excess battery wiring
MVP-BP-51H battery placement
Excess battery wiring path
Special care must be taken to seat the battery plug so that it does not damage or rub
against the two resistors near the battery connector. When connecting the battery, do
not allow the battery plug to rub against the circuit board.
When reassembling the device, take especial care not to pinch or squeeze the
connector wiring or the battery. Do not force the back cover onto the device, as this
can damage the device.
