13
Bales 1.5 m (5 ft) in
diameter
Bales 1.8 m (6 ft) in
diameter*

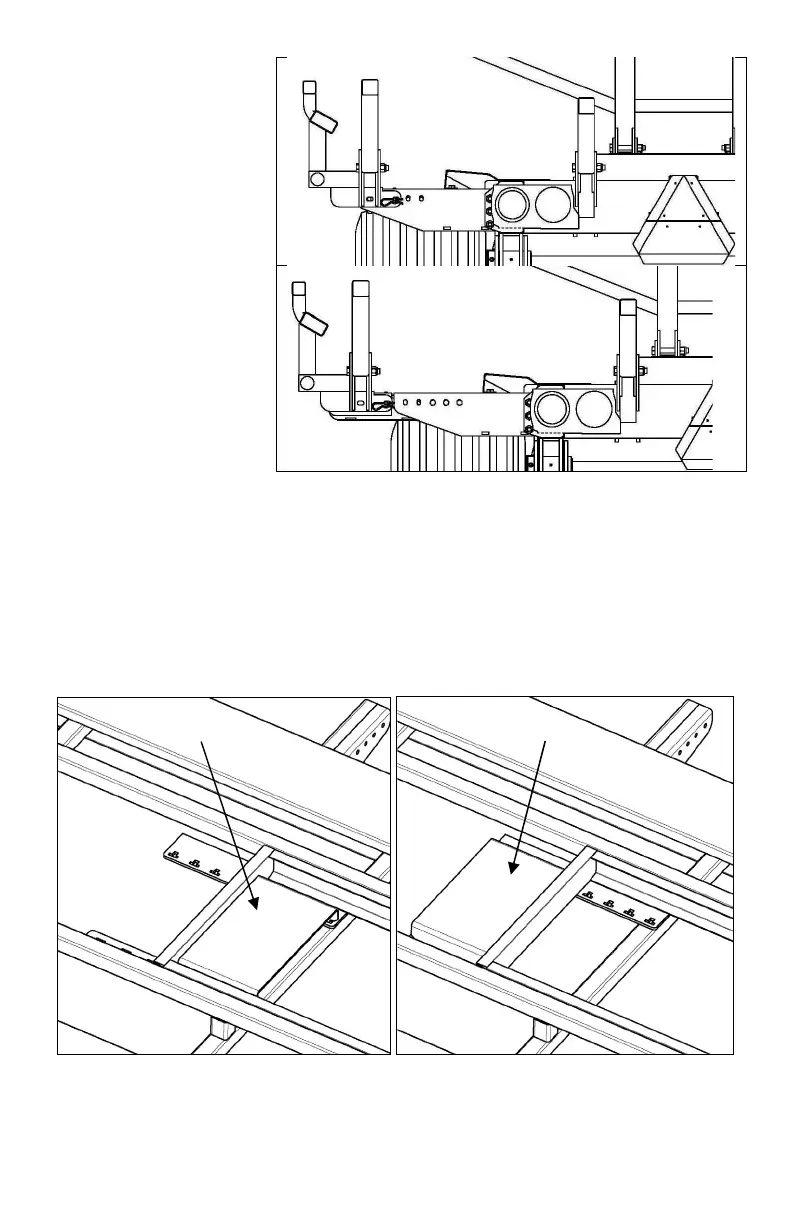

Figure 4.3 Bale guide adjustment
* The configuration to transport bales 1.8 m (6 ft ) in diameter requires the optional bale guide
extensions.
Pusher Adjustment
The pusher of the TRB trailer is equipped with a limit stop that makes it possible to transport
bales 1.2 m (4 ft) or 1.5 m (5 ft) in length (see Figure 4.4). Image #1 shows the position of the
limit stop when transporting bales 1.2 m (4 ft) in length and image #2 shows the position of
the limit stop when transporting bales 1.5 m (5 ft) in length. To dismantle the limit stop, you
must remove the pin located beneath the limit stop.
Figure 4.4 Pusher limit stop
Do not forget that the pusher will not work when the loading arm is in raised position.
1
2
