Anderson TRB-2000 User Manual
4
of 1
of 1 rating
68 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Groupe Anderson, 5125 de la Plaisance Chesterville (
Québec) G0P 1J0
Email :
service
@grpa
nderson.com

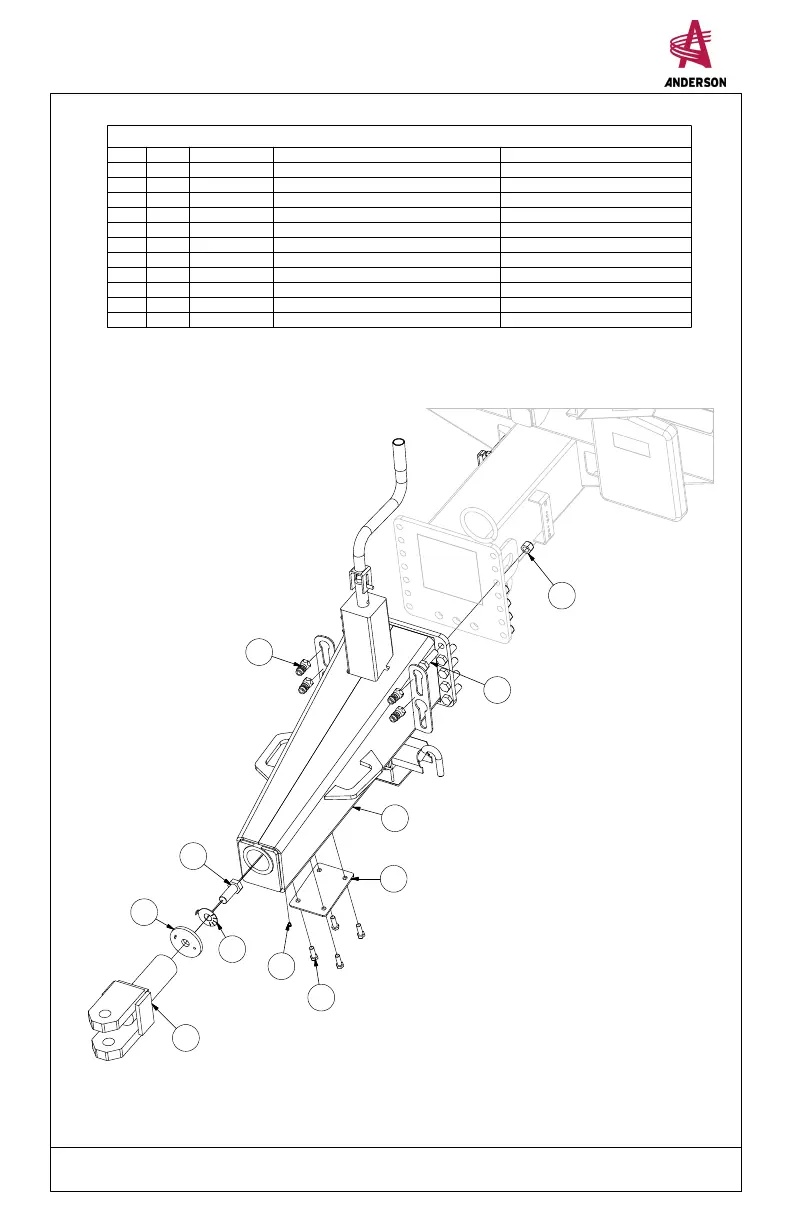

PAR
TS LIST
NOTE
DESCRI
PTIO
N
PART
QTY
ITEM
HYDRA
ULIC FIT
TING
452000
9
1
HEX NYLON LOCKNUT GR8 3/4-16 Z
501036-1
10
2
HEX BOLT GR8 3/4-16 X 2
1/2
500213-2
10
3
GREASE FI
TTING
322299
1
4
CONE P
LATE
234195
1
5
HEX BOLT GR5 1/2-13 X 1
1/2
500177
4
6
HEX BOLT GR8 1-14 X 2 1/2 Z
500324-1
1
7
LOCK WASHER
234
106
1
8
DRAW
BAR
234193
1
9
WASHER
234109-2
1
10
TRAILE
R TONG
UE CONE
234192-1
1
11
6 - TONGUE
9
10
8
7
4
6
5
1
11
3
2
43
45
Table of Contents
Table of Contents
4
1 Anderson Limited Warranty
6
Purpose of Warranty
7
Warranty Exemptions
7
No Dealer Warranty
7
Anderson's Responsibilities
8
2 Safety
9
Safe Operators
9
Danger Zone
9
Secure Attachment to the Tractor
9
Dangerous Situations
9
Prevention
9
Safe Maintenance and Repair
9
Hydraulic Oil
10
Risk of Electrocution
10
Traveling Safely on Public Roads
10
3 General Characteristics and Specifications
11
Design
11
Dimensions and Weight
11
Standard Components
12
Optional Components
12
4 Adjustment Procedures
13
Installing the Trailer on the Tractor
13
Adjusting the Loading Arm
13
Adjusting the Bale Guides
14
Pusher Adjustment
15
5 Operation
16
Commands
16
Telescopic
16
Pusher
16
Loading Arm
16
Start-Up
17
Loading Bales
17
Unloading the Trailer
20
6 Maintenance
21
Safety Stands
21
Tire Pressure
21
Wheel Nuts Tightening
21
Grease Gun Lubrication
21
Other Lubrication Points
24
Cleaning and Other Maintenance
24
Storage
24
7 Troubleshooting: Problems and Solutions
25
8 Quick Start-Up
27
Installation on the Tractor
27
Loading the Bales
27
Unloading the Bales
27
Table of Contents
31
Hydraulic Diagram
32
Electrical Diagram
36
Loading Arm / Loading Arm Cylinder
37
Tandem
39
Frame / Unload Cylinder
42
Tongue
44
Platform
47
Feet Bale Kit (Option)
48
Tire (Option)
61
Tongue /Hand /Security (Option)
62
Big Fork (Option)
64
Wheel Chock (Option)
66
