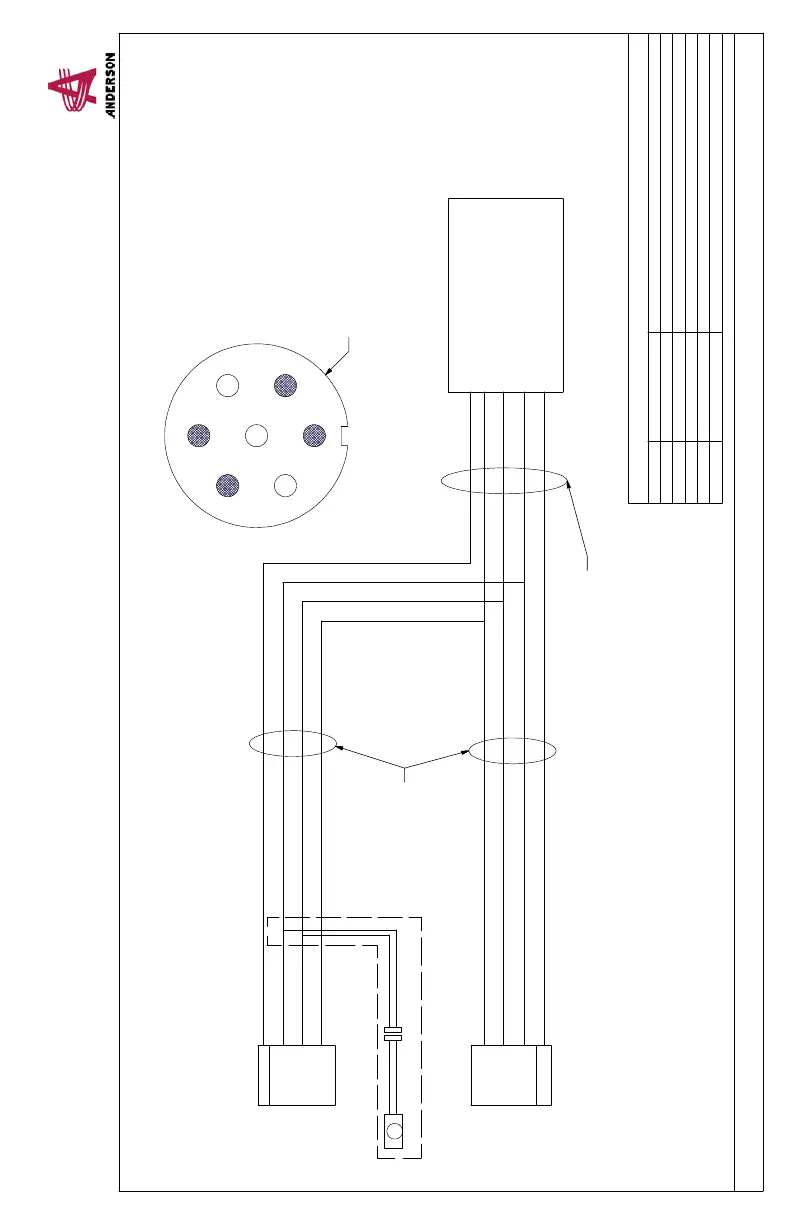

2 - ROAD LIGHT ELECTRICAL DIAGRAM
BACK VIEW OF
CONNECTOR
BLACK
BLACK
WHITE
WHITE
YELLOW
GREEN
RED
RED
CONNECTOR
4 WIRE CABLES
5 WIRE
CABLE
PARTS LIST
QTY
PART
DESCRIPTION
1
234208-15
CABLE, TRB1400-TRB2000, EUROPE
1
235208-14
CABLE, TRB1000, EUROPE
2
319858
LIGHT
1
900019
CONNECTOR, EUROPE
1
900567
LICENSE LIGHT (EUROPE ONLY)
YELLO
W
RED
BROWN
WHITE
GREEN
LEFT FLASHER (YELLOW)
LEFT STOP LIGHT (RED)
RIGHT STOP LIGHT (RED)
RIGHT FLASHER (YELLOW)
EUROPE
WHITE
BROWN
GREEN
BLUE
BLACK
YELL
OW
RED
LICENSE LIGHT
EUROPE
34
36
Table of Contents
Table of Contents
4
1 Anderson Limited Warranty
6
Purpose of Warranty
7
Warranty Exemptions
7
No Dealer Warranty
7
Anderson's Responsibilities
8
2 Safety
9
Safe Operators
9
Danger Zone
9
Secure Attachment to the Tractor
9
Dangerous Situations
9
Prevention
9
Safe Maintenance and Repair
9
Hydraulic Oil
10
Risk of Electrocution
10
Traveling Safely on Public Roads
10
3 General Characteristics and Specifications
11
Design
11
Dimensions and Weight
11
Standard Components
12
Optional Components
12
4 Adjustment Procedures
13
Installing the Trailer on the Tractor
13
Adjusting the Loading Arm
13
Adjusting the Bale Guides
14
Pusher Adjustment
15
5 Operation
16
Commands
16
Telescopic
16
Pusher
16
Loading Arm
16
Start-Up
17
Loading Bales
17
Unloading the Trailer
20
6 Maintenance
21
Safety Stands
21
Tire Pressure
21
Wheel Nuts Tightening
21
Grease Gun Lubrication
21
Other Lubrication Points
24
Cleaning and Other Maintenance
24
Storage
24
7 Troubleshooting: Problems and Solutions
25
8 Quick Start-Up
27
Installation on the Tractor
27
Loading the Bales
27
Unloading the Bales
27
Table of Contents
31
Hydraulic Diagram
32
Electrical Diagram
36
Loading Arm / Loading Arm Cylinder
37
Tandem
39
Frame / Unload Cylinder
42
Tongue
44
Platform
47
Feet Bale Kit (Option)
48
Tire (Option)
61
Tongue /Hand /Security (Option)
62
Big Fork (Option)
64
Wheel Chock (Option)
66
4
Based on 1 rating
Ask a question
Give review
