Anderson TRB-2000 User Manual
4
of 1
of 1 rating
68 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :
service
@grpanderson.
com

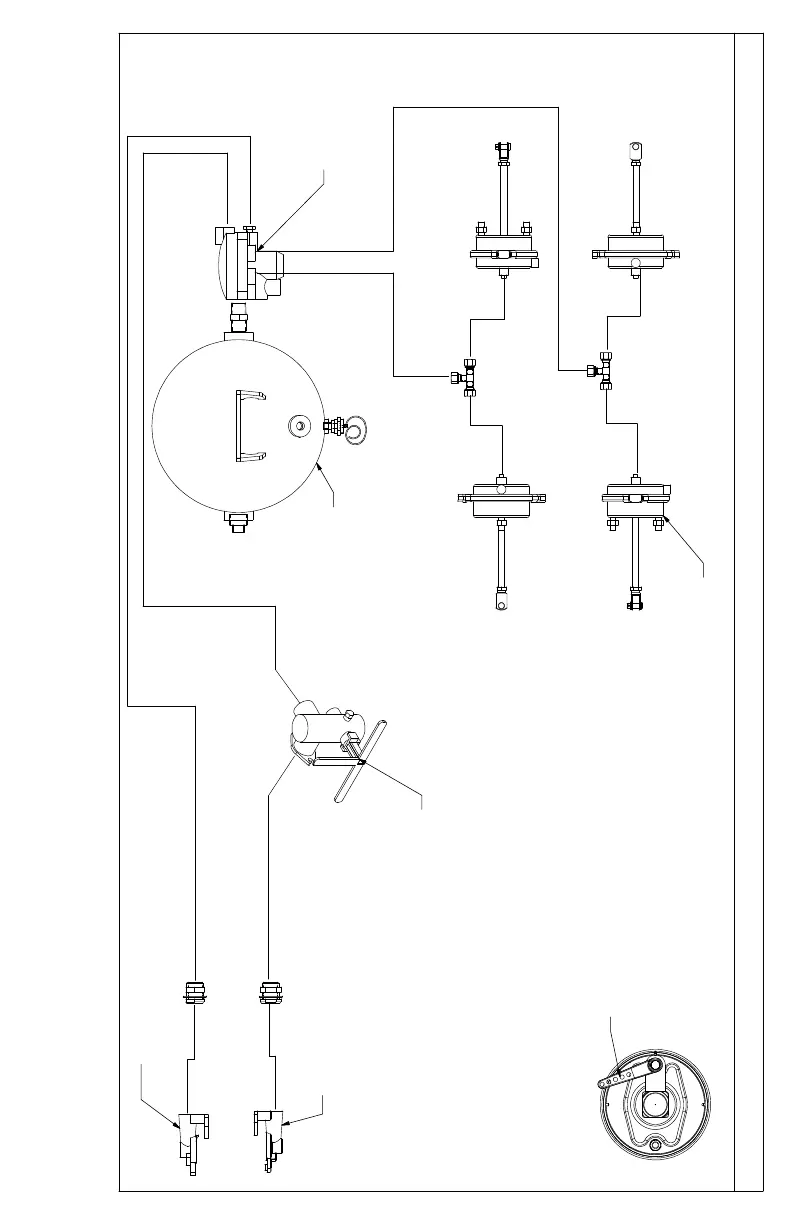

SUPPLY LINE - RED
CONTROL LINE - BLU
E
MANUAL EMPTY LOAD VALVE
RELAY VALVE
AIR TA
NK (40
GAL
)
BRAKE CHAMBERS
BRAKE LEVER POSITION :
TRB1
000 = 12
5 MM (2N
D)
TRB1
400-200
0 = 1
50 MM
(3RD)
PARKING BRAKE (WIRE)
200 MM (5TH)
10 - AIR BRAKE DIAGRAM
55
57
Table of Contents
Table of Contents
4
1 Anderson Limited Warranty
6
Purpose of Warranty
7
Warranty Exemptions
7
No Dealer Warranty
7
Anderson's Responsibilities
8
2 Safety
9
Safe Operators
9
Danger Zone
9
Secure Attachment to the Tractor
9
Dangerous Situations
9
Prevention
9
Safe Maintenance and Repair
9
Hydraulic Oil
10
Risk of Electrocution
10
Traveling Safely on Public Roads
10
3 General Characteristics and Specifications
11
Design
11
Dimensions and Weight
11
Standard Components
12
Optional Components
12
4 Adjustment Procedures
13
Installing the Trailer on the Tractor
13
Adjusting the Loading Arm
13
Adjusting the Bale Guides
14
Pusher Adjustment
15
5 Operation
16
Commands
16
Telescopic
16
Pusher
16
Loading Arm
16
Start-Up
17
Loading Bales
17
Unloading the Trailer
20
6 Maintenance
21
Safety Stands
21
Tire Pressure
21
Wheel Nuts Tightening
21
Grease Gun Lubrication
21
Other Lubrication Points
24
Cleaning and Other Maintenance
24
Storage
24
7 Troubleshooting: Problems and Solutions
25
8 Quick Start-Up
27
Installation on the Tractor
27
Loading the Bales
27
Unloading the Bales
27
Table of Contents
31
Hydraulic Diagram
32
Electrical Diagram
36
Loading Arm / Loading Arm Cylinder
37
Tandem
39
Frame / Unload Cylinder
42
Tongue
44
Platform
47
Feet Bale Kit (Option)
48
Tire (Option)
61
Tongue /Hand /Security (Option)
62
Big Fork (Option)
64
Wheel Chock (Option)
66
