Anet A8 Plus - Page 14

Step 3
No.
Name
Qty.
1
M4*14
8
2
T – nut
8

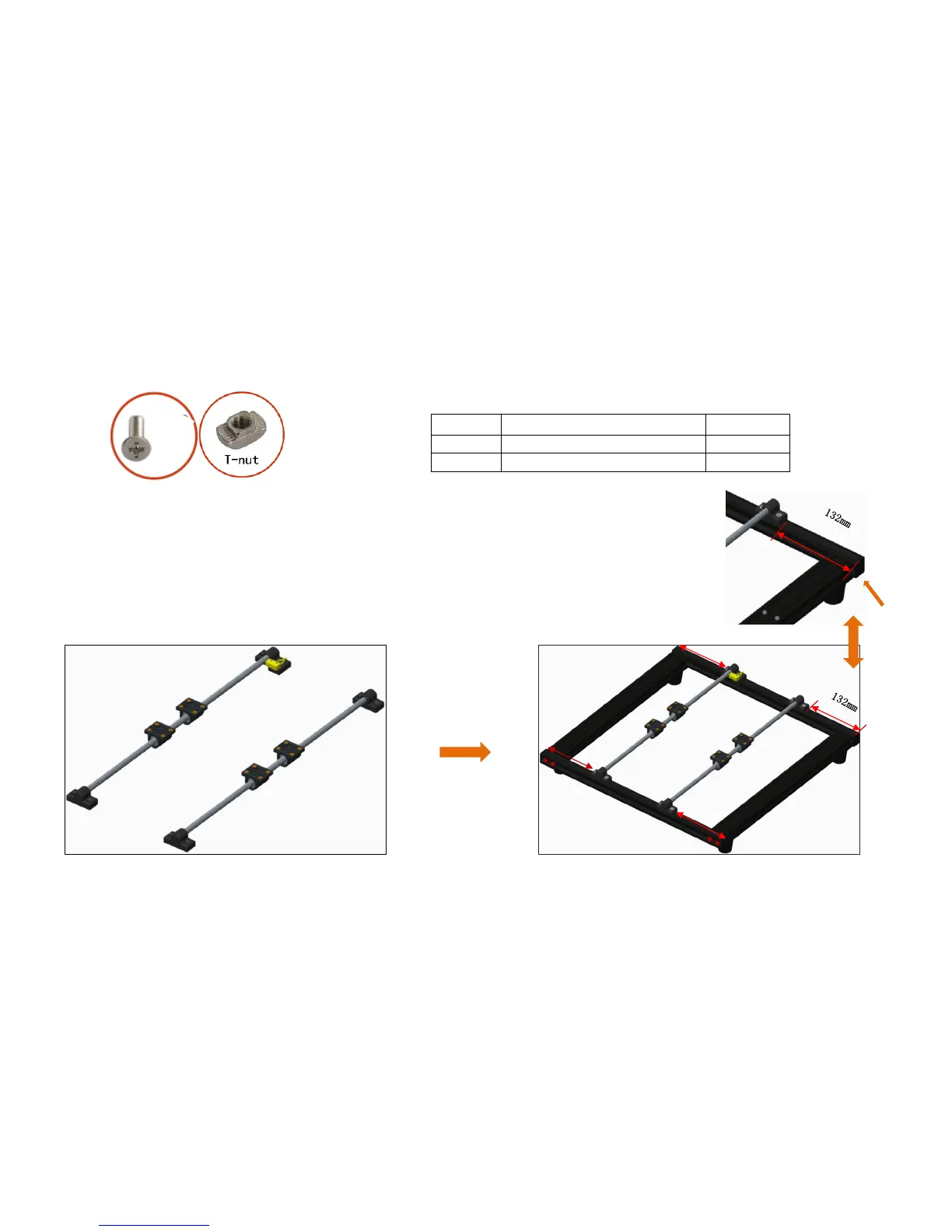

Attention: The size of the double arrow in the drawing is
132 mm ( the distance from the center of the leading rod fixed
block to the edge of the profile ), which is controlled
during assembly.
M4*14
Before assembly
After assembly
End cap
