Anet A8 Plus - Page 16

Step 5
No.
Name
Qty.
1
Y axis belt bearing fixed kit
1
2
M4*8 Socket hexagon screw
2
3
T-nut M4
2

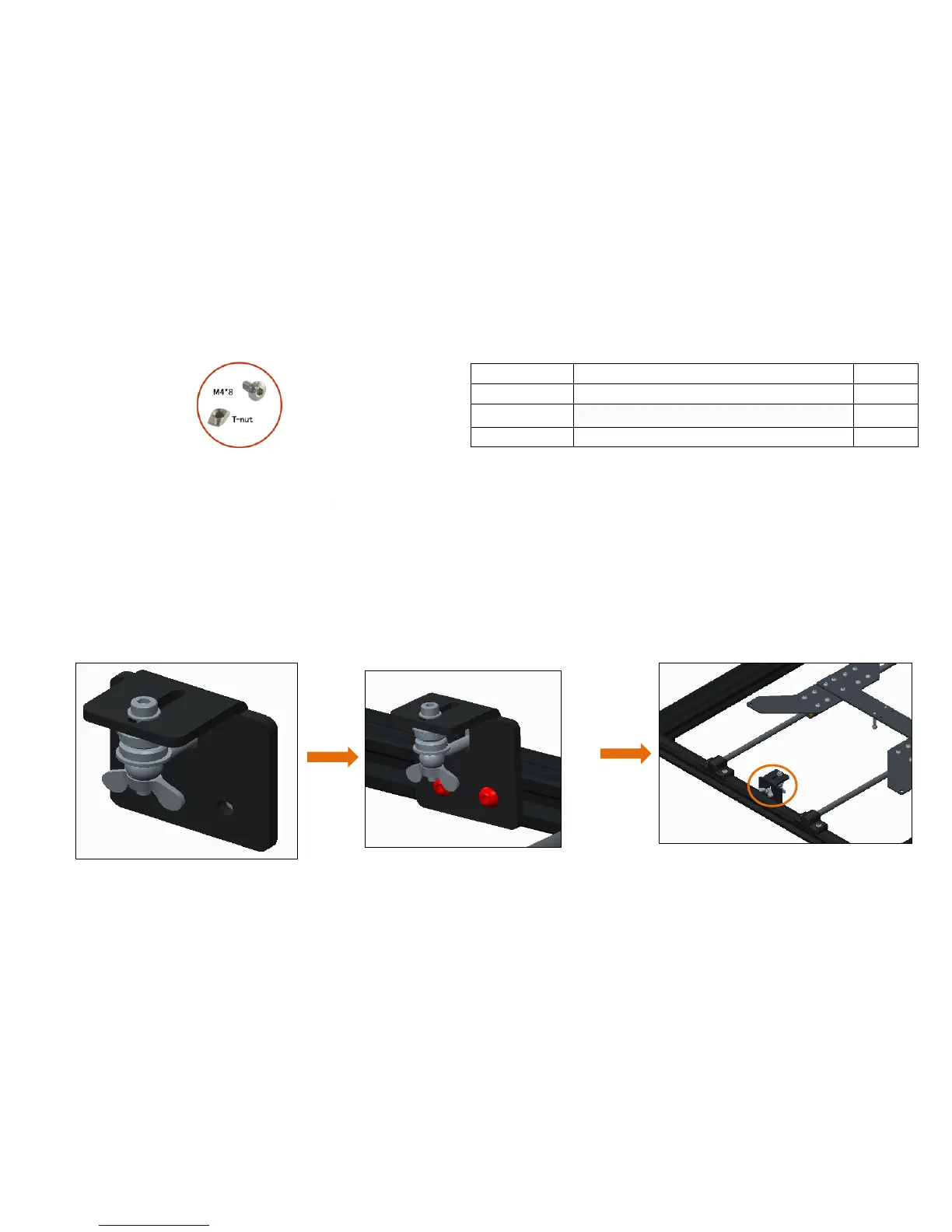

1.ease fix it in the center of front X axis aluminum profile.
 2.M4 * 8 screws pass through the Y axis motor fixed plate, screw on the T - nut
( entering 2 - 3 thread teeth ), put it into the X - axis profile slot, tighten
the screw ( the nut will rotate 90 degrees during this process ), and corner bracket
will be fixed.







o
o
Before assembly
After assembly
