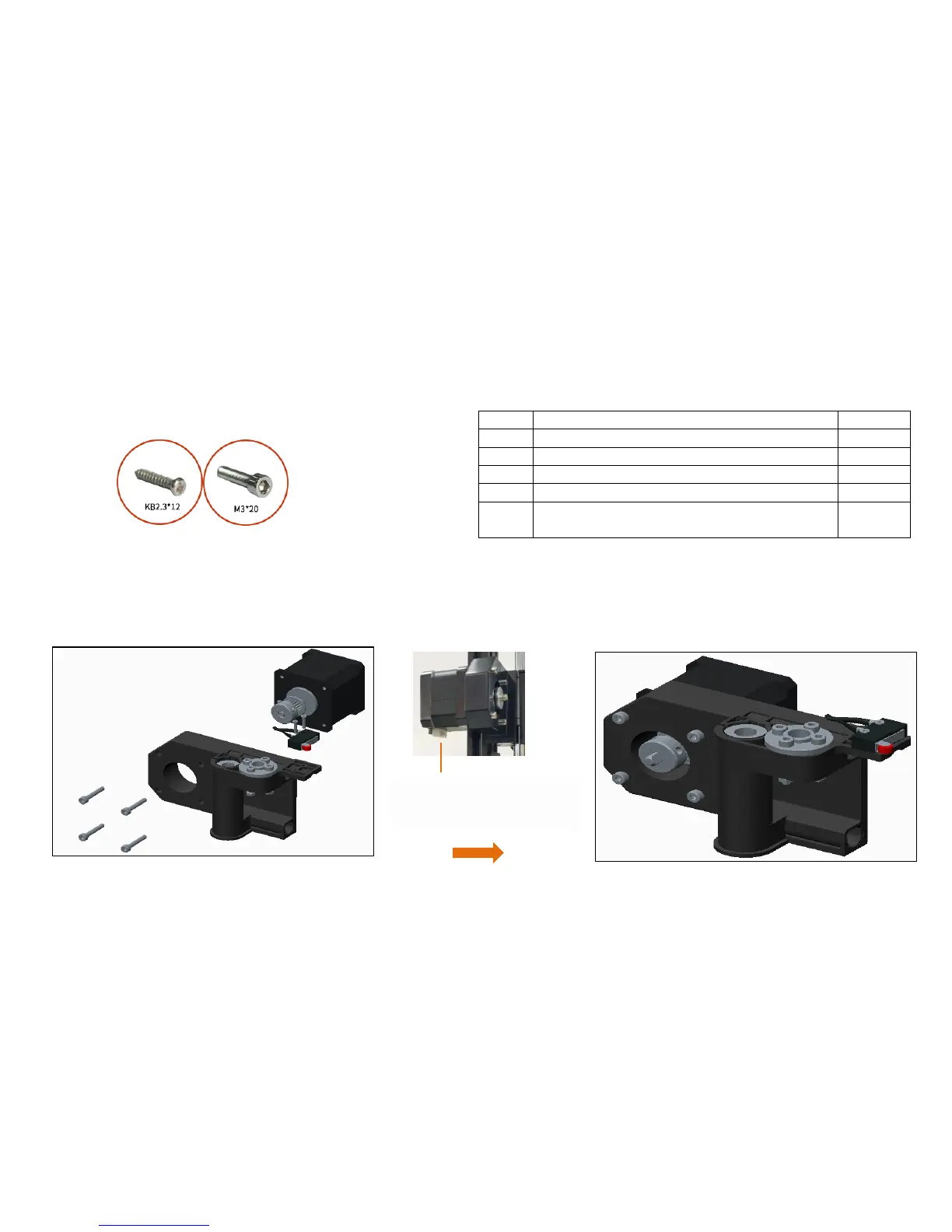

Anet A8 Plus - Page 20

Step 9
No.
Name
Qty.
1
Right Z axis screw rod nut support
1
2
X axis motor kit
1
3
Limit switch with pulley
1
4
Socket hexagon cylindrical head screw M3*20
4
5
Cross recessed countersunk screw
KB2.3*12
2
The motor connection port is facing
down, as shown in the figure
Before assembly
After assembly
