Step 14
No.
Name
Qty.
1
Fan fixed plate
1
2
Fan
1
3
Air blower
1
4
Wind mouth
1
5
M3*15 Socket hexagon screw M3*15
4
6
Ø3 Gasket
4
7
Socket hexagon screw M3*6
2
8
Socket hexagon screw M3*18
2
M3*6
M3*15+ φ3
M3*18

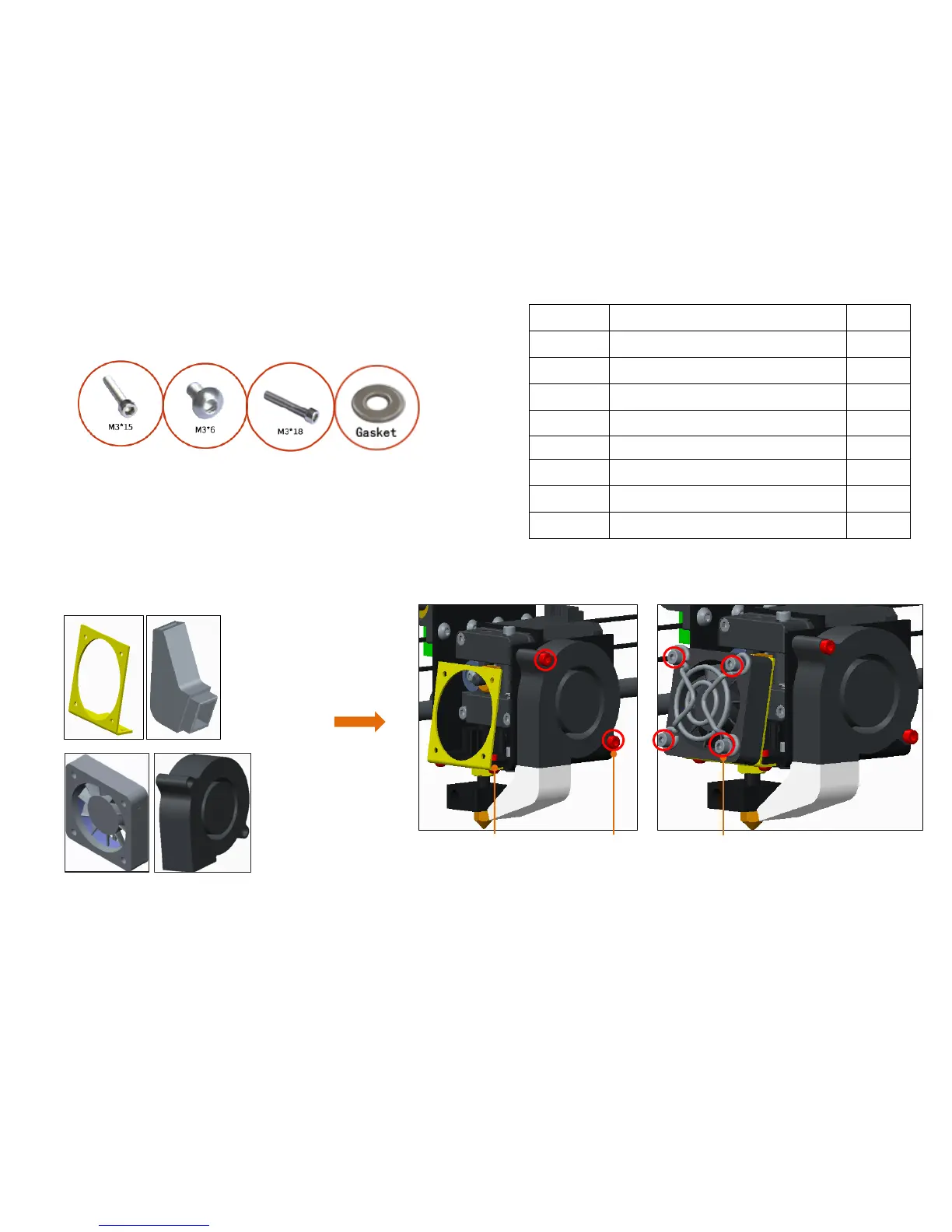

Fix the fan fixed plate in the L-shaped aluminum holder with 2 M3*6 screw
Before assembly
After assembly
