Anet A8 Plus - Page 26

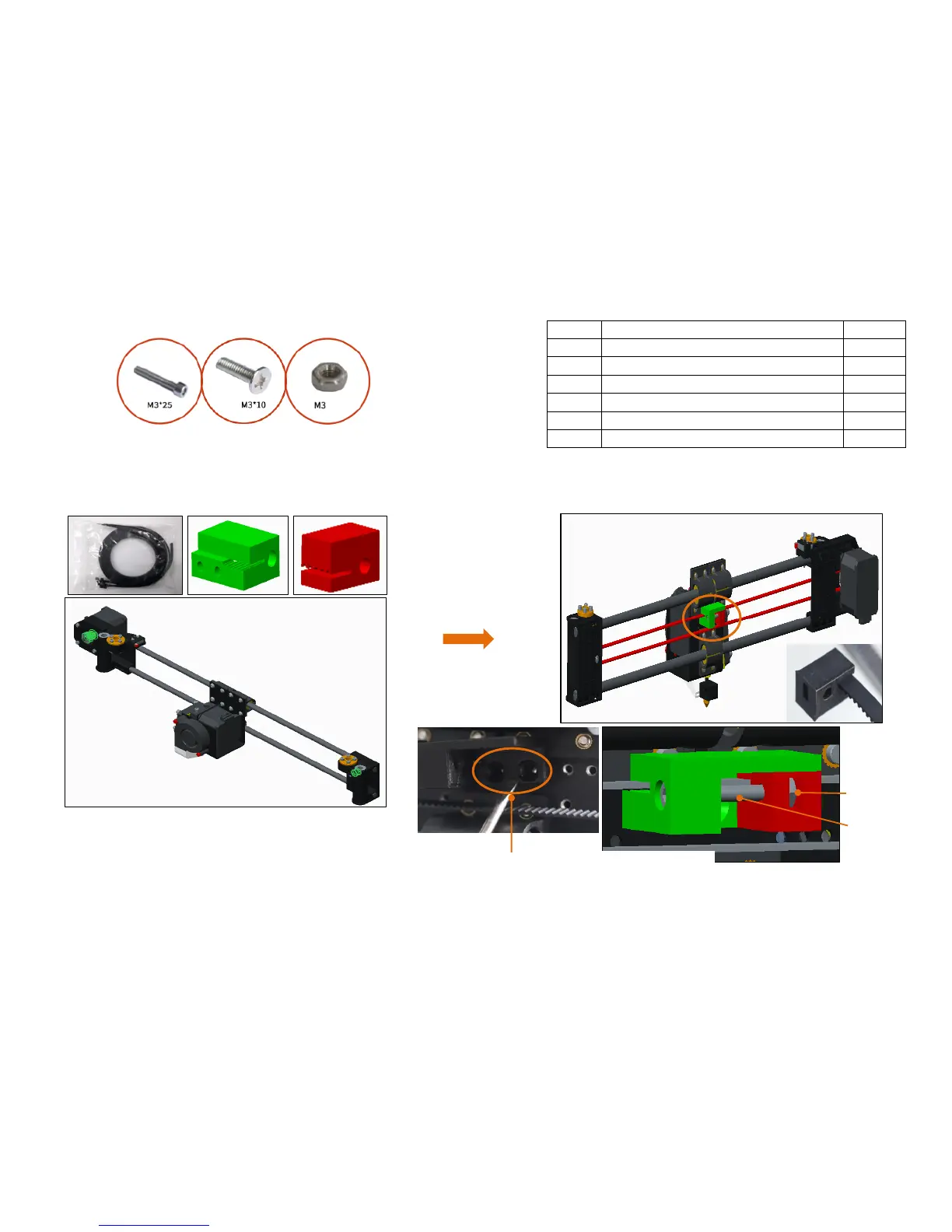

Step 15
No.
Name
Qty.
1
Belt
1
2
Belt adjusting fixing block
1
3
Belt adjusting sliding block
1
4
M3*25 Socket hexagon screw
1
5
M3 nut
1
6
M3*10 Countersunk screw
2
Flanged Bearing
Gear
Connect the gear and flanged bearing with a belt ,and sleeve the
belt adjusting fixing block and sliding block, after fixing ,press
the belt to see if it is loose.
M3 nut
M3*25
The fixing block is fixed with M3*10 countersunk
screw
Before assembly
After assembly
